19
Assembly (of packaged shotgun)
Before carrying out any type of inter-
vention on the shotgun, always make
sure that the chamber, carrier, and
magazine are completely empty!
(Carefully read the instructions for loading
and unloading the shotgun).

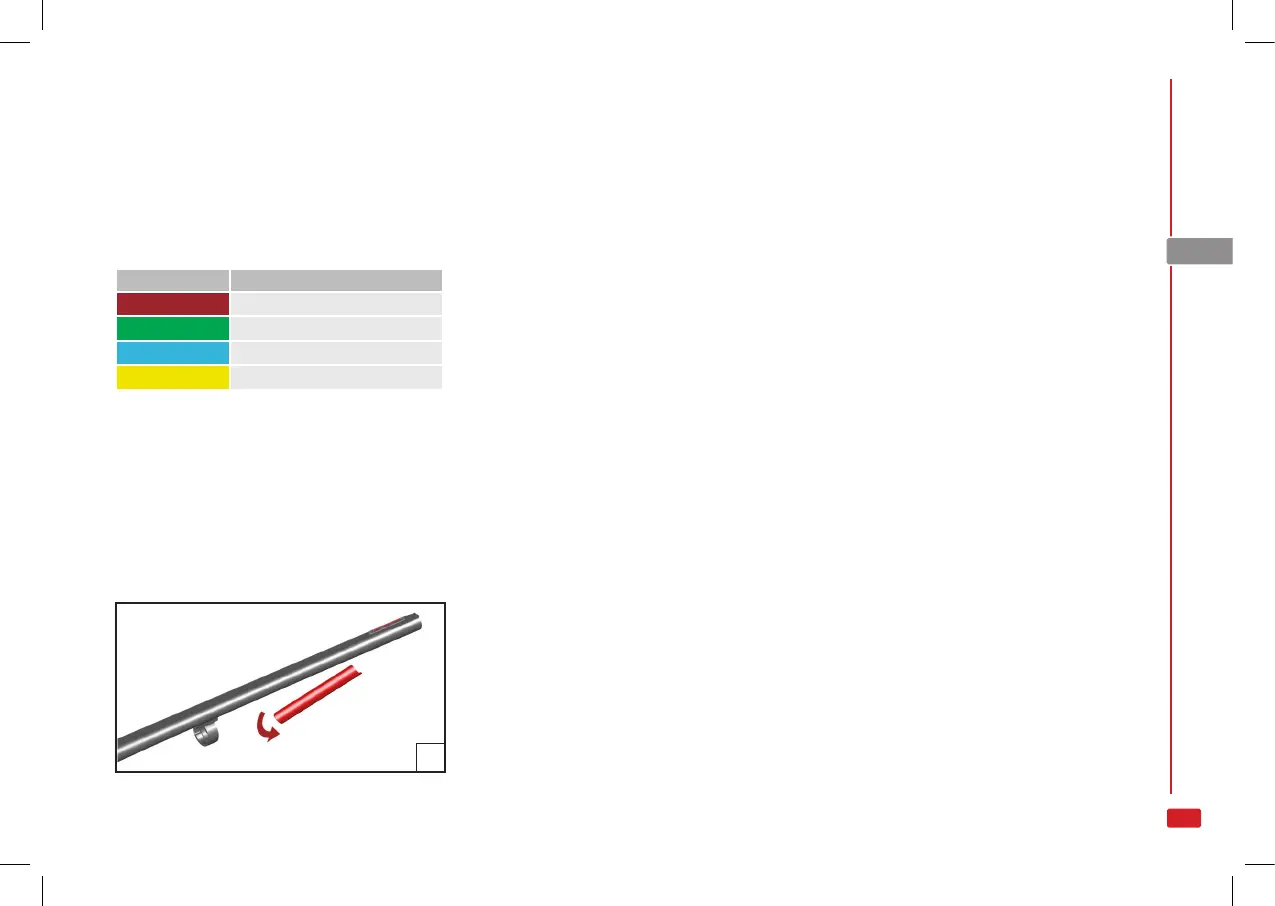

Table: Key to arrow colours
colour description
red disassembly sequence
green assembly sequence
blue indication
yellow action
Package contents:
A) stock-receiver-bolt-fore-end
assembly
B) barrel-breech assembly
C) magazine tube extension assembly.
Warning: Remove the plastic barrel
cover before using the shotgun (g. 1).
1. Loosen the fore-end cap.
2. Grip the stock-receiver-bolt-fore-end
assembly in one hand and with the oth-
er, move the fore-end to open the bolt.
Warning: If the bolt does not remain
open, use the bolt lever, and then repeat
the operation. During successive opera-
tions, the bolt must be fully assembled
and housed in the receiver, remaining in
the open position (fully back).
3. Grip the stock-receiver-bolt-fore-end
assembly in one hand, and with the oth-
er, take the barrel-breech assembly,
then slide the ring on the magazine
tube until the breech extension can
slide over receiver.
4. When the barrel (breech) extension is
up against the bolt, carefully bring the
barrel (rear sight or rib) into line with the
sight line on the receiver.
5. With the barrel extension resting on the
bolt and the locking head in the seat in-
side the barrel extension, push the bar-
rel into the receiver: a metallic click will
signal that the barrel is correctly posi-
tioned.
Important: Always make sure that the
barrel extension does not hit up
against the bolt locking head.
6. Insert the magazine follower into the
magazine tube.
7. Take the magazine spring and insert
one end into the magazine tube.
8. Take the fore-end cap and t it to the
magazine extension; insert the maga-
zine extension cap and slide the as-
sembly onto the free end of the maga-
zine spring, until it is fully inserted into
the extension.
9. Screw the cap-extension all the way
onto the magazine tube, locking the
barrel-breech-fore-end assembly fully
into place.
10. Slide the barrel extension cross pin
assembly onto the magazine exten-
sion, until it is in place on the seat, and
lock it into this position by tightening
the xing screw (recommended
torque: 4 Nm).
Important: During this stage of the as-
sembly, keep the outer edges of the
pin slightly widened so that it can slide
over the magazine extension tube
without scraping it.
11. Close the bolt of the shotgun by press-
ing the carrier button and engaging
the fore-end.
