The shotgun is supplied with a “drop
change kit” to adjust the original drop the
shotgun is supplied with. The kit consists
of two stock locking plates (in steel), plus
four drop change shims (plastic).
The kit enables you to obtain 5 different
drop patterns (as specied in the table)
and two different casts (right hand or left
hand).
Each unit is marked with the correspond-
ing drop or cast letter.
Check to ensure your stock drop ts you
perfectly, or whether it is either too high or
too low for you.
If it is too low, you need to select the pre-
vious adjustment set in alphabetical order
(e.g. if the factory-tted shim is marked
with a “C”, you must select the “B”, to-
gether with the corresponding stock lock-
ing plate).

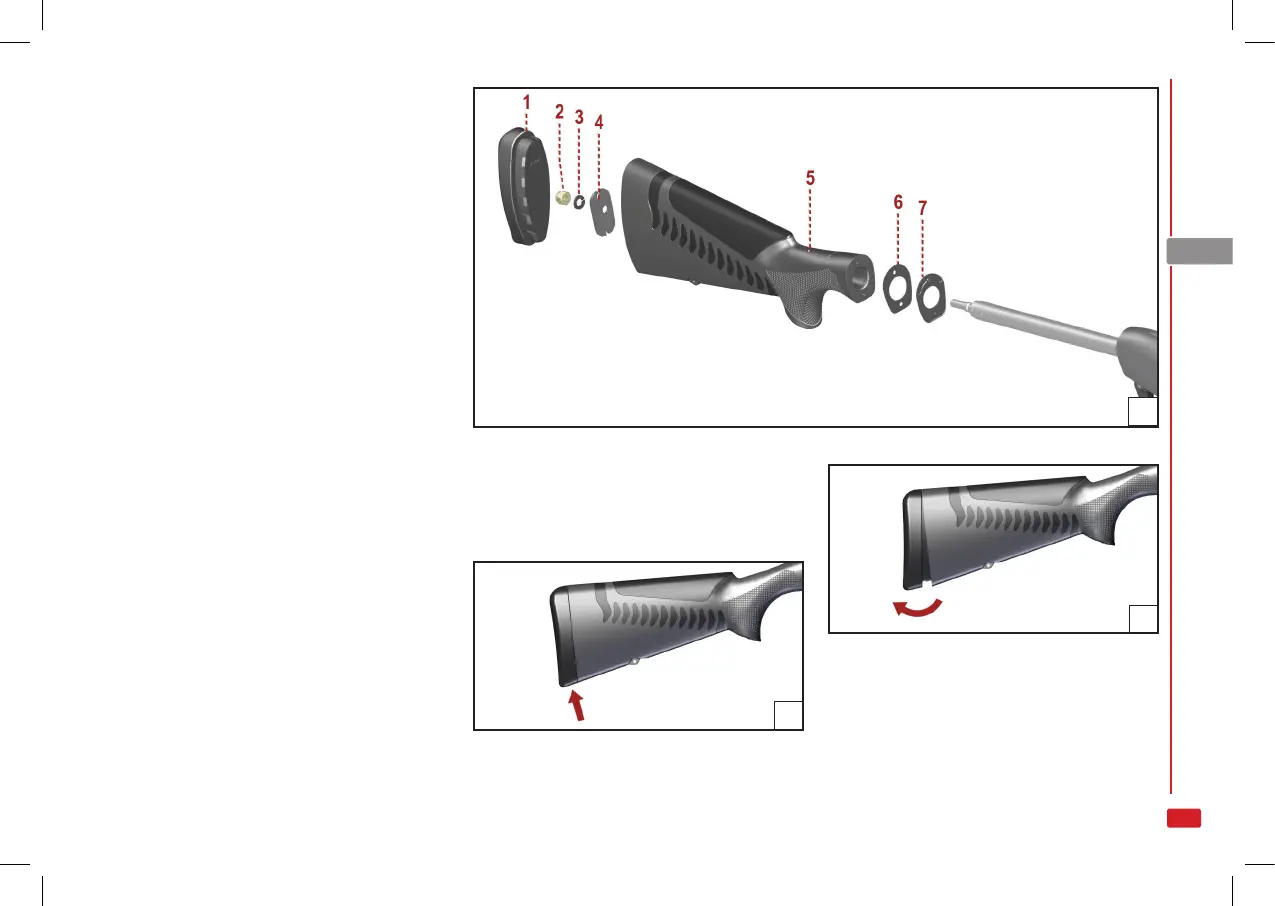

The replacement procedure is very simple
(g. 4).
1. Press down on the recoil pad “1” and at
the same time, slide it upwards (g. 5-6).
2. Loosen the stock retaining nut “2” (13
mm hex-head wrench).
3. Slide the nut “2”, the washer “3”, the
stock locking plate “4”, the stock “5”, the
cast shim “6” and the drop shim “7” from
the recoil spring tube.
4
5
6
