Benewake TF02-Pro Product Manual

SJ-PM-TF02-Pro Product Manual Alpha
Benewake (Beijing) Co. Ltd.
Page6

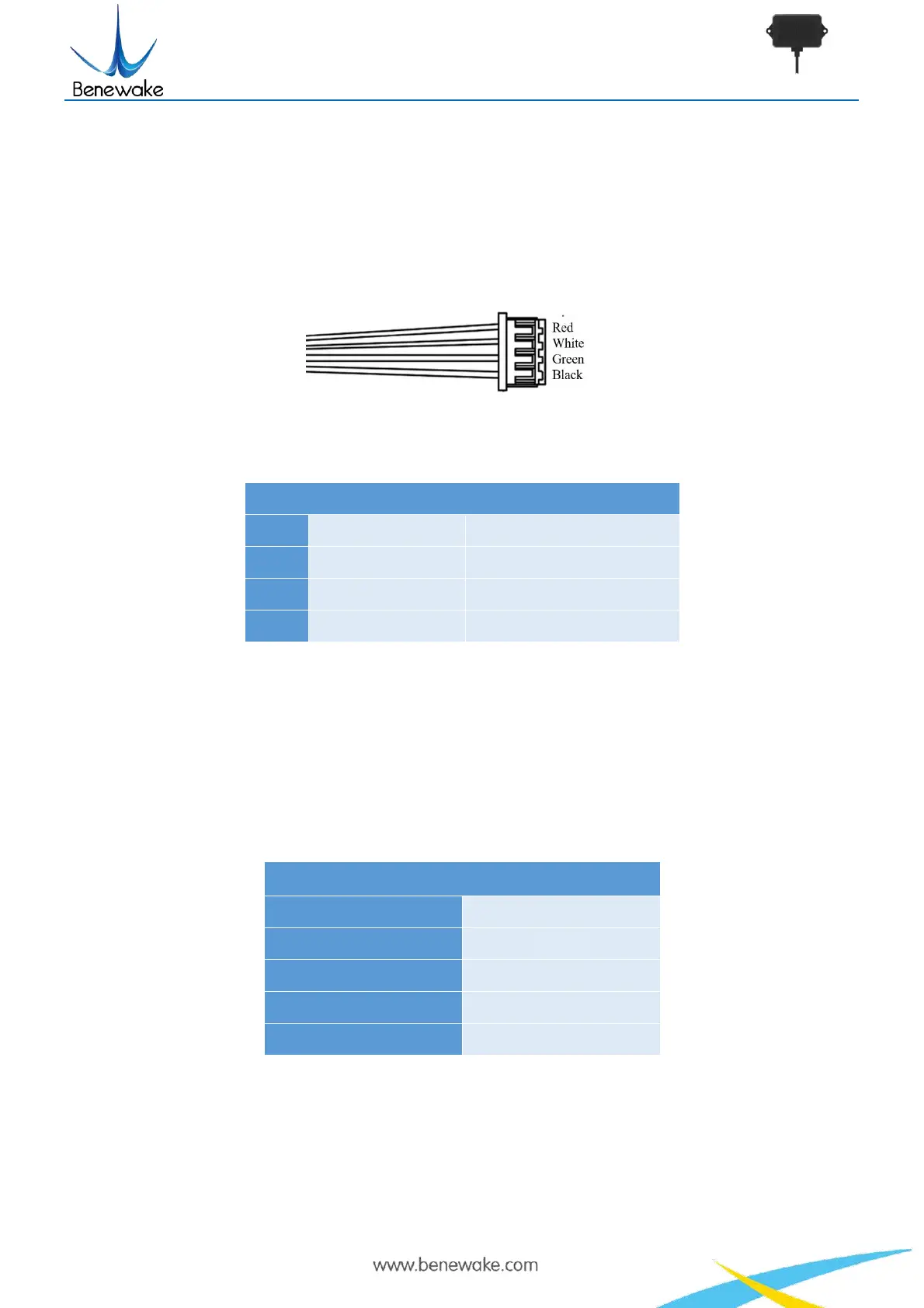

2 Physical Interface
2.1 Description about Line Sequence
Type of external connecting terminal of TF02-Pro is 1.25-4p(Molex510210400).
Table 1 The Function and Connection Description of each pin
Color
Function
Comment
Red
+5V
Power supply
White
RXD/SDA
Receiving/Data
Green
TXD/SCL
Transmitting/Clock
Black
GND
Ground
2.2 Electrical Characteristics
This product has no overvoltage nor polarity protection, so please make sure that connection and power
supply are normal.
Table 2 Major Electrical Parameters of TF02-Pro
Description
Parameter value
Supply voltage
5V~12V
Average current
≤200mA
Peak current
300mA
Average power
≤1W
Communication level
LVTTL（3.3V）
