Benewake TFmini-S User Manual

SJ-PM-TFmini-S A01 Product Manual
Benewake (Beijing) Co. Ltd.
Page9

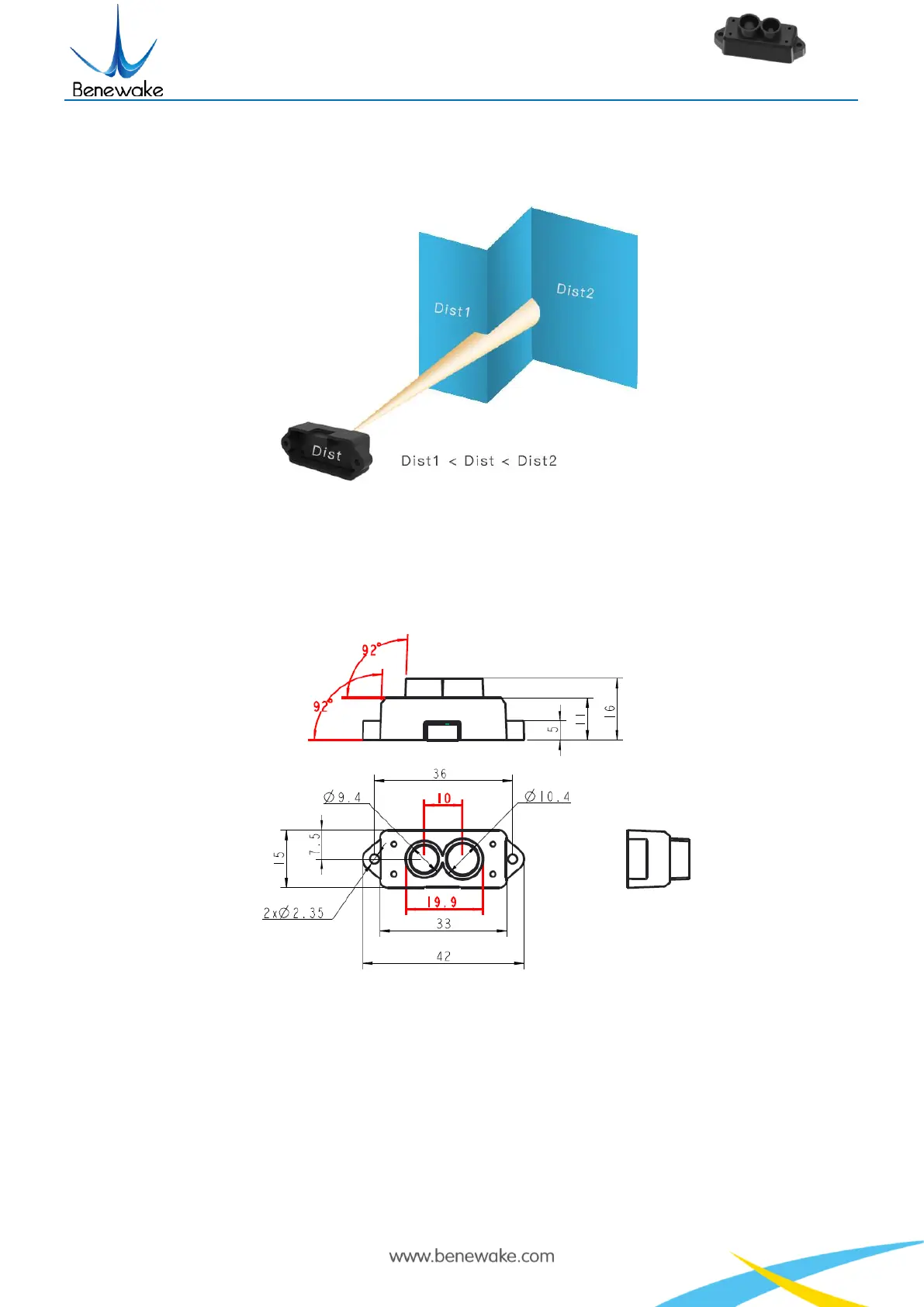

If the light spot reaches two objects with different distances, as shown in Figure 2, the output distance value
will be a value between the actual distance values of the two objects. For a high accuracy requirement in
practice, the above situation should be noticed to avoid the measurement error.
Figure 2 Distance Measurement in the case of Two Objects of Different Distances
3 Appearance and Structure
3.1 Product Appearance and Structure
Figure 3: Dimension of TFmini-S(Unit:mm)

Benewake TFmini-S Specifications

General

Product color	Black
Detection angle	2 °
Scrambling function	Laser

Weight and Dimensions

Depth	42 mm
Width	15 mm
Height	16 mm
Weight	5 g
