Beninca AU.TR - Selectable Function Parameters; Programming Menus and Dwell Times; Courtesy Light Duration Settings

8
End of programming
Dip-switch 1÷4= Off/Off/Off/Off
End of the programming phase and storage of changes in
memory.

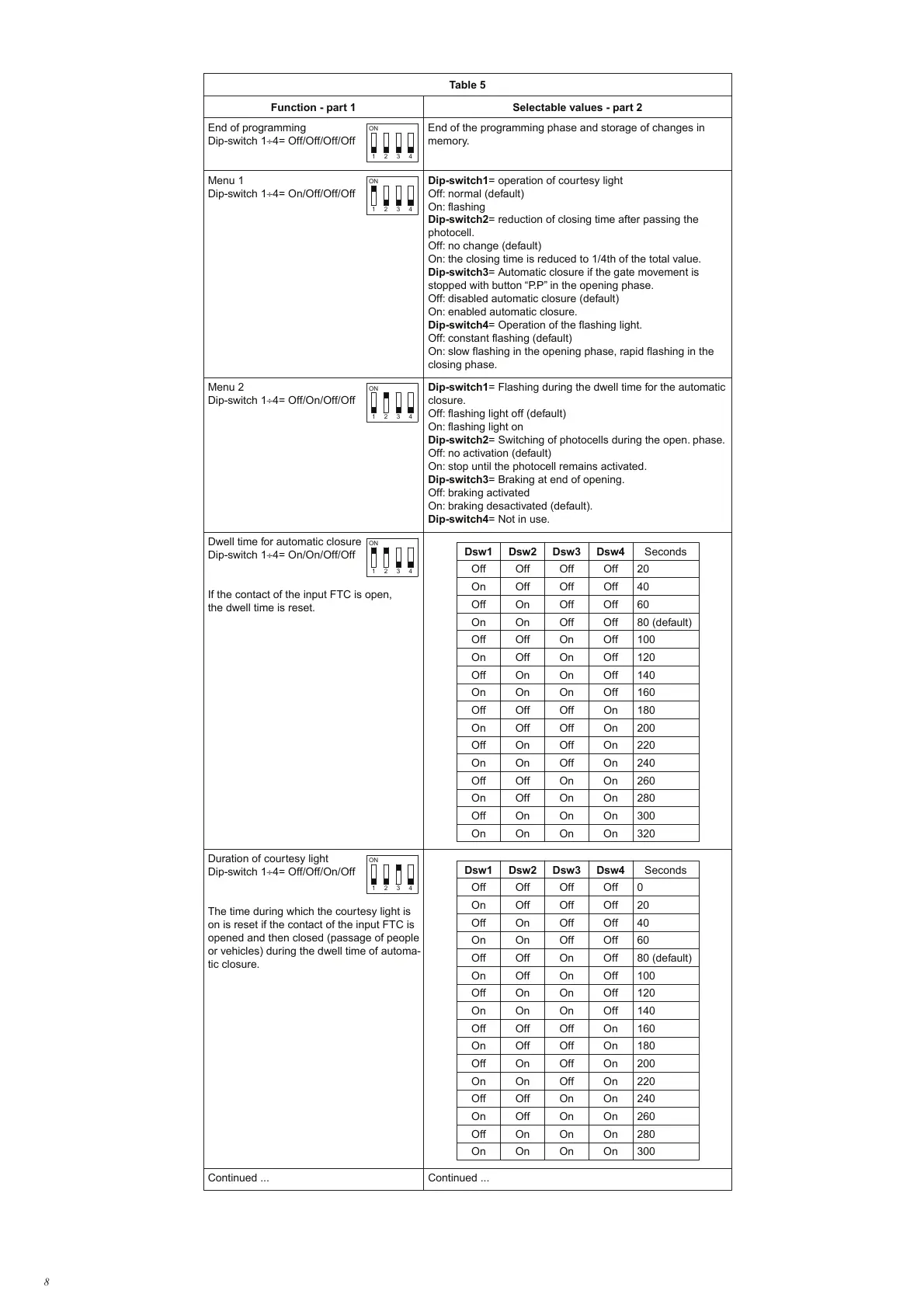

Table 5
Function - part 1 Selectable values - part 2
ON
1 2 3 4
Menu 1
Dip-switch 1÷4= On/Off/Off/Off
Dip-switch1= operation of courtesy light
Off: normal (default)
On: flashing
Dip-switch2= reduction of closing time after passing the
photocell.
Off: no change (default)
On: the closing time is reduced to 1/4th of the total value.
Dip-switch3= Automatic closure if the gate movement is
stopped with button “P.P” in the opening phase.
Off: disabled automatic closure (default)
On: enabled automatic closure.
Dip-switch4= Operation of the flashing light.
Off: constant flashing (default)
On: slow flashing in the opening phase, rapid flashing in the
closing phase.
ON
1 2 3 4
Menu 2
Dip-switch 1÷4= Off/On/Off/Off
Dip-switch1= Flashing during the dwell time for the automatic
closure.
Off: flashing light off (default)
On: flashing light on
Dip-switch2= Switching of photocells during the open. phase.
Off: no activation (default)
On: stop until the photocell remains activated.
Dip-switch3= Braking at end of opening.
Off: braking activated
On: braking desactivated (default).
Dip-switch4= Not in use.
ON
1 2 3 4
Dwell time for automatic closure
Dip-switch 1÷4= On/On/Off/Off
If the contact of the input FTC is open,
the dwell time is reset.
Continued ... Continued ...
Dsw1
ON
1 2 3 4
Dsw2 Dsw3 Dsw4 Seconds
Off
Off Off Off 20
On
Off Off Off 40
Off
On Off Off 60
On On Off Off 80 (default)
Off
Off On Off 100
On Off On Off 120
Off
On On Off 140
On
On On Off 160
Off
Off Off On 180
On
Off Off On 200
Off
On Off On 220
On
On Off On 240
Off
Off On On 260
On
Off On On 280
Off On On On 300
On On On On 320
Duration of courtesy light
Dip-switch 1÷4= Off/Off/On/Off
The time during which the courtesy light is
on is reset if the contact of the input FTC is
opened and then closed (passage of people
or vehicles) during the dwell time of automa-
tic closure.
ON
1 2 3 4
Dsw1 Dsw2 Dsw3 Dsw4 Seconds
Off Off Off Off 0
On
Off Off Off 20
Off
On Off Off 40
On
On Off Off 60
Off Off On Off 80 (default)
On
Off On Off 100
Off
On On Off 120
On On On Off 140
Off
Off Off On 160
On
Off Off On 180
Off
On Off On 200
On
On Off On 220
Off
Off On On 240
On
Off On On 260
Off
On On On 280
On On On On 300
