5

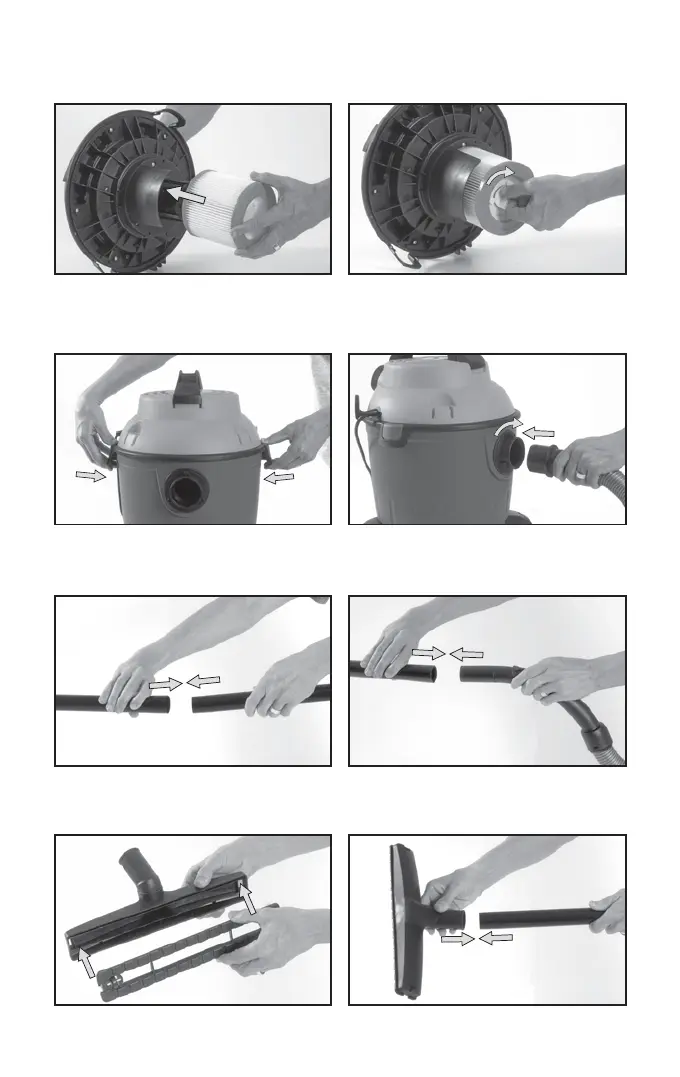

2. Check that the Microparticle Filter (16) is securely installed in place as shown below:
4. Insert the Flexi-Hose (10) into the Vacuum
Function Hose Port (5) and turn clockwise to
lock in place as shown below:
3. Replace the Motor Unit and push the Locking
Clips inwards to lock closed as shown
below:
8. Attach the Floor Nozzle to the end of the
Extension Wand as shown below:
6. Attach the 2-Piece Extension Wand (12) to
the Flexi-Hose Handle (11) as shown below:
7. Attach the Dry Floor Nozzle Attachment (15)
to the Floor Nozzle (13) as shown below:
5. Join the 2-Piece Extension Wand (12)
together as shown below:
