Dimensions
Projector dimensions
490 mm (W) x 159 mm (H) x 380 mm (D)

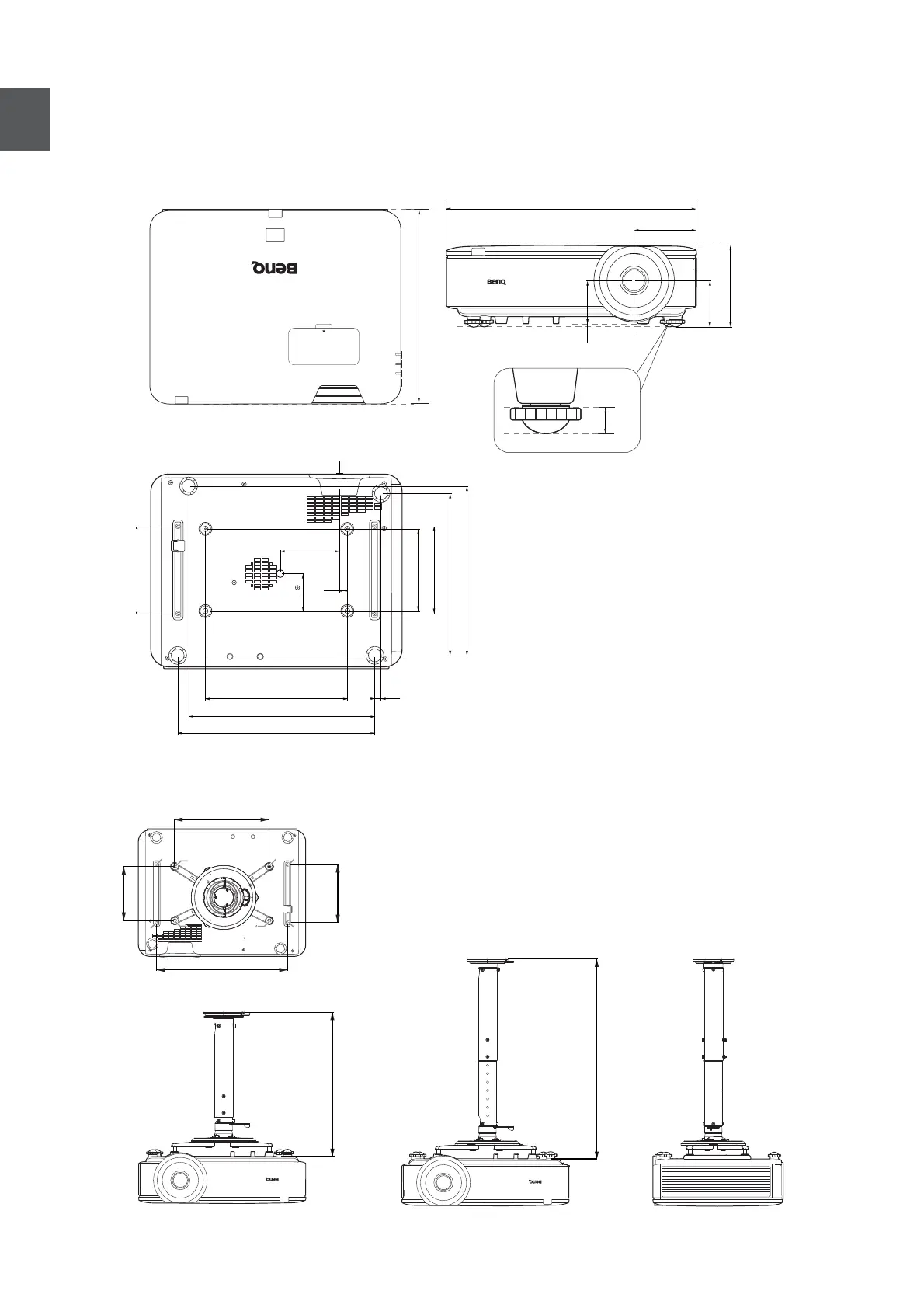

Ceiling mount installation diagram
490
122
159
84.50
90.70
13
380
330
315.8 169.5
115.48
15.29
73.57
12
384
363
277
160
169.5
Unit: mm
A
B B
B
A
A
A
B
277.00
160.00
427.30
591.50
383.00
169.50
A: BenQ ceiling mount CMG3 (5J.JAM10.001)
Ceiling mount screw: M4
(Max. L = 25 mm; Min. L = 20 mm)
B: Third party mounting holes
Screw: M6 (Max. L = 8 mm)
