BenQ MP512 - Page 52

52

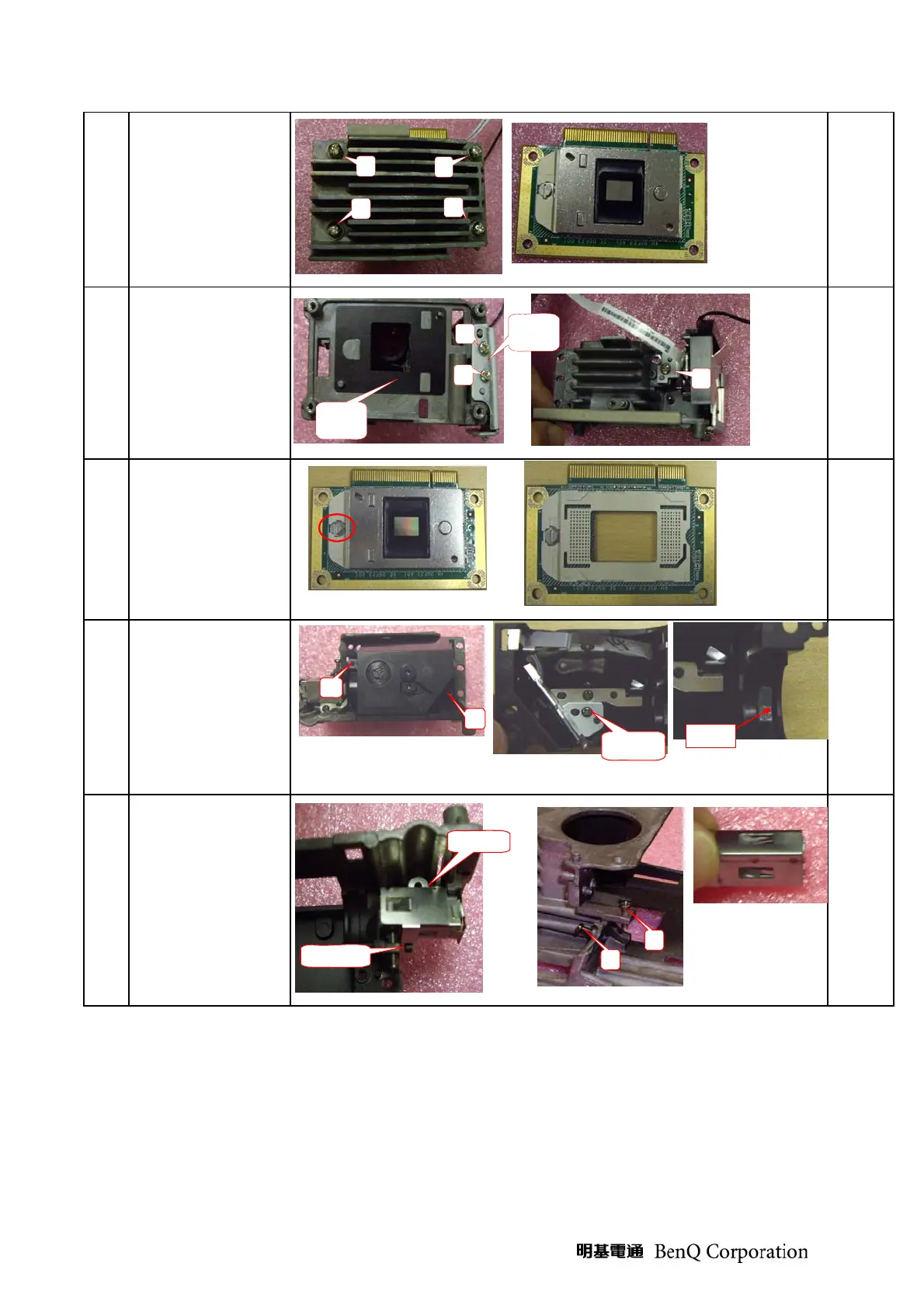

18
Disassemble the screw*4,
and take off the HSINK
and DMD chip with
Chip BD.
screw
driver
19
(1)Disassemble the baffle
DMD.
(2)Disassemble the
screw*3 and take off the
CW module.
screw
driver
20
Rotate to open the switch
on socket, and take off
the DMD chip.
screw
driver
21
(1)Disassemble ILL
module( screw*2).
(2)Take off screw*1, FM
holder, fold mirror, FM
clip*2, clip CM front,
clip CM side and sponge.
screw
driver
22
(1)Disassembly the
screw*2.
(2)Take off the LP
module and LP screw*2.
screw
driver
1
2
3
4
3
screw*1
1
2
sponge
screw*1
screw*1
1
2
1
2
CW
module
baffle
DMD
