BenQ MP512 - Product Disassembly;Assembly

48
Product Disassembly / Assembly

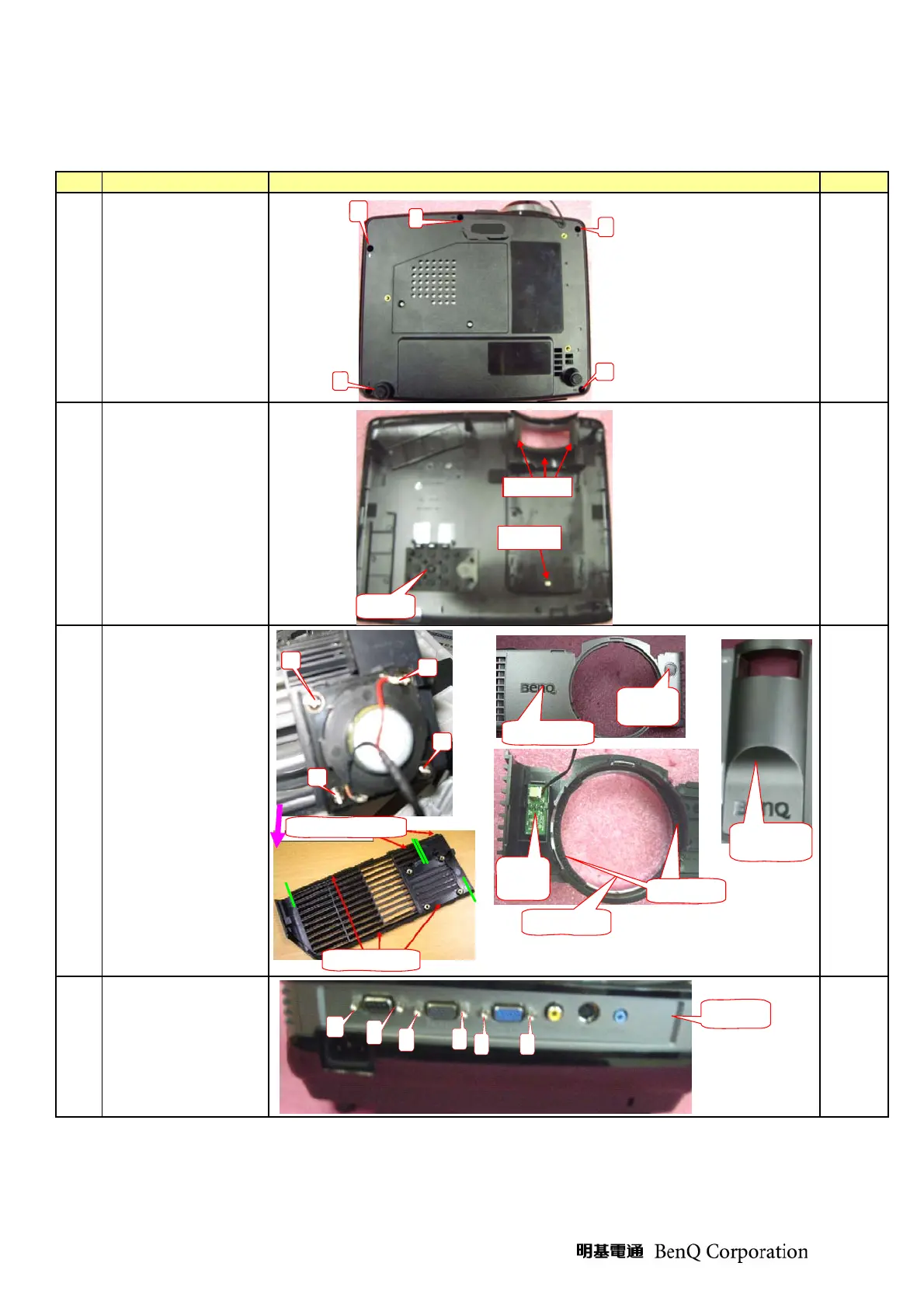

Step Discription Tool
1 Disassemble the screw*5
screw
driver
2
Take off the the IR
sensor wire from
mainboar, then take off
upper case module,
Notice : When taking off
upper case module, don't
draw the IR sensor wire
in case of breaking.
3
Take off the case left
module and the front
case module
4
Disassemble the screw*6,
and take off the rear case.
screw
driver
MP522ST Dismantle SOP
rear case
2
1
3
4
5
keypad
screw*1
sponge*3
BENQ LOGO
upper case
cover
LENS IR
FRONT
FRONT
IR BD
SPONGE*2
RING
FRONT
SPONGE*2
1
2
4
3
big sponge*3
small sponge*2
3
4
2
1
5 6
