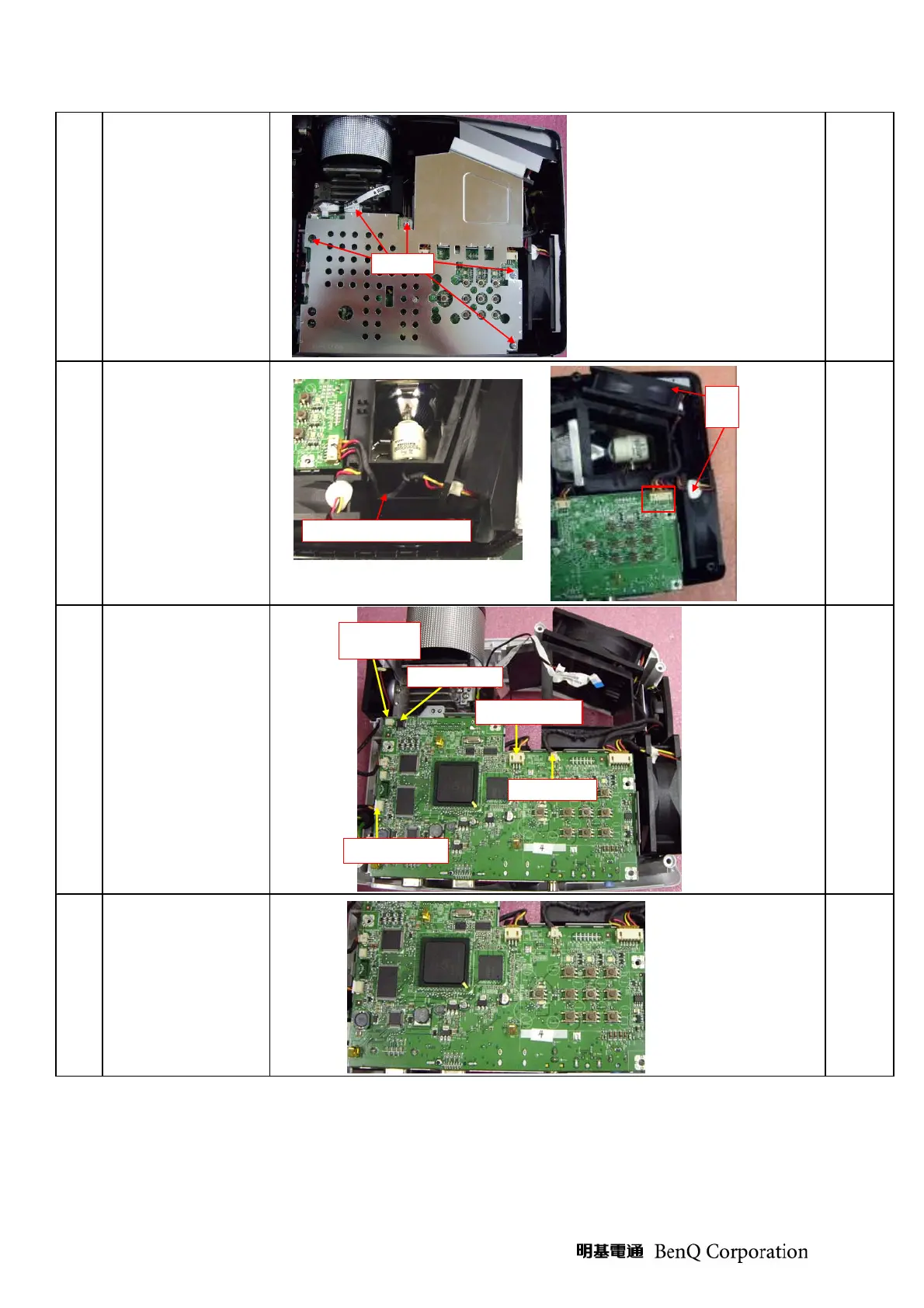

Disassemble the screw*5,
and take off the M/B
shielding.
screw
driver
6
(1)Take off the long wire
(one of twin fan wire),
then disassemble the
twin fan.
(2)Take off the twin fan
wire from M/B.
7
Take off the C/W FPC
wire、 blower fan wire、
C/W sensor wire、
Ballast 5-Pin wire
、
speaker wire form M/B
，take off right cass
module
screw
driver
8
Take off the M/B and
MB SPG-RCA PBR
screw
driver
screw*5
twin
fan
take off this long wire first
blower fan wire
C/W FPC wire
C/W sensor
wire
Ballast 5Pin wire
speaker wire
