Module Assembly Key Point - Optical Engine

1. Assembly Lamp module:

1.1 Washer, Screw, Mesh and Fin Assembly

I. Assemble Washer and Screw to the HLD Lamp (Figure1-1).

II. Assemble “MESH” with Lamp holder .Mesh hooks HLD Lamp first (Figure1-2) and press it

assemble to the right position (Figure1-3).

III. Assemble “FIN” with Lamp holder and lock screw well (Figure 1-4).

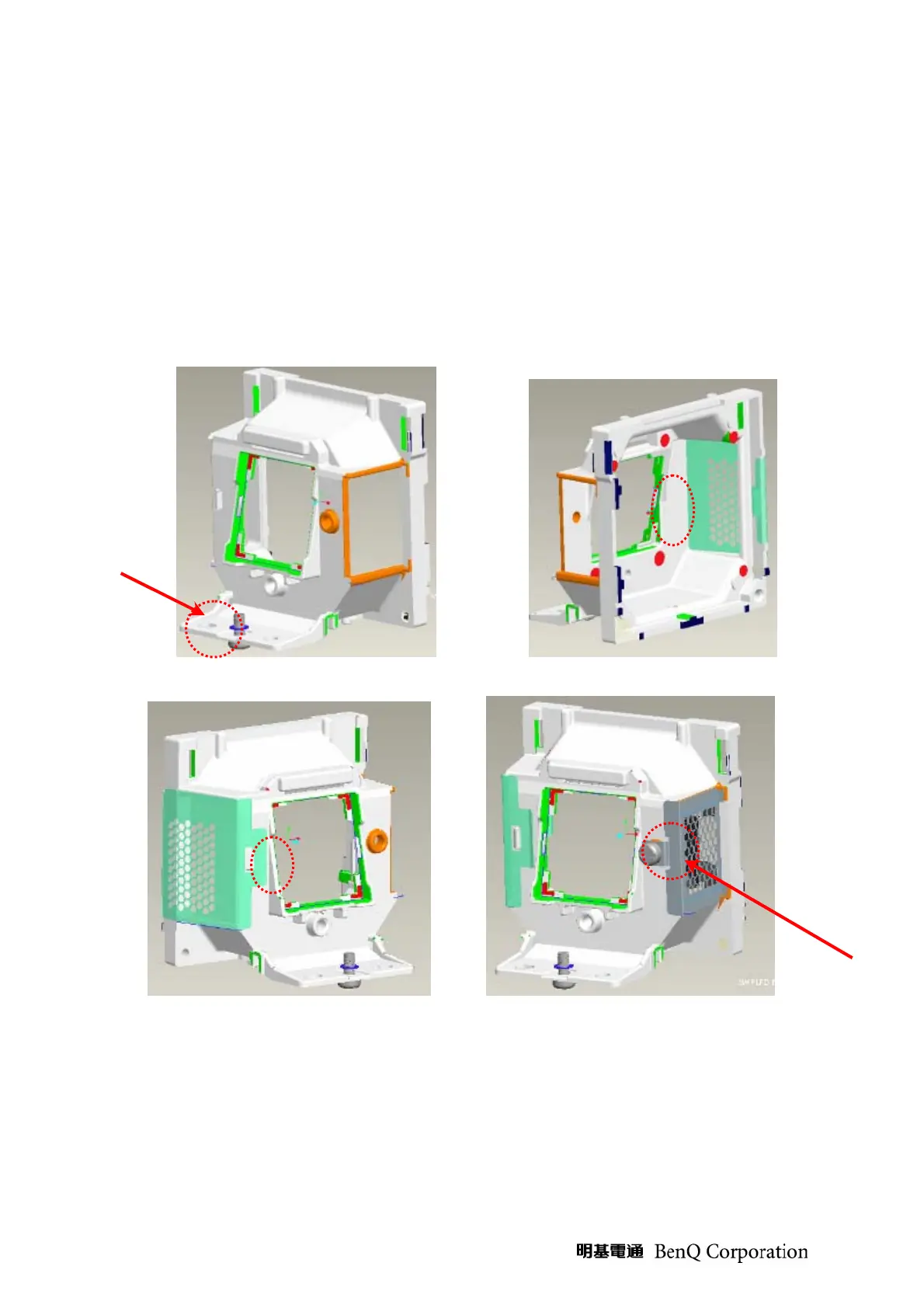

Fig. 1-1 Fig. 1-2

Fig. 1-3 Fig. 1-4

1.2 Front Glass Assembly.

i. Front Glass UV coated surface (marked) must face to Lamp. (Figure 1-6)

ii. F/G must be placed on datum surfaces well. (Figure 1-7)

iii. To make sure F/G Clip inserts with HLD lamp and lock screw well. (Figure 1-8,1-9)
