BenQ MP512 - Page 50

50

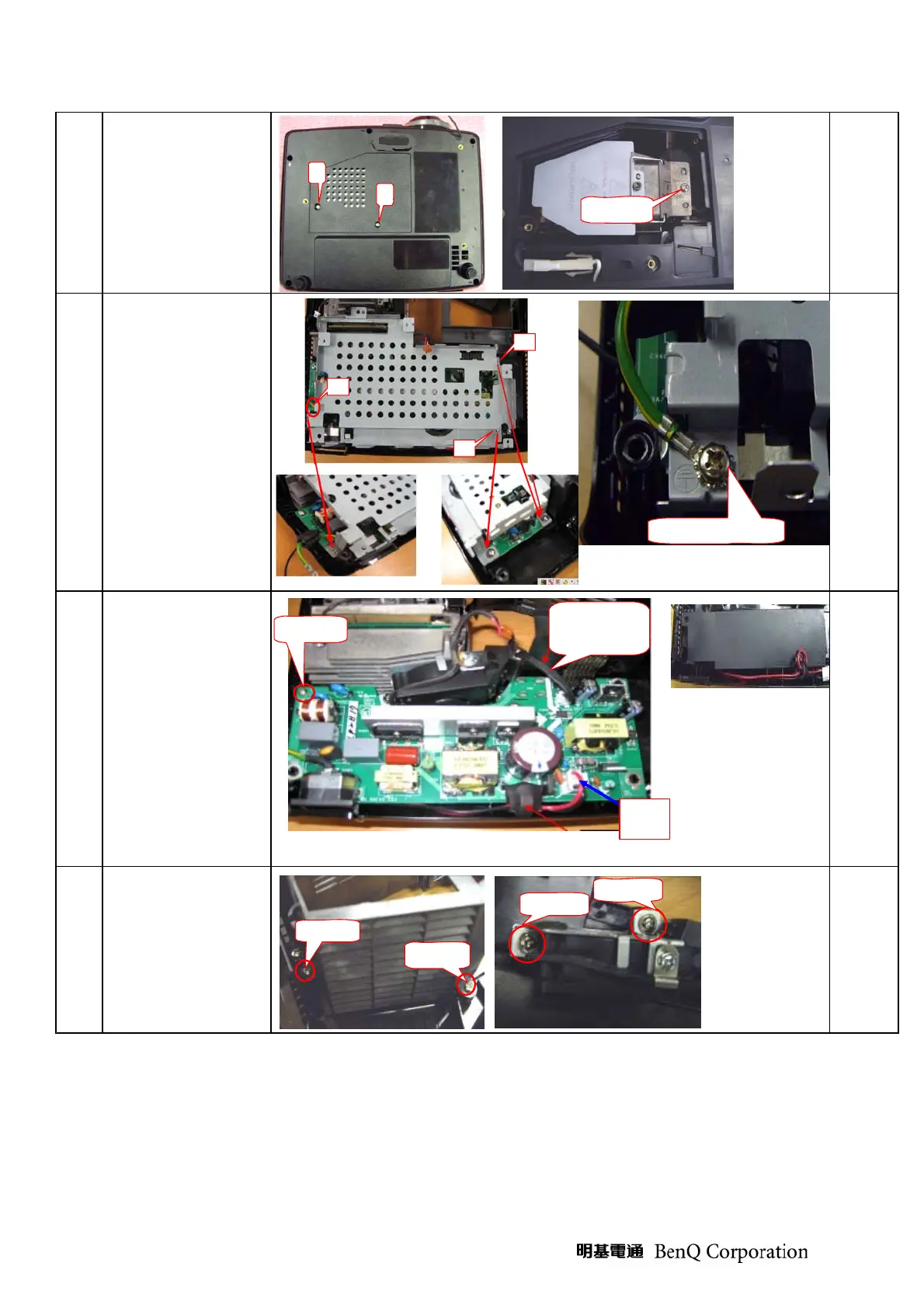

9
(1)Disassemble the
screw*2, and take off the
lamp door.
(2)Disassemble the
screw*1 and lamp wire,
and take off the lamp
module.
screw
driver
10
(1)Disassemble the
screw*3.
(2)Disassemble the
grounding screw*1, and
take off the Power B/D
SHD.
screw
driver
11
Disassemble the wire*2
and screw*1, and take off
the power BD and ballast
Mylar.
screw
driver
12
(1)Disassemble the
screw*2, and take off the
lamp box.
(2)Disassembly the
screw*2, and take off the
blower fan
screw
driver
screw*1
1
2
3
grounding screw *1
ballast
wire
screw*1
blower fan's
thermal wire
screw*1
screw*1
screw*1
screw*1
2
1
