2-1. “Blue Edge” Trouble Shooting:
I. Re-adjust “Overfill” first.
For Overfill Re-adjustment:
i. Those 2 Adjustment Screws must be released for around 2 mm first.
ii. Alignment Sequence:
c. To adjust “Horizontal Adjustment Screw” firstly, then “Vertical Adjustment Screw”.

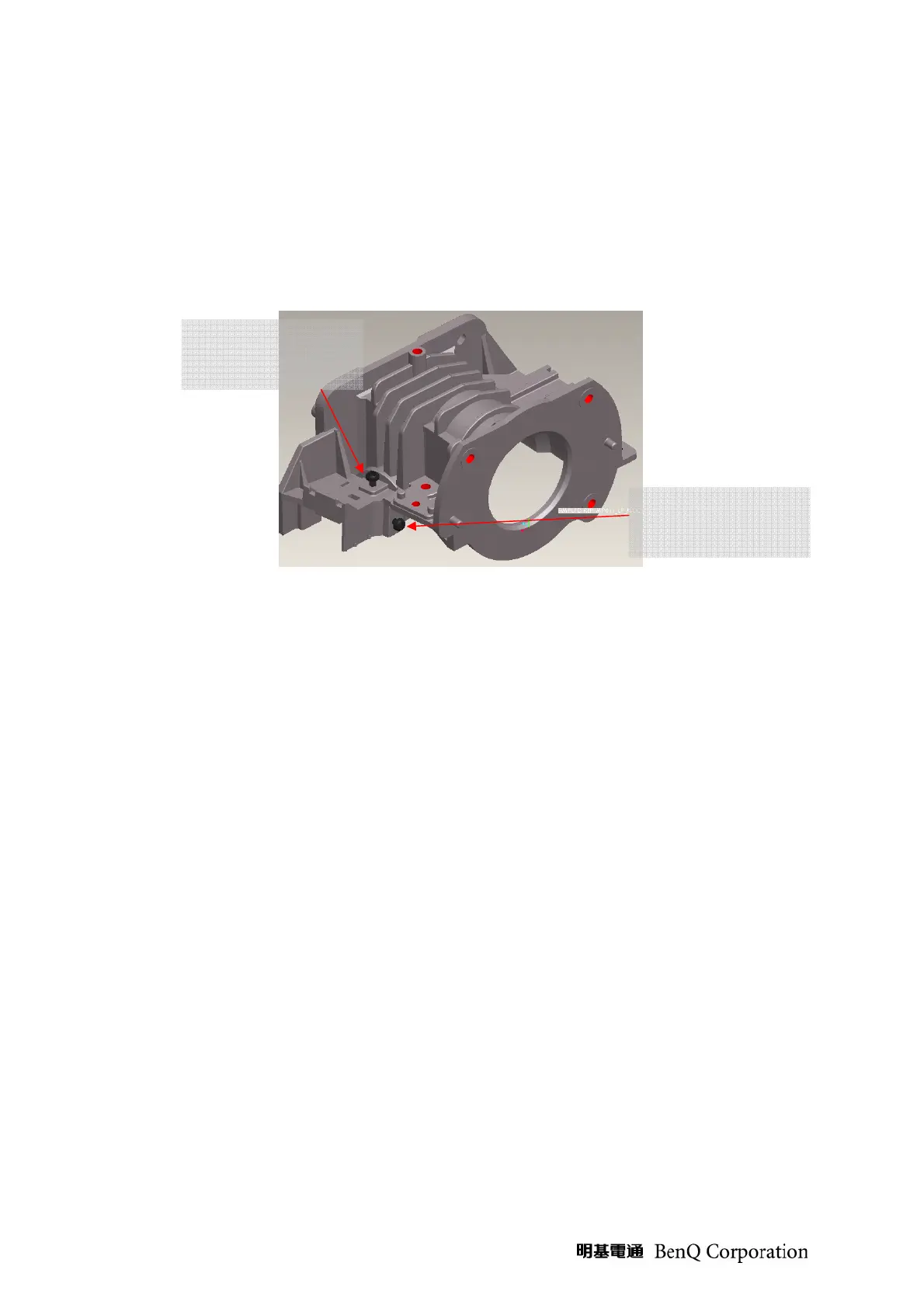

d. Refer to Figure 2-1..
Fig. 2-1
II. Re-assemble LP module—include LP, LP Baffle, LP clip.
(2) Overfill Vertical
Adjustment Screw
(1) Overfill Horizontal
Adjustment Screw
