BenQ MX560 - RS232 Via LAN; Settings; RS232 Via Hdbaset

6

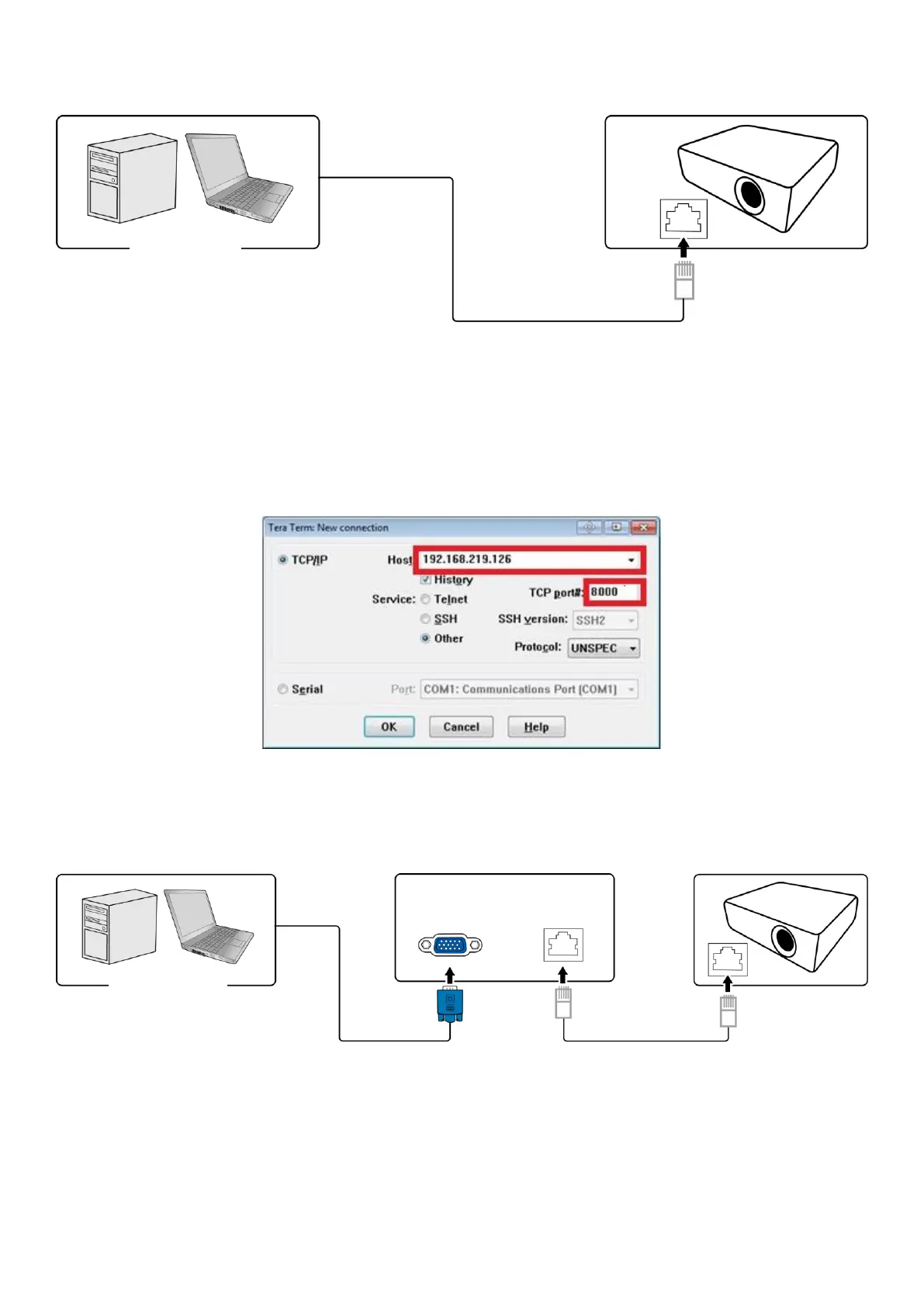

RS232 via LAN
Settings
1. Find the Wired LAN IP address of the connected projector from the OSD menu and
make sure the projector and the computer are within the same network.
2. Input 8000 in the TCP port # field.
RS232 via HDBaseT
PC or laptop
RJ45 port on a projector
LAN cable
PC or laptop
HDBaseT compatible device
D-Sub 9 pin
RJ45
RJ45 port on a projector
LAN cable
D-Sub 9 pin
