Positioning your projector20
MW724
For example, If you are using the MW724 and a 200-inch screen, the projection distance is
5670 mm and with a vertical offset of 337 mm.
If you are using the MW724 and your measured projection distance is 5.8 m (5800 mm),
the closest match in the "Distance from screen (mm)" column is 5670 mm. Looking across
this row showsthat a 200'' (about 5080 mm) screen is required.
All measurements are approximate and may vary from the actual sizes.

BenQ recommends that if you intend to permanently install the projector,
you should physically

test the projection size and distance using the actual
projector in situ before you permanently

install it, so as to make allowance
for this projector's optical characteristics. This will help you

determine
the exact mounting position so that it best suits your installation location.

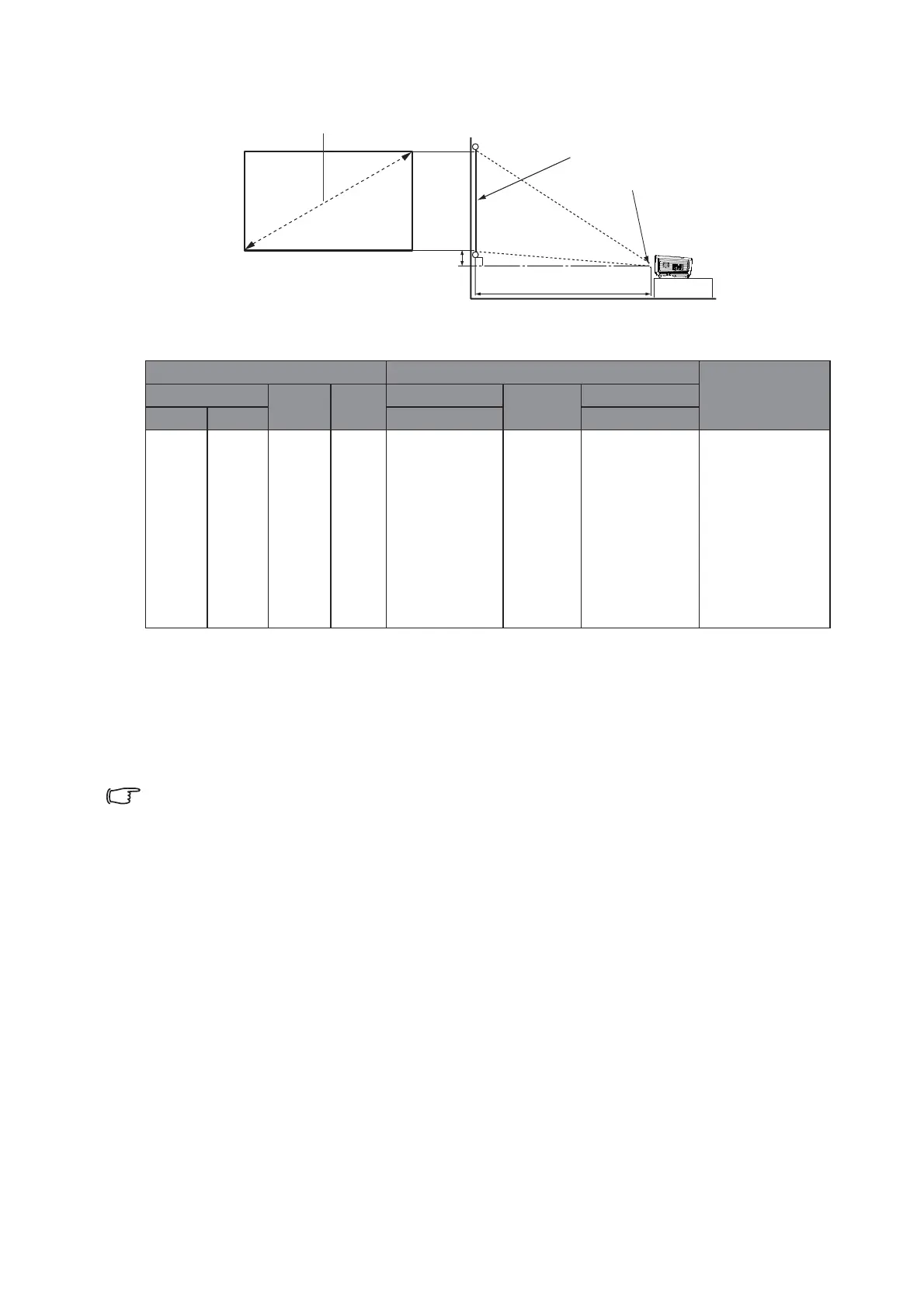

Screen size Distance from screen (mm)
Vertical offset
(mm)
Diagonal W
(mm)
H
(mm)
Min length
Average
Max length
Inch mm (max. zoom) (min. zoom)
40 1016 862 538 933 1107 1280 67
60 1524 1292 808 1416 1677 1937 101
80 2032 1723 1077 1900 2247 2595 135
100 2540 2154 1346 2384 2818 3252 168
120 3048 2585 1615 2867 3388 3909 202
150 3810 3231 2019 3593 4244 4895 252
200 5080 4308 2692 4802 5670 6538 337
250 6350 5385 3365 6011 7096 8181 421
300 7620 6462 4039 7220 8522 9824 505
16:10 Screen diagonal
Projection distance
Center of lens
Screen
Vertical offset
H
W
