BenQ MX880UST - Projector Exterior View

Introduction 9

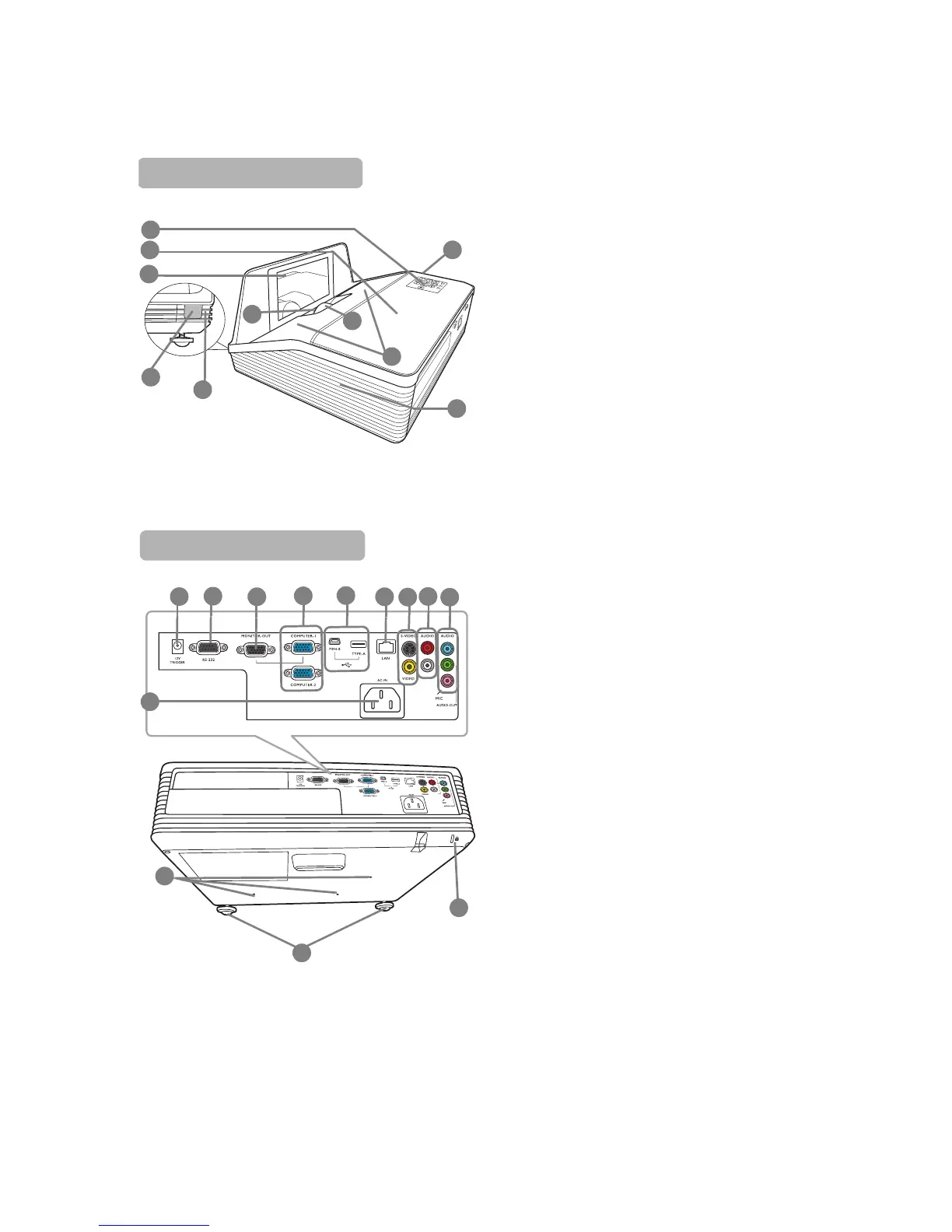

Projector exterior view
1. External control panel
(See "Controls and functions" on page 10
for details.)
2. Lamp cover
3. Mirror
4. IR remote sensor
5. Projection lens
6. Focus ring
7. Vent (cool air intake)
8. Speaker grill
9. Vent (heated air exhaust)
10. AC power jack
11. Ceiling mount holes
12. Adjuster feet
13. 12V DC output terminal
Used to trigger external devices such as an
electric screen or light control, etc.
Consult your dealer for how to connect
these devices.
14. RS232 control port
15. RGB signal output jack
16. RGB (PC)/Component Video (YPbPr/
YCbCr) signal input jack
17. USB ports
18. RJ45 LAN input jack
19. S-Video input jack
Video input jack
20. Audio (L/R) input jacks
21. Audio input jack
Audio output jack
Microphone jack
22. Kensington anti-theft lock slot
1
9
5
Front/upper side
2
4
3
7
9
8
6
Rear/lower side
11
14
15
16
17
20
19
18
22
21
12
13
10
