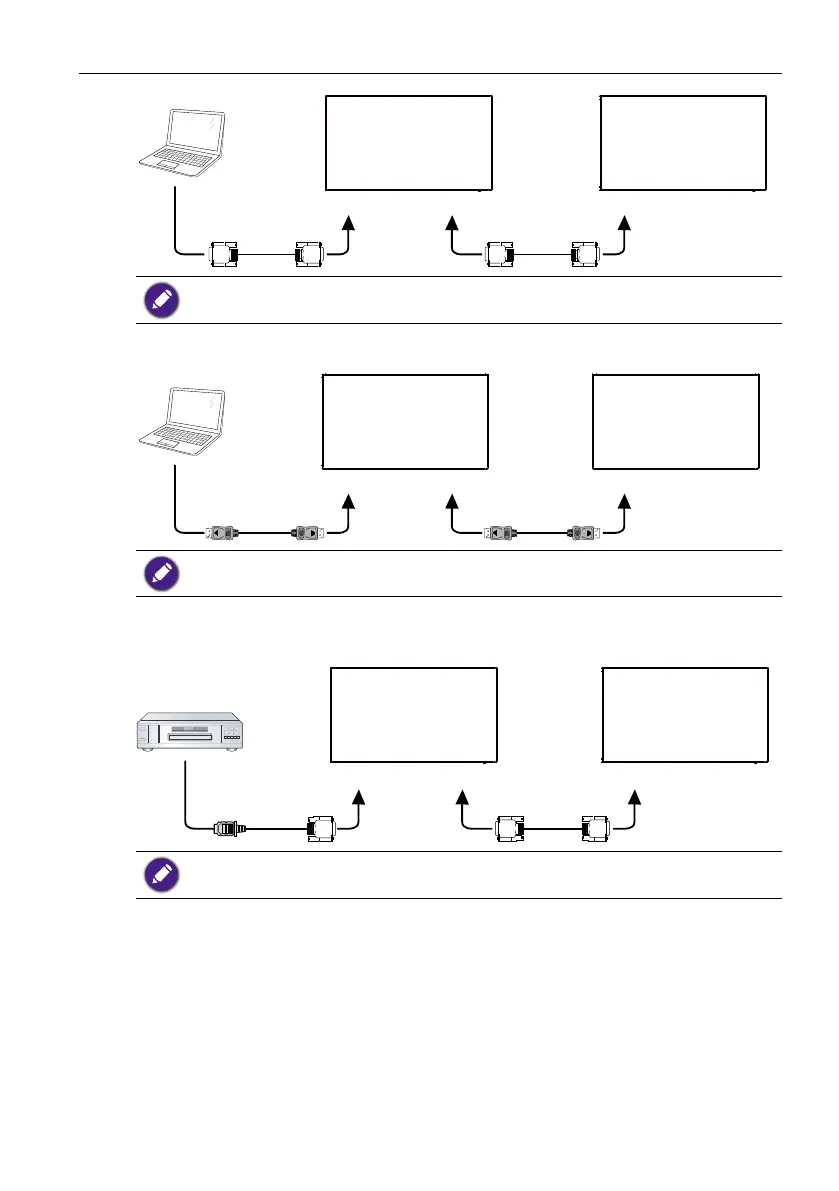

Connecting External Equipment 21
PC
DVI
DVI IN DVI/DVI-I OUT DVI IN
DISPLAY 1 DISPLAY 2
DVI Daisy chain to 25 units without splitter, DVI with HDCP up to 7th.
Connect the DP OUT connector of DISPLAY 1 to the DP IN connector of DISPLAY 2.
PC
DP
DP IN DP OUT DP IN
DISPLAY 1 DISPLAY 2
DP Daisy chain to 12 units without splitter. DP with HDCP up to 7th.
Connect the HDMI OUT connector of DISPLAY 1 to the DVI IN connector of DISPLAY
2.
DVD / VCR / VCD
HDMI
DVI IN DVI OUT DVI IN
DISPLAY 1 DISPLAY 2
HDMI up to 3840x2160@30Hz, HDMI with HDCP up to 7th.
Analog video connection
Connect the DVI OUT /DVI-I OUT connector of DISPLAY 1 to the DVI-I IN connector
of DISPLAY 2.
