330500 Velomitor Sensor, 330525 Velomitor XA Sensor, 330530 Radiation Resistant Velomitor Sensor Operation Manual
10
PART NUMBER 9571 - AXX (SEE NOTE)
NOTE
ORDER IN INCREMENTS OF 1.0 FOOT (0.30 m)
EXAMPLE:
0 2 2 FEET (0.61 m)
2 5 25 FEET (7.6 m)
MINIMUM LENGTH = 2 FEET (0.61 m)
MAXIMUM LENGTH = 99 FEET (30 m)
(1) Cable 2-22 AWG conductor shielded, Teflon insulated
(2) Clear shrink tubing, 63.5 mm (2.5 in)
(3) 51 mm ± 13 mm (2.00 in ± 0.5 in)
(4) “A”, white
(5) “B”, black
(6) 126 mm ± 13 mm (5.00 in ± 0.5 in)
(7) SHLD, green
(8) Overall length ± 150 mm (± 6.0 in)

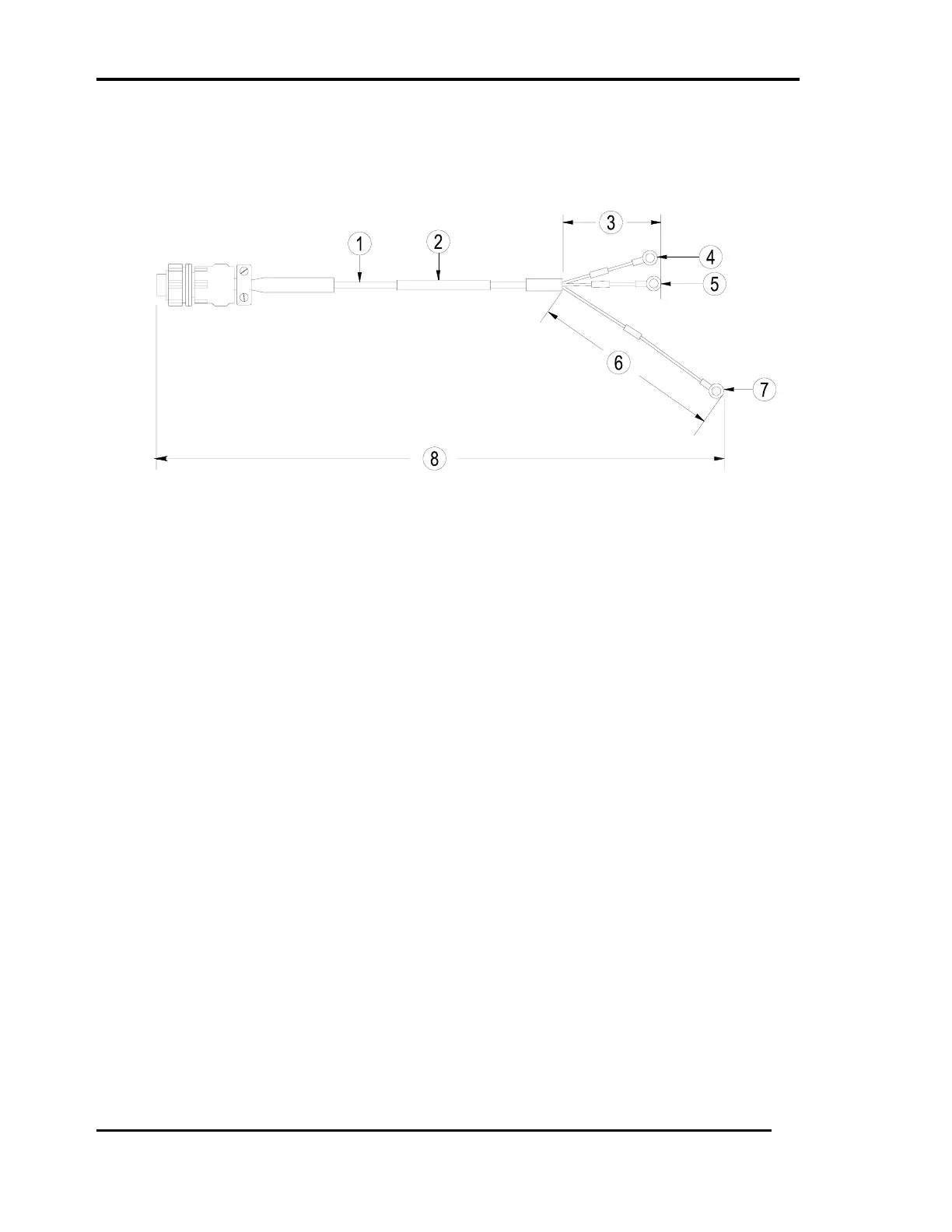

Figure 1-5. 9571 Cable for use with 330500 Velomitor® Sensor
