Section 1 - Operating Information
11
PART NUMBER 84661 - AXX (SEE NOTE)
NOTE
ORDER IN INCREMENTS OF 1.0 FOOT (0.30 m)
EXAMPLE:
0 3 3 FEET (0.91 m)
2 5 25 FEET (7.6 m)
MINIMUM LENGTH = 3 FEET (0.91 m)
MAXIMUM LENGTH = 96 FEET (29 m)
(1) Stainless steel armor over cable
(2) Clear shrink tubing, 63.5 mm (2.5 in) typical
(3) 635 mm ± 76 mm (25.0 in ± 3.00 in)
(4) 51 mm ± 13 mm (2.00 in ± 0.5 in)
(5) “A”, white
(6) “B”, black
(7) 126 mm ± 13 mm (5.00 in ± 0.5 in)
(8) SHLD, green
(9) Overall length ± 150 mm (± 6.0 in)

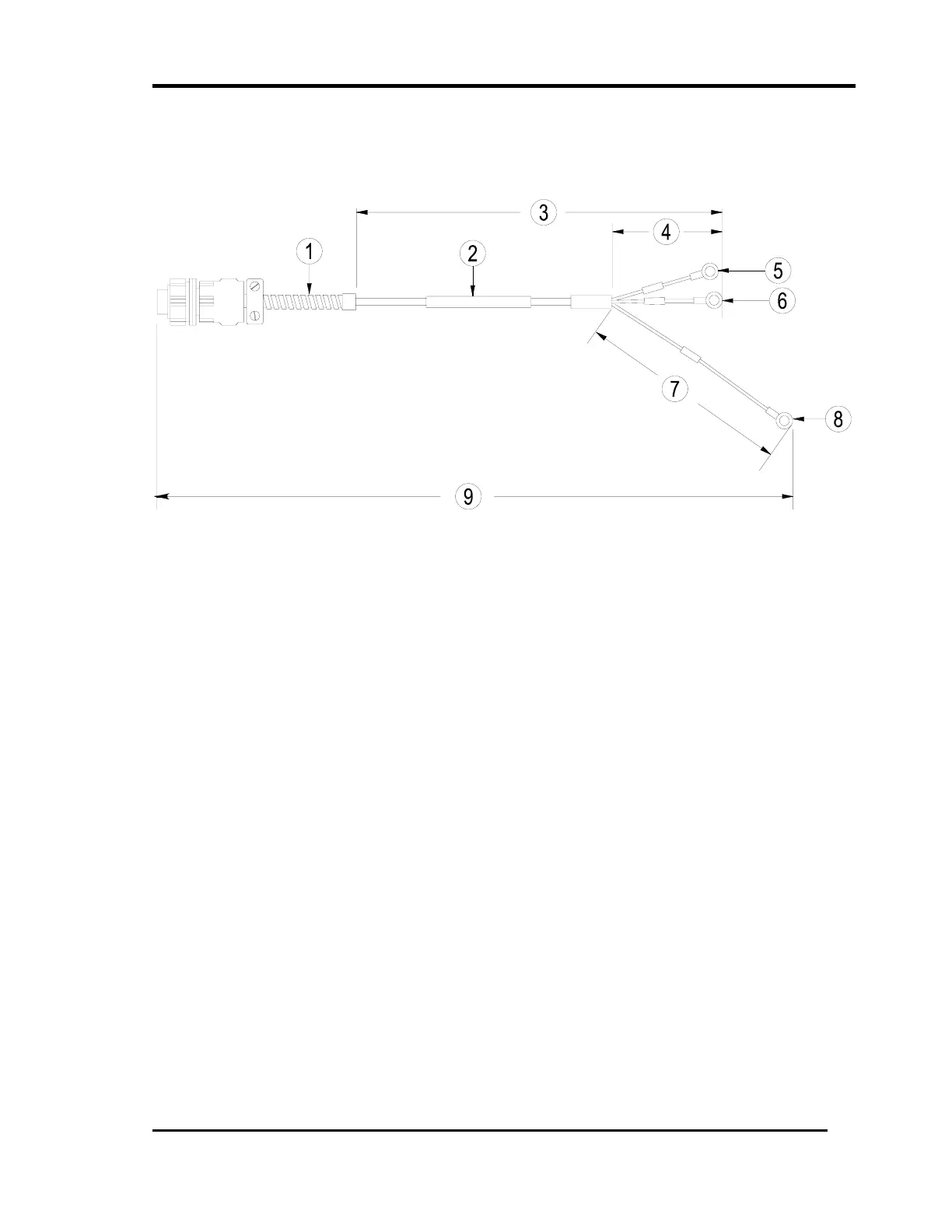

Figure 1-6. 84661 Cable for use with 330500 Velomitor® Sensor
