330500 Velomitor Sensor, 330525 Velomitor XA Sensor, 330530 Radiation Resistant Velomitor Sensor Operation Manual
12
PART NUMBER 89477 - AXX (SEE NOTE)
1
2
3
4
5
NOTE
ORDER IN INCREMENTS OF 1.0 FOOT (0.30 m)
EXAMPLE:
1 2 12 FEET (3.7 m)
2 5 25 FEET (7.6 m)
MINIMUM LENGTH = 2 FEET (0.61 m)
MAXIMUM LENGTH = 99 FEET (30 m)
(1) Schematic
(2) “A”, white
(3) “B”, black
(4) SHLD, green
(5) Overall length ± 150 mm (± 6.0 in)

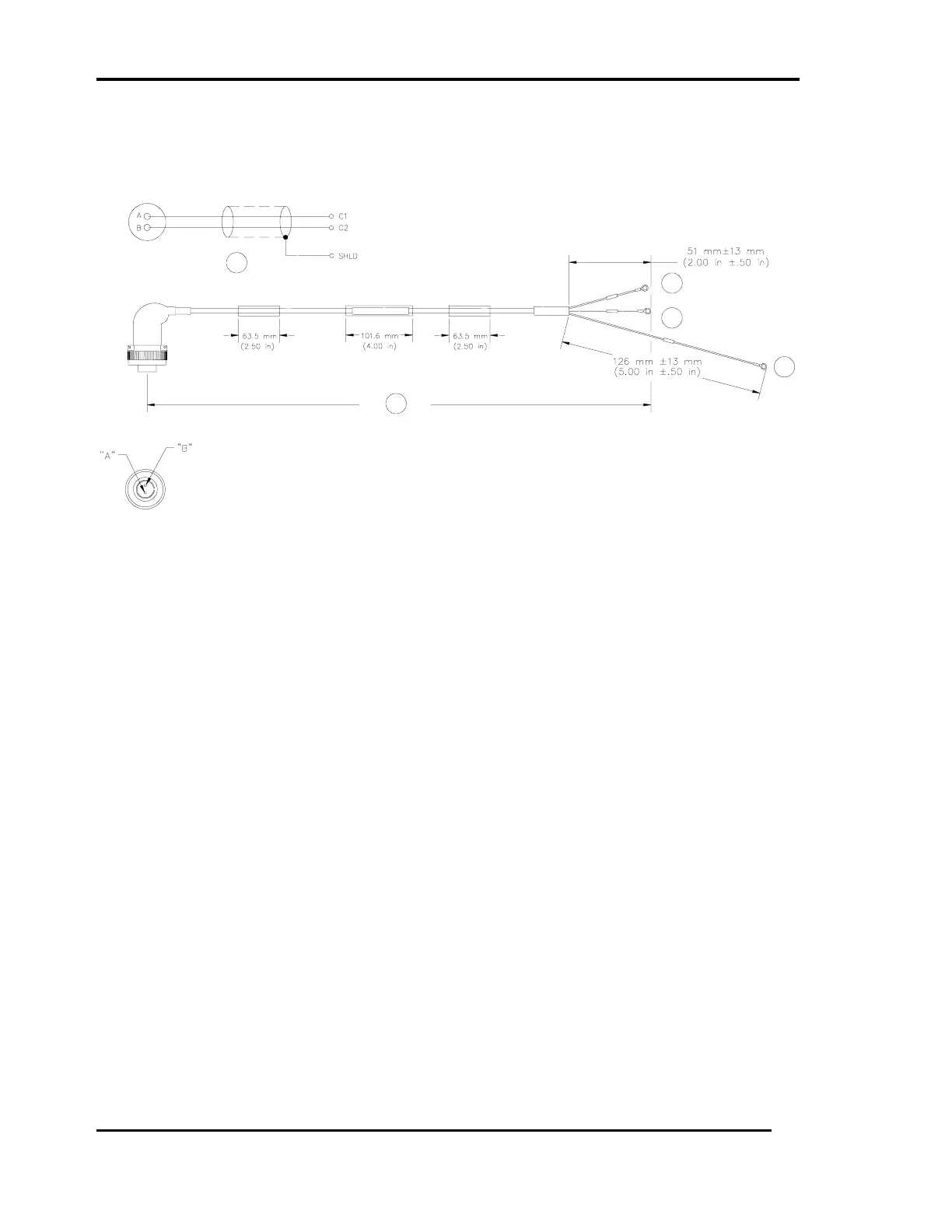

Figure 1-7. 89477 Cable for use with 330500 Velomitor® Sensor
