Section 1 – Operating Information
13
PART NUMBER 106765 - AXX (SEE NOTE)
1. 2-pin connector
8. 14.5 mm (0.57 in) maximum 15. Overall length ± 150 mm (± 6 in)
2. Stainless steel armor, FEP coated 9. Fluorosilicone elastomer oil-resistant boot 16. Shield
3. 7/8” single snap-grip hose clamp 10. 2-conductor shielded and jacketed cable 17. Green
4. 15/32” single snap-grip hose clamp 11. Approvals label 18. White
5. BN part number and serial number
label
12. “B”, black 19. Black
6. “A”, white 13. “SHLD”, green 20. Figure B, Wiring Diagram
7. 38.1 mm (1.50 in) maximum
14. Nickel-plated copper Teflon insulated ring terminal
(size #6 stud) typical, 3 places

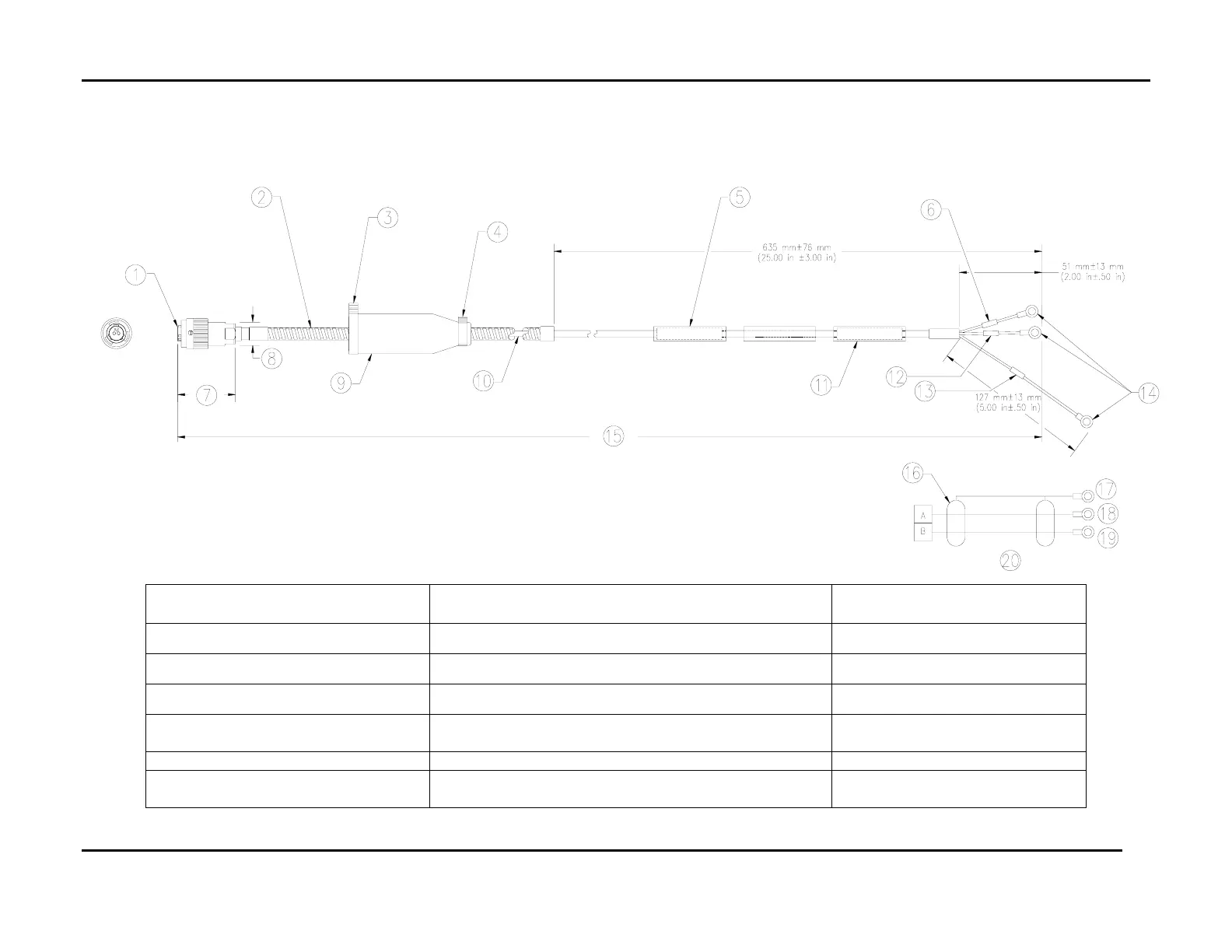

Figure 1-8. 106765 Cable for use with 330525 Velomitor® Sensor
