Bentone B 10 E R - Description; Components Overview

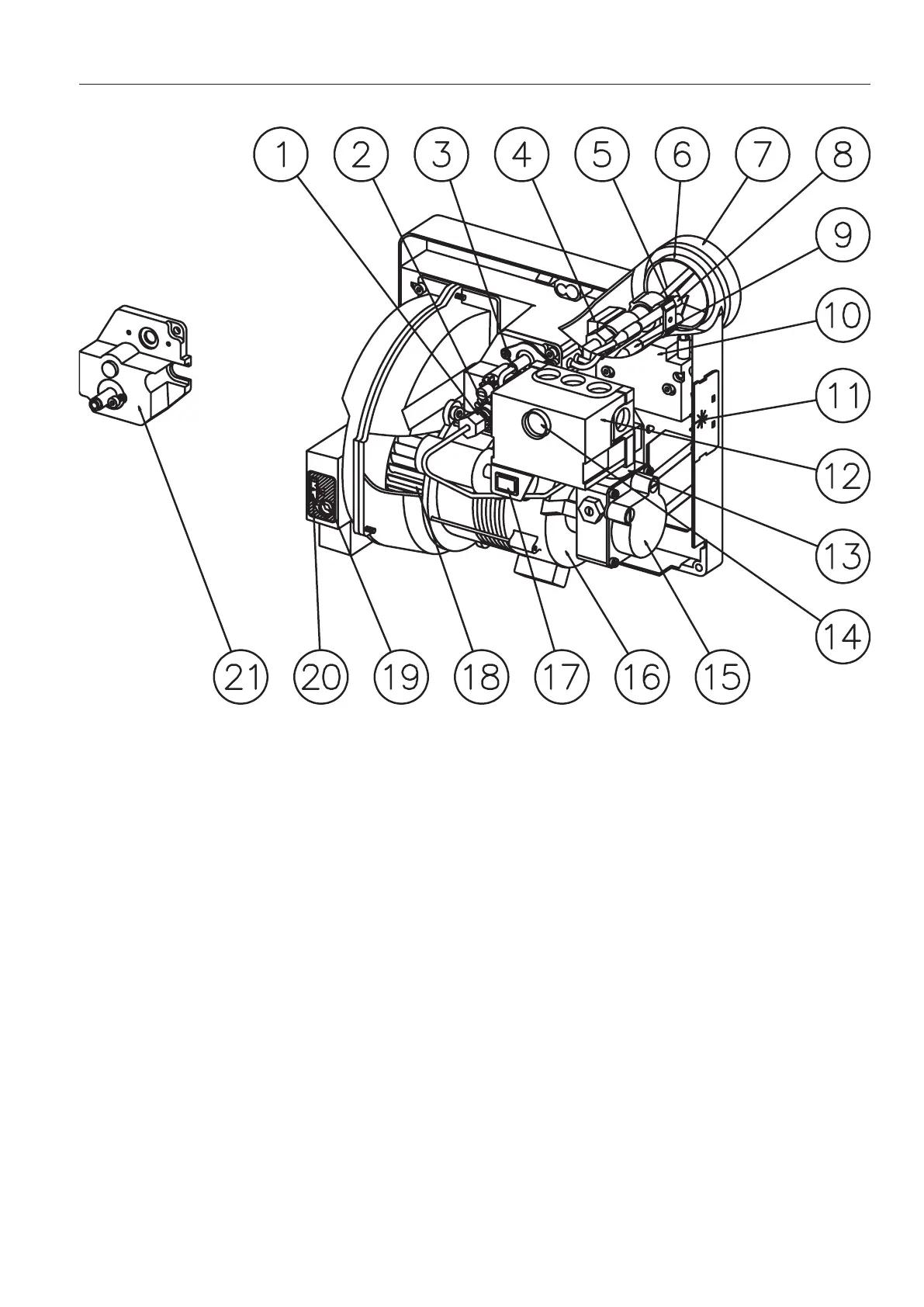

DESCRIPTION
1. Scale, nozzle assembly
2. Nozzle assembly adjustment
3. Photocell
4. Preheater
5. Nozzle
6. Schrouded disc
7. Blast tube
8. Ignition electrodes
9. Ignition cables
10. Ignition transformer
11. Electrical connection
12. Control box
13. Solenoid valve
14. Reset button
15. Pump
16. Motor
17. Indicating lamp, preheater
18. Fan wheel
19. Air regulation
20. Scale, air regulation
21. Cover, nozzle assembly
  
171 205 07 06-01
Components
