MAINTENANCE OF OIL BURNER
Warning: Before doing any service switch off power at the main switch and cut off the oil supply.

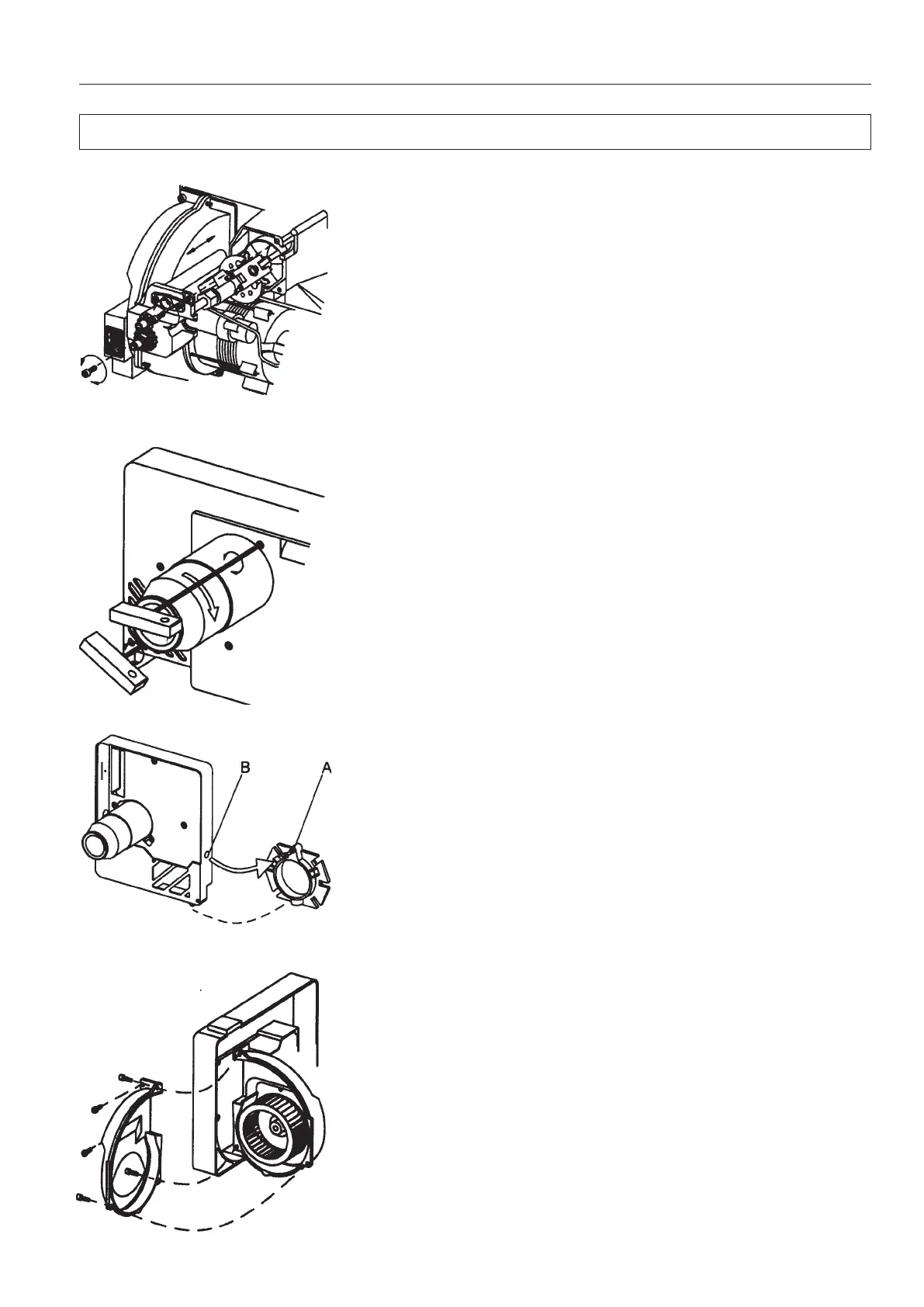

Service of burner head
(alt. a)
1. Remove the cover.
 
3. Loosen the connecting pipe.
 
nozzle assembly cover.
5. Retract the nozzle assembly so
far that the ignition cables can be
removed from the ignition
electrodes.
6. Remove the nozzle assembly.
171 305 14 07-01
Service of burner head
(alt. B)
1. Slacken retaining screws.
2. Remove the burner.
3. Loosen the two blast tube
retaining screws.
4. Turn the tube to the right and
remove.
Suspension of burner
A. Pin for suspension of burner.
B. Hole for suspension
 
Cleaning of fan wheel

Remove the fan housing half.
