10

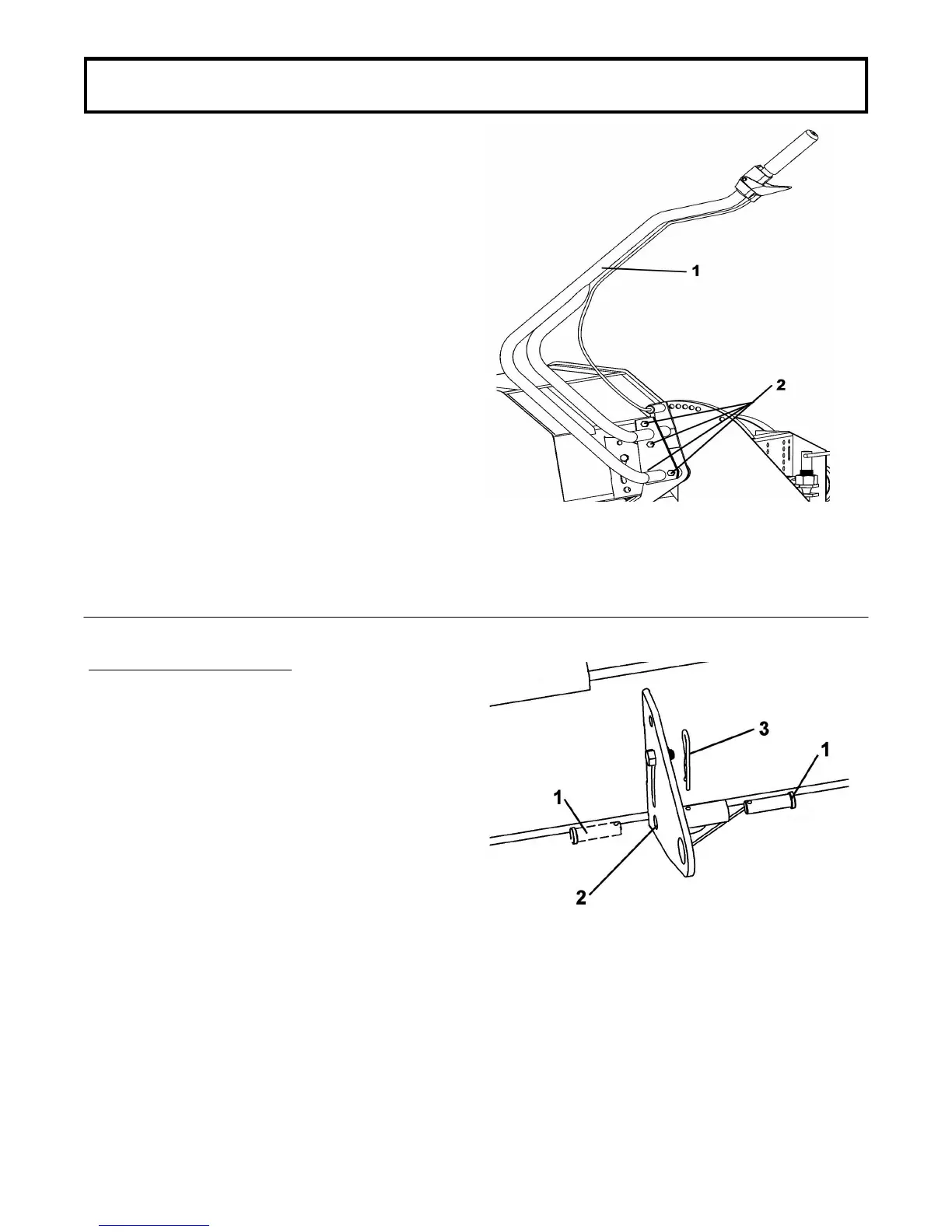

Install the lift arm
Install the lift arm (item 1) with four 5/16 x 3/4" bolts
(item 2) and flange nuts.
ASSEMBLY
For Installation Purposes Only:
Remove the pin (item 1) from the working position and
insert it in the locked position (item 2). Secure in place
with a hair pin (item 3).
IMPORTANT:
To avoid damage to the tiller, never use tiller with
pin in locked position.
Locked Position
Working Position
Move the pin to locked position
