8
ASSEMBLY

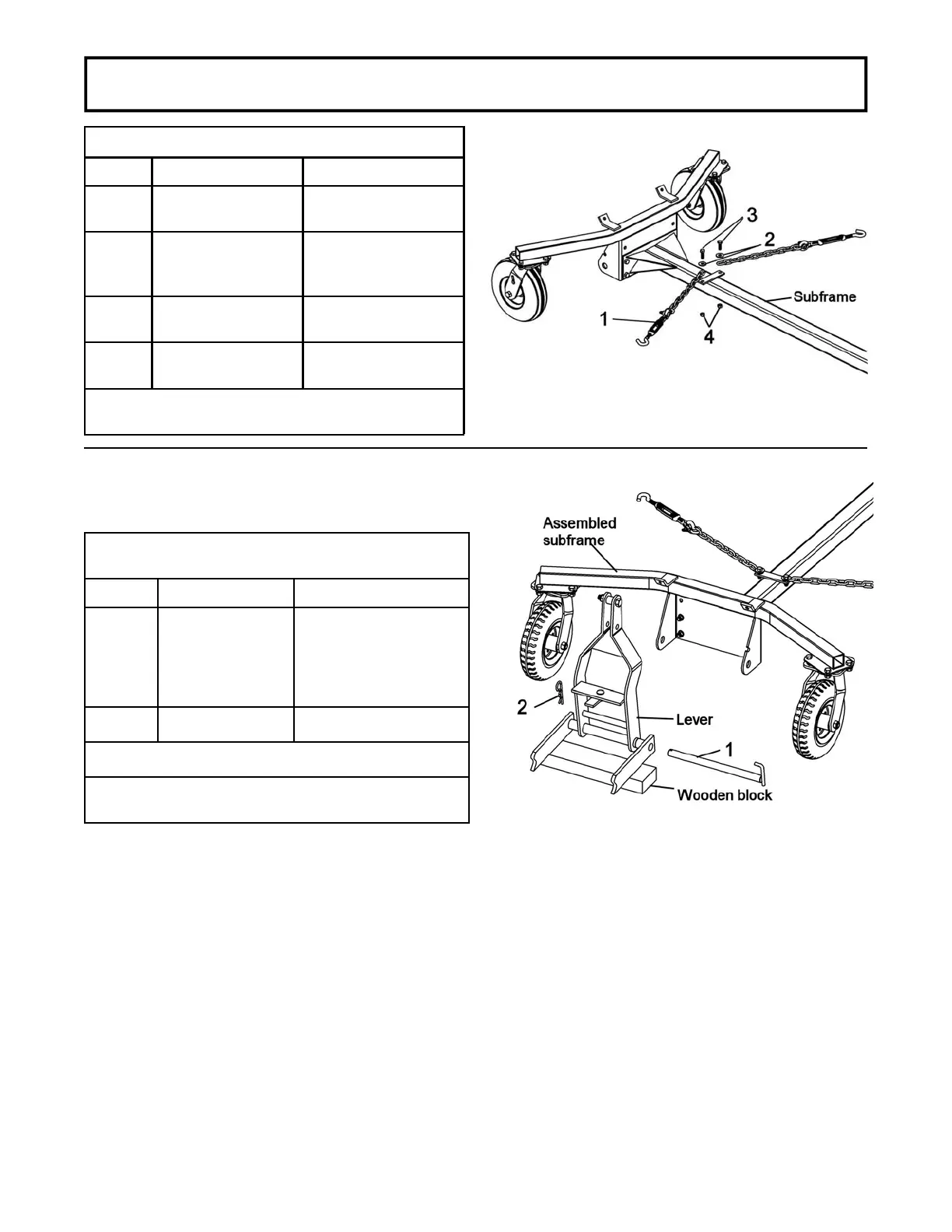

Install the assembled turnbuckles
Install the lever of the snowblower
Install the assembled turnbuckles (item 1).
# Item Description Action
1 Assembled
turnbuckle (qty 2)
Install on subframe
as shown
2 Flat washer
3/8" (qty 2)
Install on the
assembled
turnbuckles as shown
3 Hex bolt
5/16" x 1"(qty 2)
Insert as shown
4 Nylon insert lock nut
5/16" (qty 2)
Install and tighten
firmly.
NOTE: Position the chains as shown and tighten
firmly.
Install the lift lever of snowblower on the assembled
subframe.
# Item Description Action
1 Pin Insert the pin through
the holes on the
assembled subframe
and lever of the
snowblower as shown*.
2 Hair pin 4mm Secure pin as shown.
*Make sure the pin is in the locked position.
TIP: The use of a wooden block under the lever helps
for this installation.
NOTE: Remove hair pin (item 2) from the pin (item 1).
Remove the pin from the lever.
