Bercomac PRESTIGE 54 - Step 1: Vehicle Preparation; Step 2: Subframe Preparation

7
ASSEMBLY

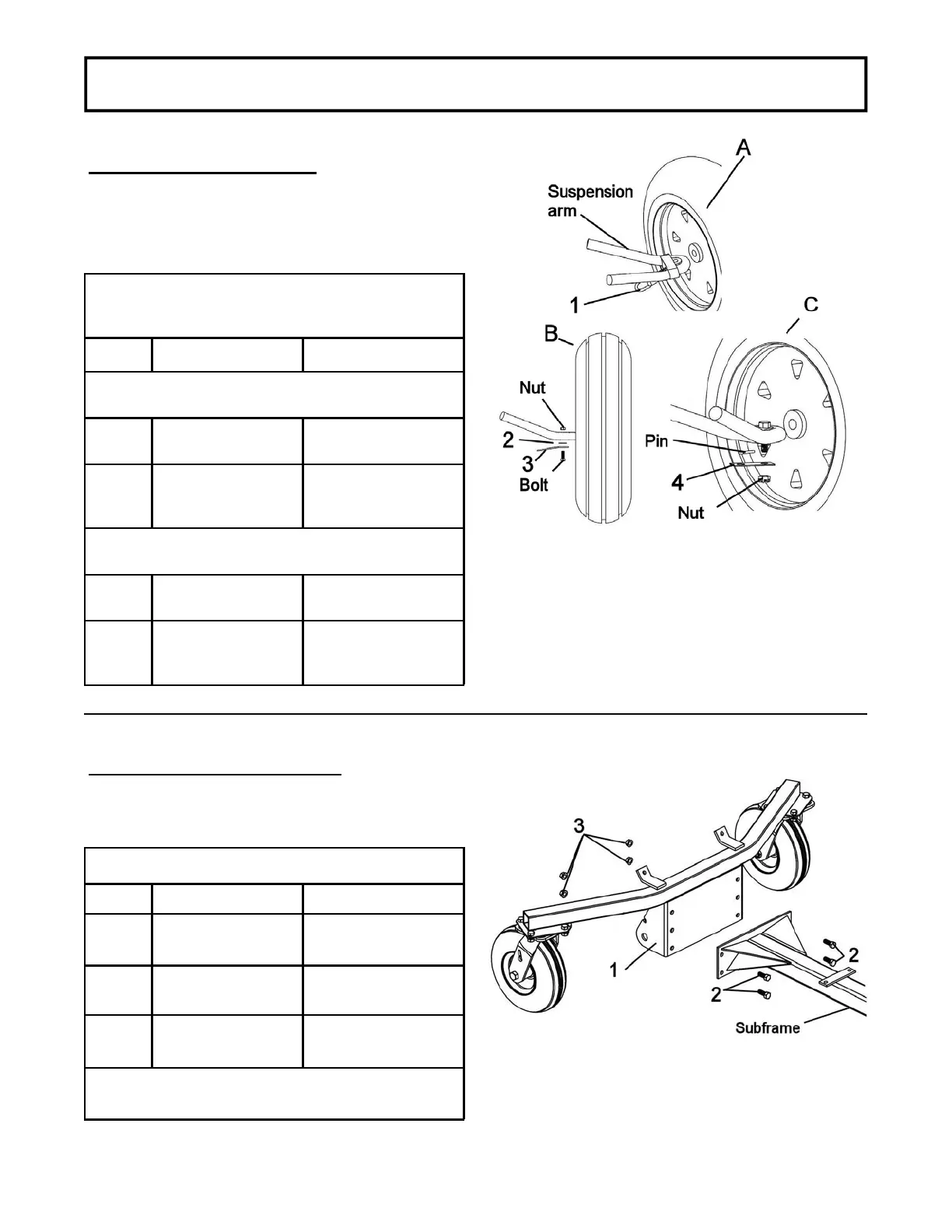

Install the wheel support
Install the wheel support (item 1).
# Item Description Action
1 Wheel support Install to the
subframe.
2 Hex bolts
3/8" x 1"(qty 4)
Insert as shown
3 Flange nuts 3/8"
(qty 4)
Tighten firmly
*The subframe must be parallel with the ground when
the subframe is installed under the vehicle.
STEP 2
SUBFRAME PREPARATION:
NOTE: Determine according to the height of the
vehicle which set of holes to use to assemble the
wheel support (item 1) to the subframe* (See below).
STEP 1
VEHICLE PREPARATION:
NOTE: A 1 7/8” or 50 mm tow hitch ball is required.
A) Install the lift strap (item 1) by looping it around the
suspension arm (as shown) on the vehicle.
Tighten the loop firmly.
# Item Description Action
B) Install the brackets (item 3) on both sides of
vehicle.
Bolt and nut from
suspension arm
Remove.
2-3 Flat washer and
bracket
Install and lightly
secure with the
original bolt and nut.
C) Install the brackets (item 4) on both sides of
vehicle.
Nut from
suspension arm
Remove.
4 Bracket Install and lightly
secure with the
original nut.
Choose among the three different options to prepare
your vehicle (A, B, C).
Install the lift strap or the brackets.
