USER MANUAL: FLYWHEEL SLICER
MODELS:
B2, B3, Tribute, P15, L16, B114, B114 YATCH, B116
MAIN
COMPONENTS

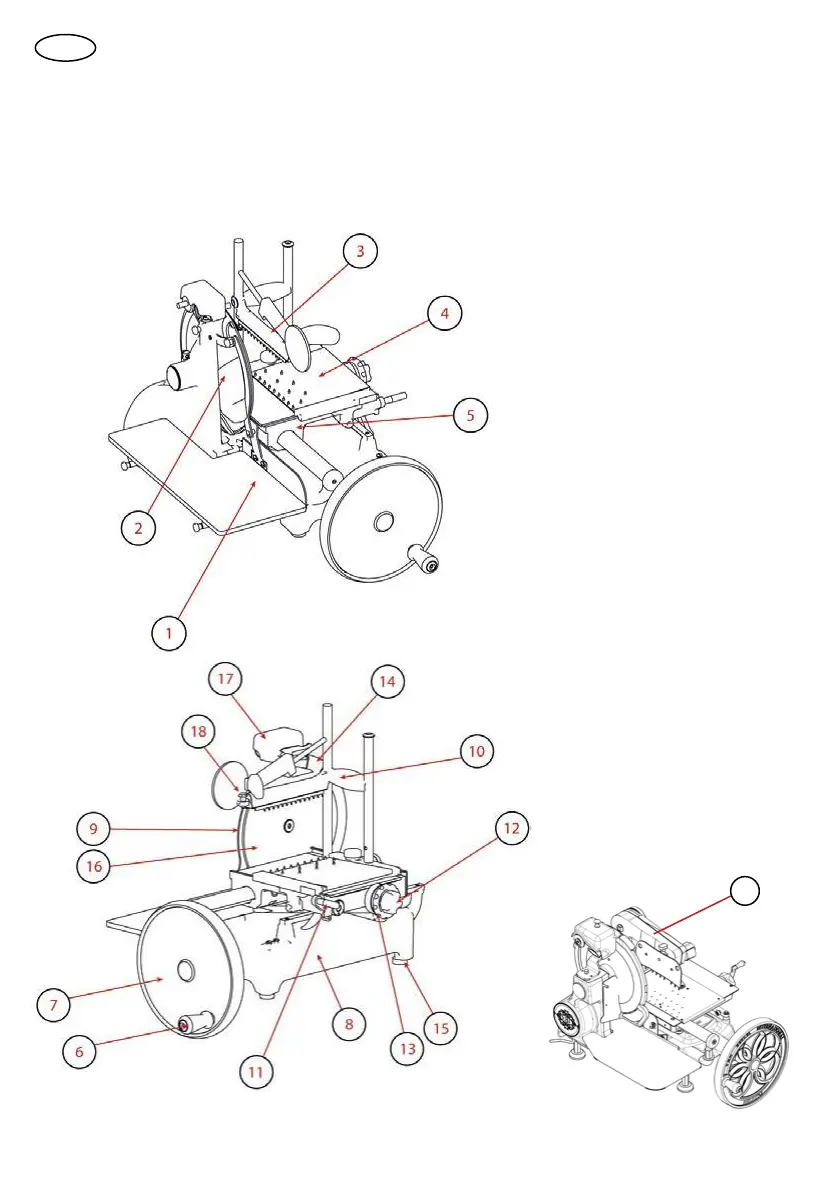

1. Receiving plate
2. Slice deector
3. Top clamp
4. Meat table
5. Carriage
6. Flywheel operating handle
7. Flywheel
8. Casing
9. Blade protection
10. Vertical sliding top clamp
11. Feed plate fast forward
lever
12. Feed plate forward handle
13. Slice thickness regulating
knob
14. Blade cover
15. Foot
16. Blade
17. Sharpener
18. Product holder handle
For model B114Y:
19. Product holder handle
