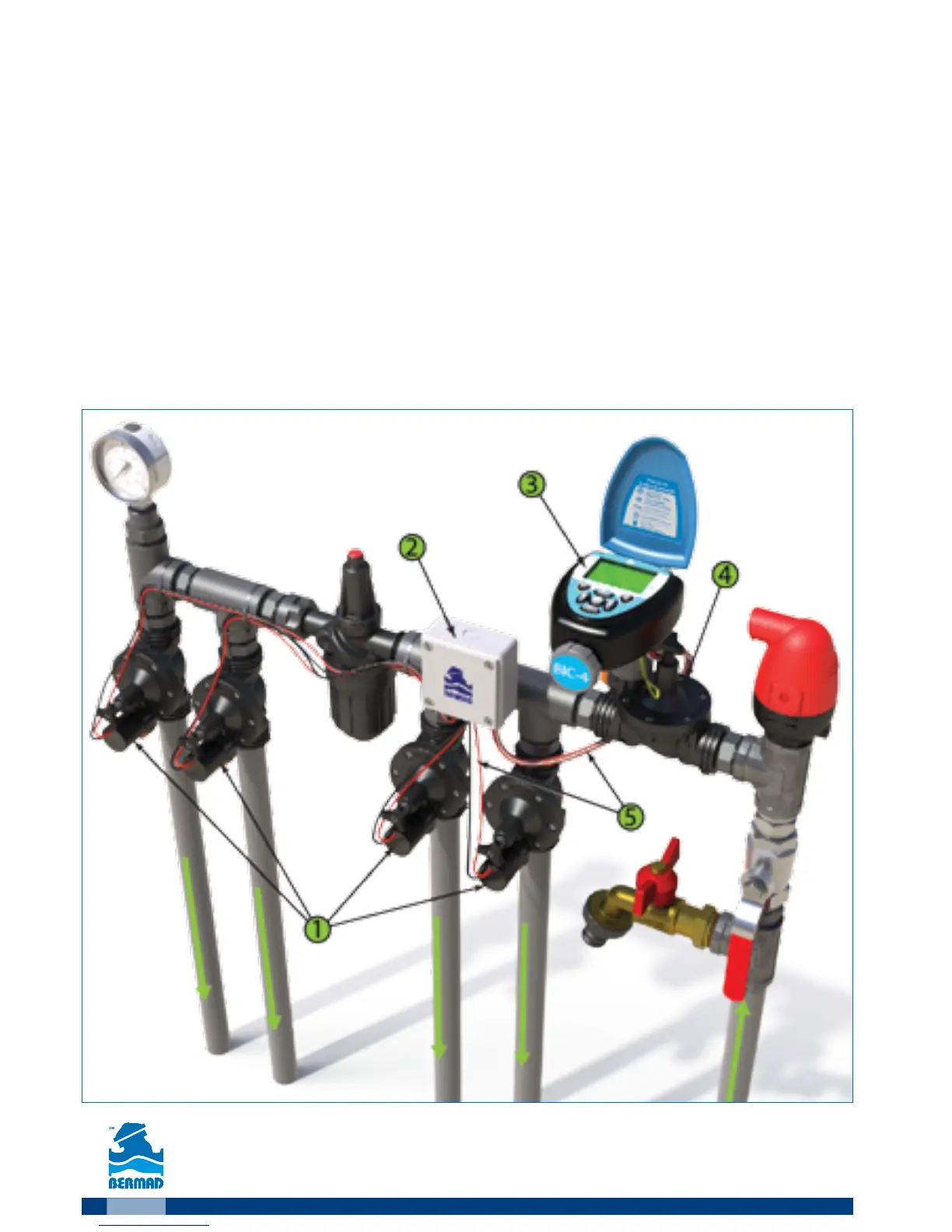

Typical Irrigation System
The controller is integrated in the irrigation system head (not supplied
with the controller) that includes:
1. Irrigation valves
2. Connection box for wiring the valves
3. BIC 2/4/6 Controller
4. Optional Main valve that opens before the first irrigation valve
and closes after the last valve completed its irrigation duration.
5. Wiring conduit for connecting the valves and the rain sensor
6. Additional components for regulation, filtration and air release from
the flowing water.
