5

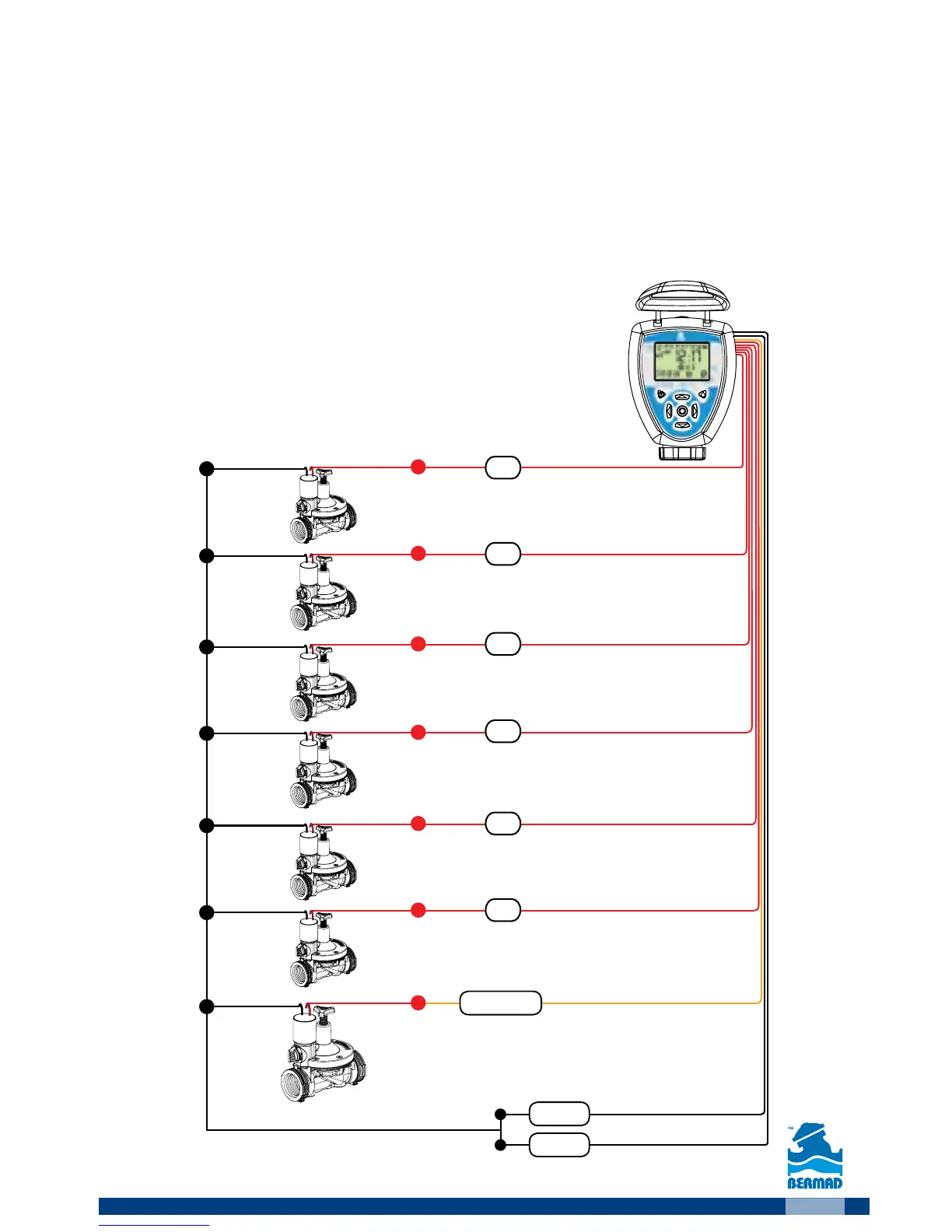

Controller’s Wiring
The controller is supplied with bundle of labeled wires.
1. Connect the Red wire of the valve to the Red wire of the controller that is
labeled with the corresponding valve number.
2. Connect the Red wire of the main valve to the Orange wire of the controller
that is labeled “Main”.
3. Connect the Black wires of all the valves to the two controller Black wires
labeled “Common”.
Remark: Use proper wire connectors and
junction box for protecting the electrical
connections from the elements.
רוחש
רוחש
םותכ
רוחש
םודא
םודא
םודא
םודא
םודא
םודא
םודא
1
2
3
4
5
6
ישאר
ףתושמ
ףתושמ
Red
Red
Red
Red
Red
Red
Red Orange
Black
Black
Black
Common
Common
Main
