Berner System 60/20 - Pyro-Sensor ITC; Warming Function with Potentiometer; Warming Function with Pyro-Sensor ITC and Electronic Potentiometer

Page 17 Of 44 17.07.2014
Ver. 3.6 © Bernese cooking systems 2018

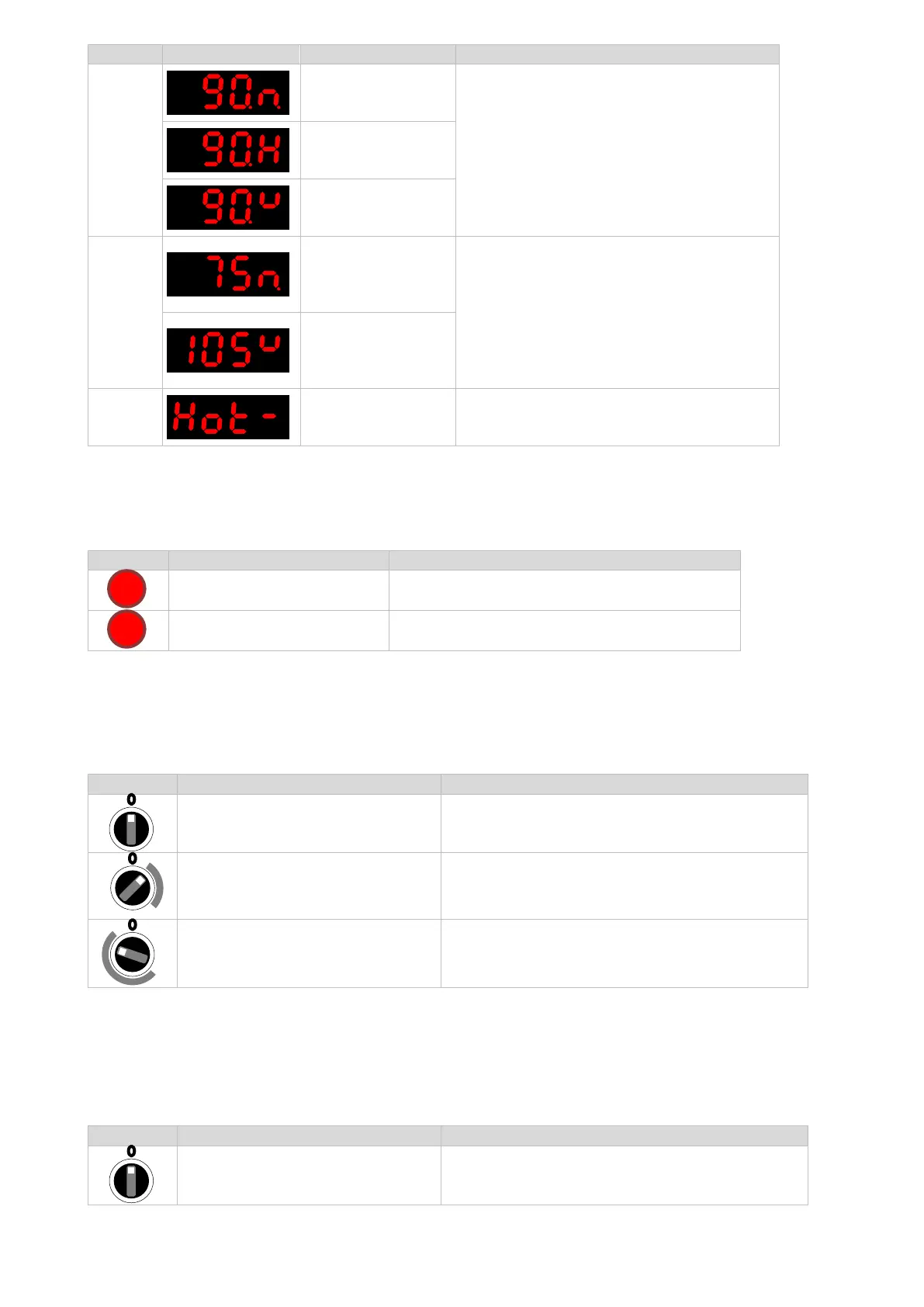

Display
Example
Importance
Declaration
Setpoint
Setpoint 90°C
Temperature too
low
Setpoint is represented by point.
Point on the right indicates heating
status
Setpoint 90°C
Temperature +/-
4°C
Setpoint 90°C
Temperature too
high
Actual
Actual value
125°C
Temperature too
low
Actual value appears every 10 sec for 2
sec.
Actual value
105°C
Temperature too
low
Residual
heat
Warning "Hot"
Residual heat
indicator
Induction switched off and actual value
> 45°C, every 10 sec for 2 sec.
Pyro-Sensor ITC
The Pyro-Sensor (ITC) has a center lighting, which lights through the ceramic glass:
Display
Importance
Declaration
Pot detection
Flashes when induction is turned on and no
pot is present
Residual heat indicator
Lights up when induction is switched off
and actual value > 45°C
Warming function with potentiometer
Instead of power levels 1 to 3, the warming temperature can be set from 70-110°C. This is
followed by the performance settings from level 4 to 9.
Elements
Description
Function
Rotary switch
0 position
From
Rotary switch
Range α40-120°
Temperature control 70-110°C (level 1-3)
Rotary switch
Range α120-320°
Power control level 4-9
Warming function with pyro-sensor ITC and electronic potentiometer
When the warming function is switched on, the start-turning direction can be used to
be elected. After at min. 1 second off state, the direction of rotation is detected.
Thus, in operation, the rotary switch can also be rotated via the 0-position, without
change the operating mode.
Elements
Description
Function
Rotary switch
0 position
From
