Berner System 60/20 - Master Potentiometer (Optional)

Page 25 Of 44 17.07.2014
Ver. 3.6 © Bernese cooking systems 2018

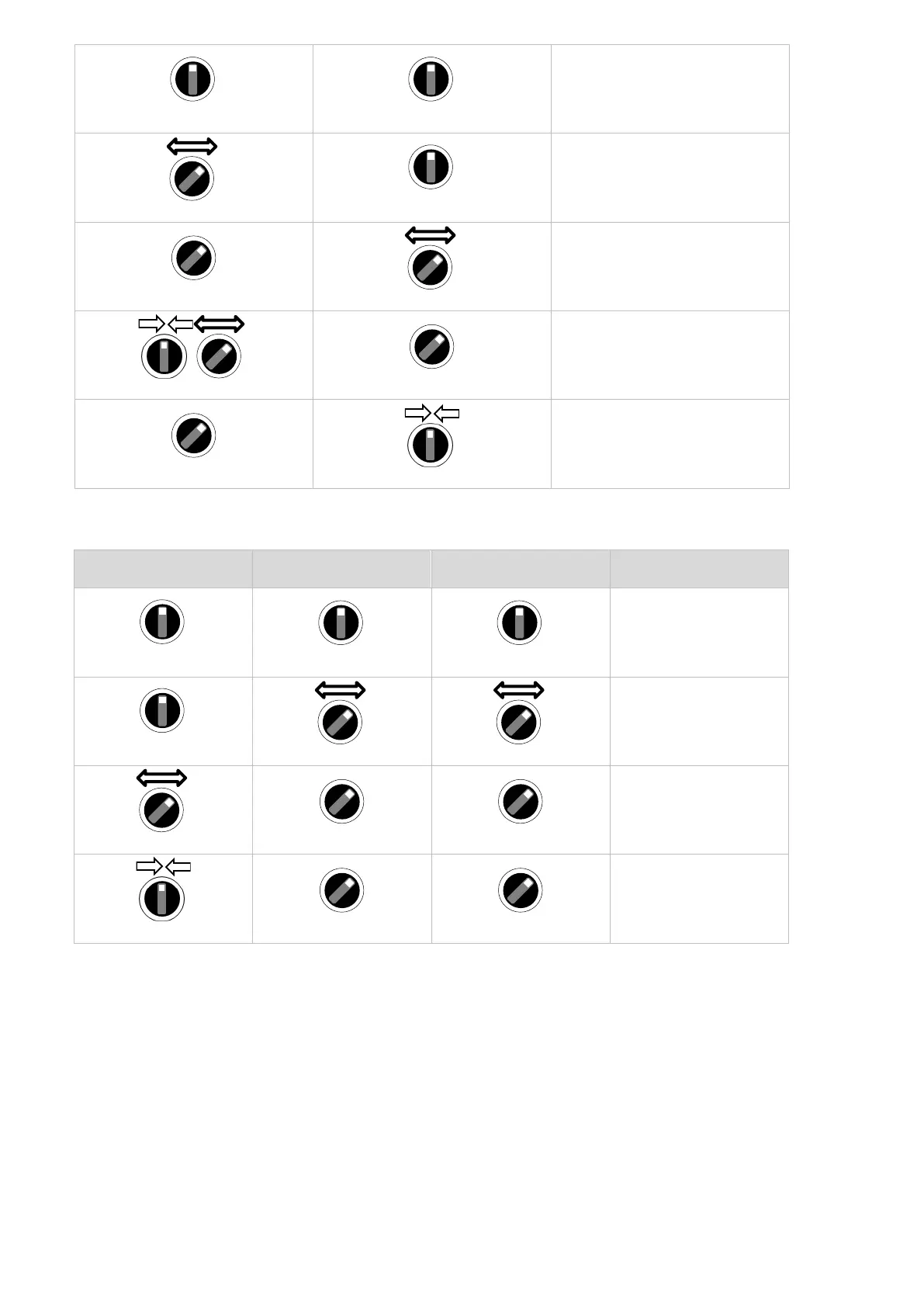

0 position 0 position
Device is switched off
Turn
Device switches on
Potentiometer 1
specifies the performance
Turn
Potentiometer 2
specifies the performance
Switching off and on again
Command takeover
Potentiometer 1
specifies the performance
Off
Device turns off
Master Potentiometer (optional)
Master
Potentiometer
Slave
Potentiometer 1
Slave
Potentiometer 2
Behavior
0 position
0 position 0 position
Device is switched off
Turn Turn
Induction generators
1 and 2 can be
operated
independently of each
other
Turn
Both induction
generators take over
the value of the
master potentiometer
Off
Both induction
generators switch off
BIPS (single generator):
The prerequisite for this is a smart power dual operation of both devices, which is achieved by
connecting the CAN L and CAN H at the control print of both generators. The SW1-8 dip switch
must also be switched on on both devices on the control press. In addition to the potentiometer,
a potentiometer is connected to the generator on only one generator. This now has a master
function for both generators. The potentiometers of the individual devices now only work if the
master potentiometer is set to NULL position.
BIPDS (double generator):
Switch on the dip switch SW1-8 on the st.
