Berner System 60/20 - Warm Holder; Warm Holder with Potentiometer; Warm Holder with Touch

Page 19 Of 44 17.07.2014
Ver. 3.6 © Bernese cooking systems 2018
rotation
Performance icon
lights up with power control,
flashes in power mode when pot detection
Temperature icon
illuminates with temperature control,
flashes in temperature mode when pot
detection
Warm holder
In contrast to the warming function, which can be switched as an option for power induction, the
hot holder is a separate application. (see applications)
The hot holder is a pure temperature control unit. There are 2 temperature ranges to choose
from: 60-90°C, 60-150°C
The temperature is measured by means of PT1000 sensors under the ceramic glass.

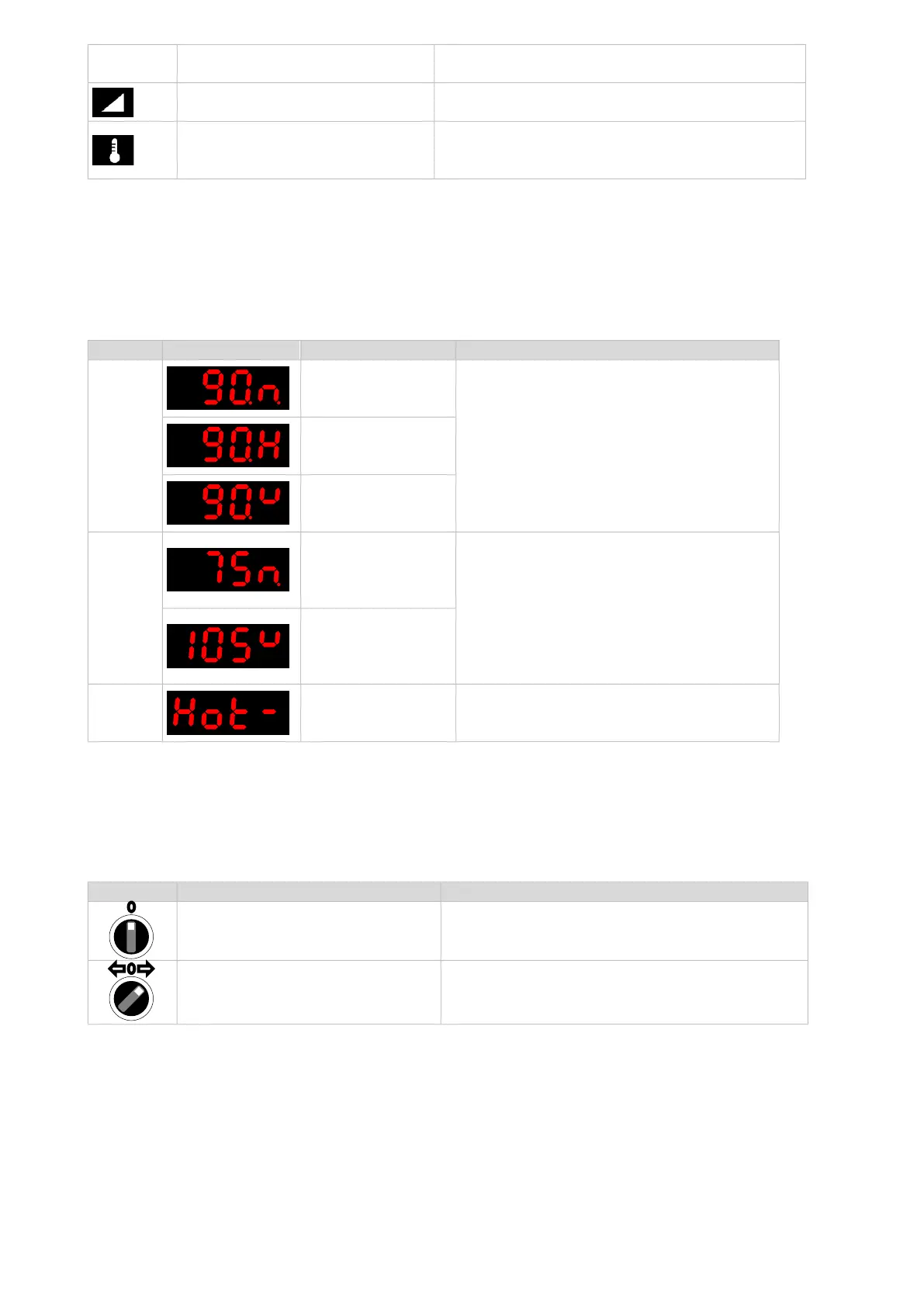

Display
Example
Importance
Declaration
Setpoint
Setpoint 90°C
Temperature too
low
Setpoint is represented by point.
Point on the right indicates heating
status
Setpoint 90°C
Temperature +/-
4°C
Setpoint 90°C
Temperature too
high
Actual
Actual value
125°C
Temperature too
low
Actual value appears every 10 sec for 2
sec.
Actual value
105°C
Temperature too
low
Residual
heat
Warning "Hot"
Residual heat
indicator
Induction switched off and actual value
> 45°C, every 10 sec for 2 sec.
Warm holder with potentiometer
With the potentiometer, the set temperature can be set
The knob can be rotated via the 0 position. This means that a quick changeover
from a low to a high setting value and vice versa.
Elements
Description
Function
Rotary switch
0 position
From
Rotary switch
Range α40°-320°
Temperature
Warm holder with touch
Instead of the potentiometer (Poti must NOT be connected), the touch display takes control.
The device is switched on by means of the on-off button.
The temperature range is from 70-250°C in 2°C increments with the ups and downs
Adjustable. The temperature is stored.
