Bernina 1090 - Print S-KAO

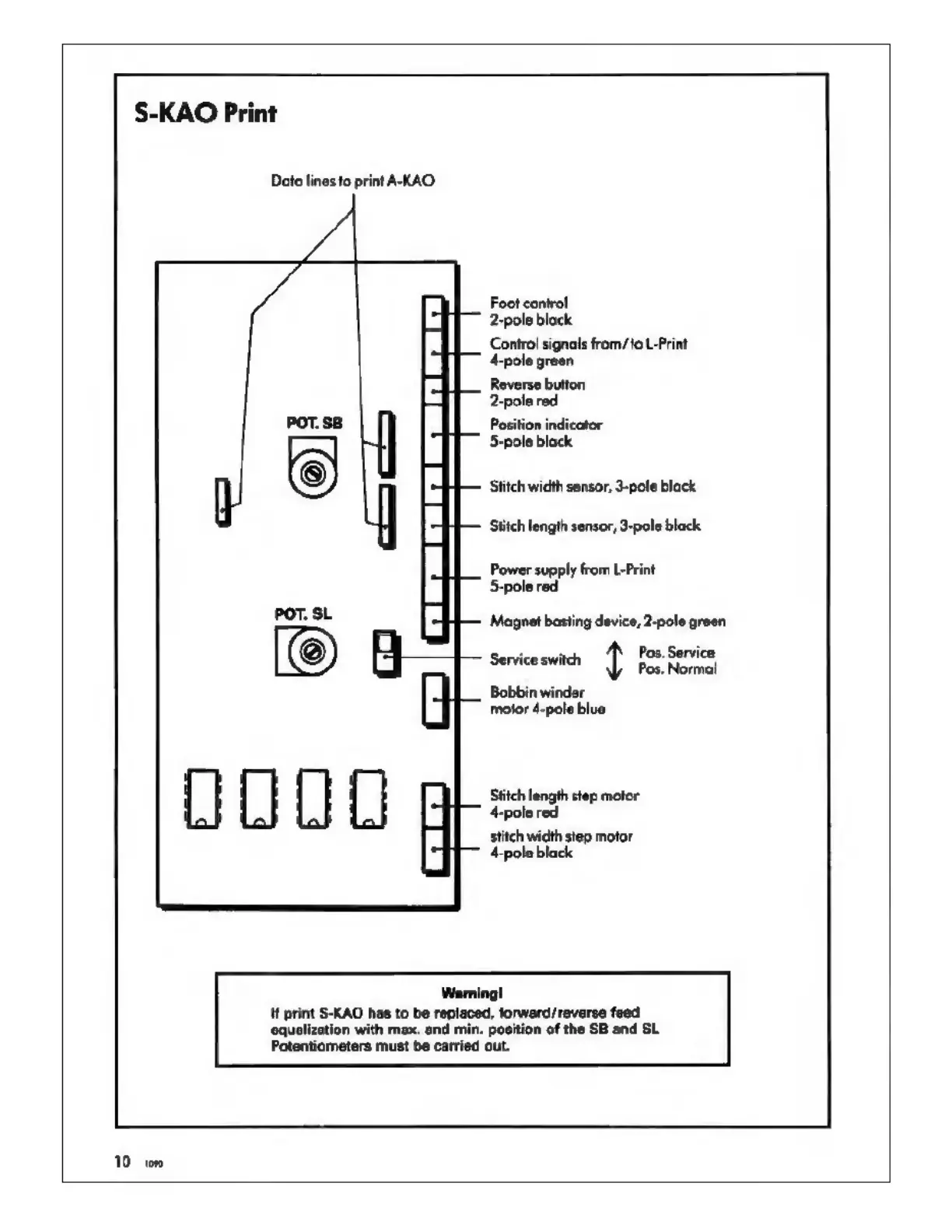

S-KAO Print
Dato lines to print A-KAO
Foot control
2-pole black
Control signals from/to L-Print
4-pole green
Reverse button
2-pole red
Position indicator
5-роје black
Stitch width sensor, 3-pole black
Stitch length sensor, 3-pole black
Power supply from L-Print
5-роје red
Magnet basting device, 2-pole green
z а Pos. Service
Service switch 0 Pos. Normal
Bobbin winder
motor 4-pole blue
Stitch length step motor
4-pole red
stitch width step motor
4-pole black
Warning!
If print S-KAO has to be replaced, forward/reverse feed
equalization with mex. and min. position of the SB and SL
Potentiometers must be carried out.
