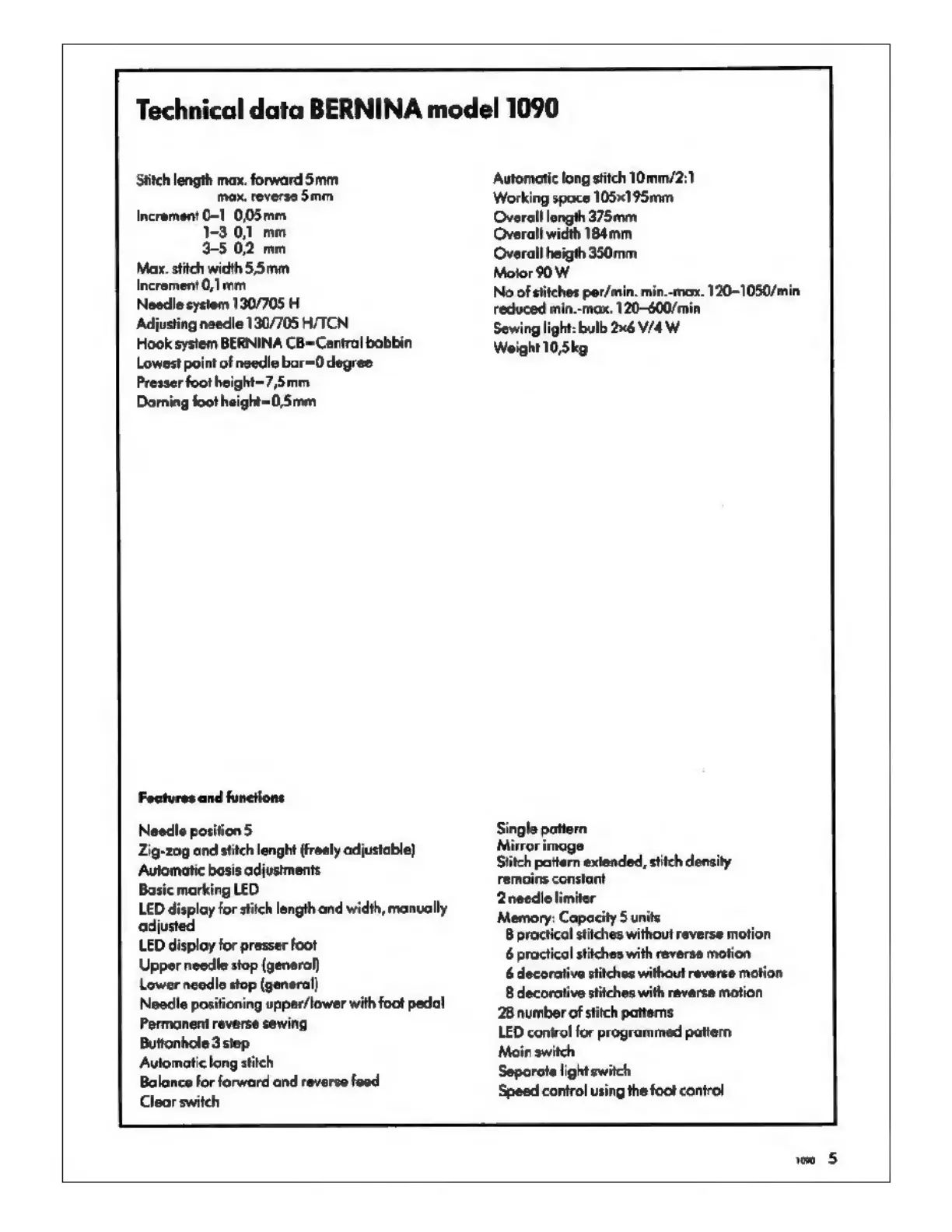

Technical data BERNINA model 1090
Stitch length max. forward 5mm
тах. reverse 5 тт
Increment 0-1 0,05mm
1-3 0,1 mm
3-5 02 mm
Max. stitch width 55mm
Increment 0,1 mm
Needle system 130/705 H
Adjusting needle 130/705 H/TCN
Hook system BERNINA СВ" Сегігаї bobbin
Lowest point of needle bar=0 degree
Presser foot height=7,5mm
Daming footheight=0,5mm
Features and functions
Needle position 5
Zig-zag and stitch lenght (freely adjustable)
‘Automatic basis adjustments
Basic marking LED
LED display for stitch length and width, manually
adjusted
LED display for presser foot
Upper needle stop (general)
Lower needle stop (general)
Needle positioning upper/lower with foot pedal
Permanent reverse sewing
Buttonhole 3 step
Automatic long stitch
Balance for forward ond reverse feed
Clear switch
Automatic long stitch 10mm/2:1
Working space 105x195mm
Overall length 375mm
Overall width 184mm
Overall heigth 350mm
Motor 90 W
No of stitches per/min. min.-max. 120-1050/тіт
reduced elt тах. 120-600/min
Sewing light: bulb 2x6 V/A W
Weight 10,5kg
Single ранет
Mirror image
Stitch pattern extended, stitch density
remains constant
2needle limiter
Memory: Capacity 5 units
8 practical stitches without reverse motion
6 practical stitches with reverse motion
6 decorative stitches without reverse motion
8 decorative stitches with reverse motion
28 number of stitch patterns
LED control for programmed pattern
Main switch
Seporate light switch
Speed control using the foot control
