4. PANELS MOUNTING
4.5 Mounting panels to the door and
the drawer of Integrated units
Operate as follows:
>

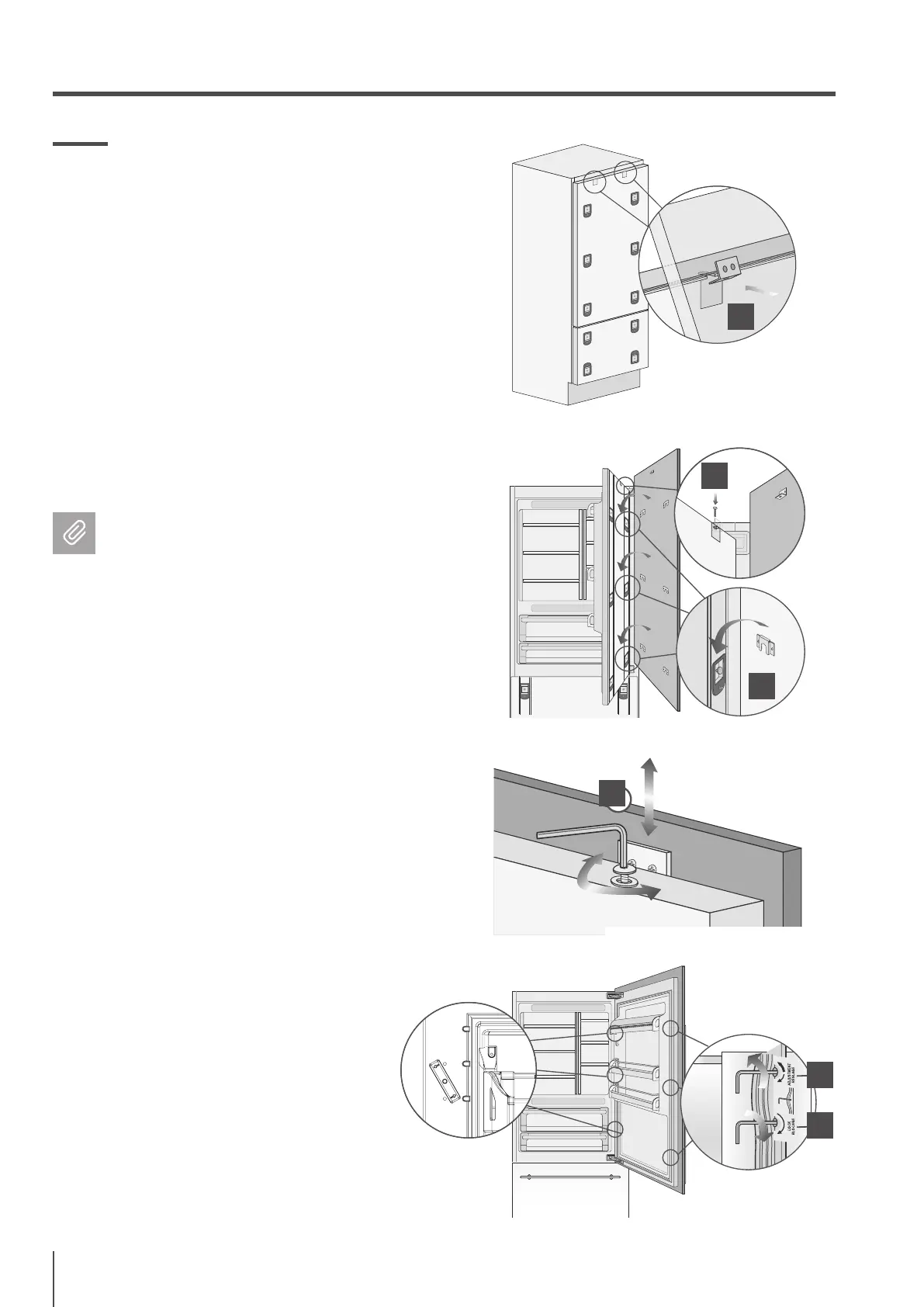

Ensure the top adjustment L-brackets are alig-
ned and inserted into the cavities at the top of the
door [ 6 ].
> At this point, alignment between the panel and
adjacent cabi-nets can be adjusted using the ali-
gnment brackets and small brack-ets [ 7 ] and [ 8 ].
> Vertical alignment: tighten or loosen the screw in
the brackets to raise or lower the panel [ 9 ]
> Depth alignment: working from the inside of the
door, after lift-ing up the magnetic seal, adjust the
panel position so it is closer to or further away from
the door using the holes [ 10 ] and then fix the panel
in position using the holes [ 11 ].
Once the front panel has been ad-justed,
check that the gasket has been repositio-
ned correctly to as-sure the door/drawer
are closing correctly and avoid operational
er-rors of the unit.
6
7
8
9
10
11
