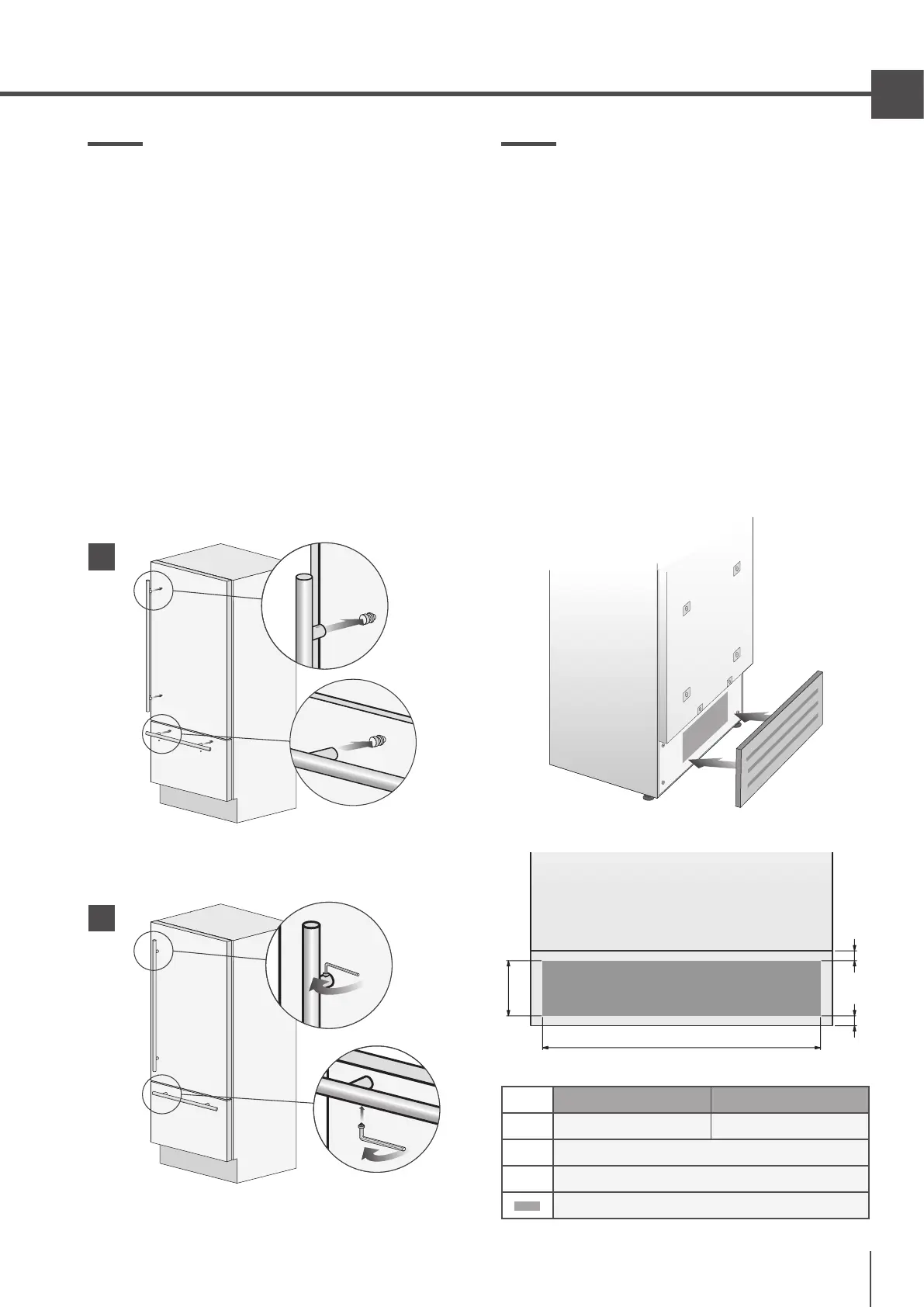

6.2 Mounting handles on stainless front
To mount the handles onto the door and the drawer
operate as follows:
>
Insert the two handle spacers onto the mounting
studs already available on the door and the drawer
[ 1 ]. Ensure the mounting studs are not loose.
> Screw in the Allen set-screws pre-installed on the
handle [ 2 ].
The screws must be tightened in by means of a 2.5
mm (1/8”) hex wrench / Allen key. Take care not to
damage or scratch the stainless panel with the tool.
6.3 Air circulation
A forced air system assures ventilation through a gril-
le positioned in the lower front part of the unit. If the
kitchen design includes a kickplate, the latter has to be
punched in order to maintain a satisfactory air flow, as
described in the drawing. Holes can be in any shape
and size, as long as the total area of the punched part
equals 50% of the kickplate are.
In this case, to guarantee a better air flow, it is advisa-
ble to remove the front grille included with the unit. The
grille is secured to the unit with magnetic plates and
can be easily removed even by the end user, to provide
for regular cleaning procedures and remove dust. If the
grille is partially covered by the kitchen kickplate, it is
advisable to remove the grille in order to provide for a
better airflow.
A
90 SERIES 75 SERIES
A 860 (33 7/8”) 740 (29 1/8”)
B > 100 (4”)
C 10 (3/8”)
50%
1
2
