Pullout Drawer

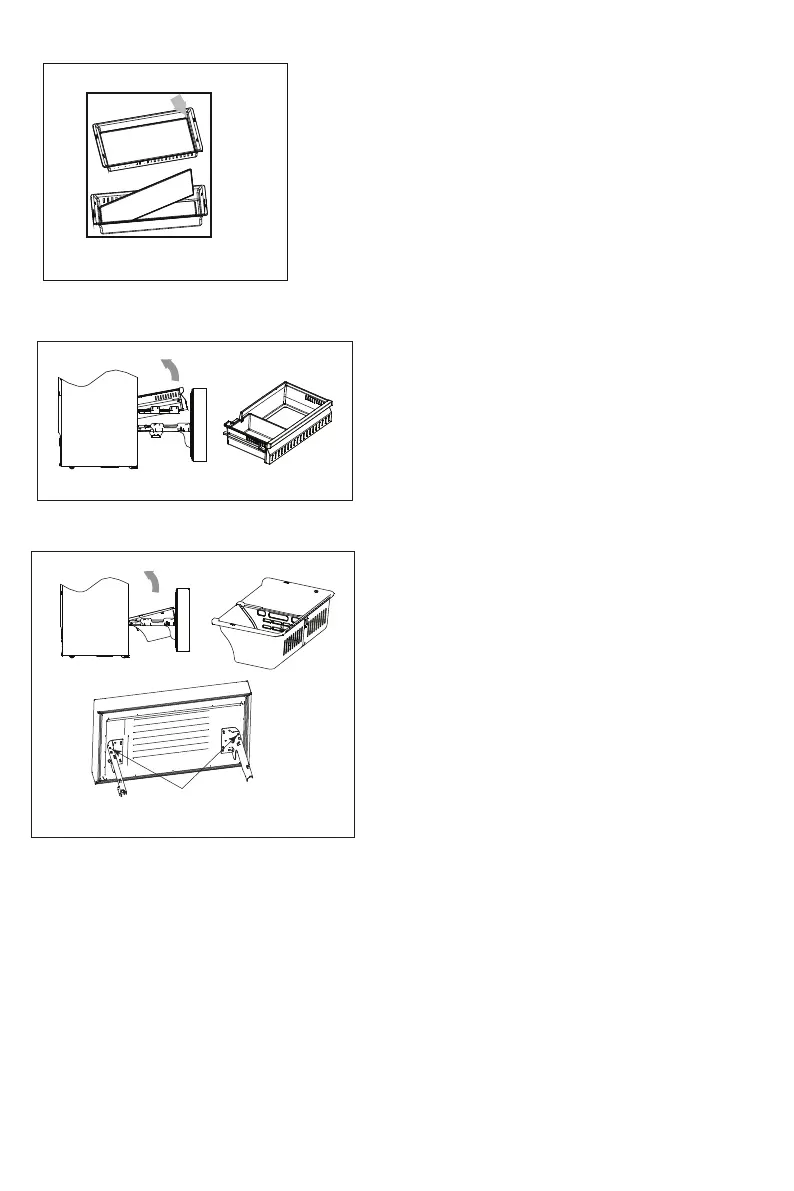

Figure 8
Disassembly of the pullout drawer
1. Open the freezer drawer to the maximum opening.
2. Lift the tail of the pullout drawer by holding both
sides of the drawer
with both hands.
3. Pull the slide rails all the way out, and push the
pullout drawer forward
until the drawer is separated
from the support claws on the slide rails.
See Figure 8.
4. Remove the pullout drawer from the side rails.
Freezer Bin
Screws
Figure 9
Disassembly of the freezer drawer
1. Open the freezer drawer to the maximum opening.
2. Lift the tail of the freezer bin by holding both sides
of the bin with
both hands.
3. Pull the whole bin toward you until the support claws
on the slide rails
are separated from the bin.
4. Remove the freezer bin from the side rails.
5. Remove the screws on the left and right side rails with
a screwdriver
and have one person hold the freezer
drawer door for support.
See Figure 9.
6. Lift the door to a certain angle and pull back with
both hands
to
remove.
Figure 7
Removal of the stainless-steel cooling plate
1. Use a small flat screwdriver tool to pry up a corner
of the cooling plate.
2. Place a hand along the warped gap (waring work
gloves is recommended)
and gently remove the plate.
See Figure 7.
