Disassembly of the Quattro Temp Zone drawer
21

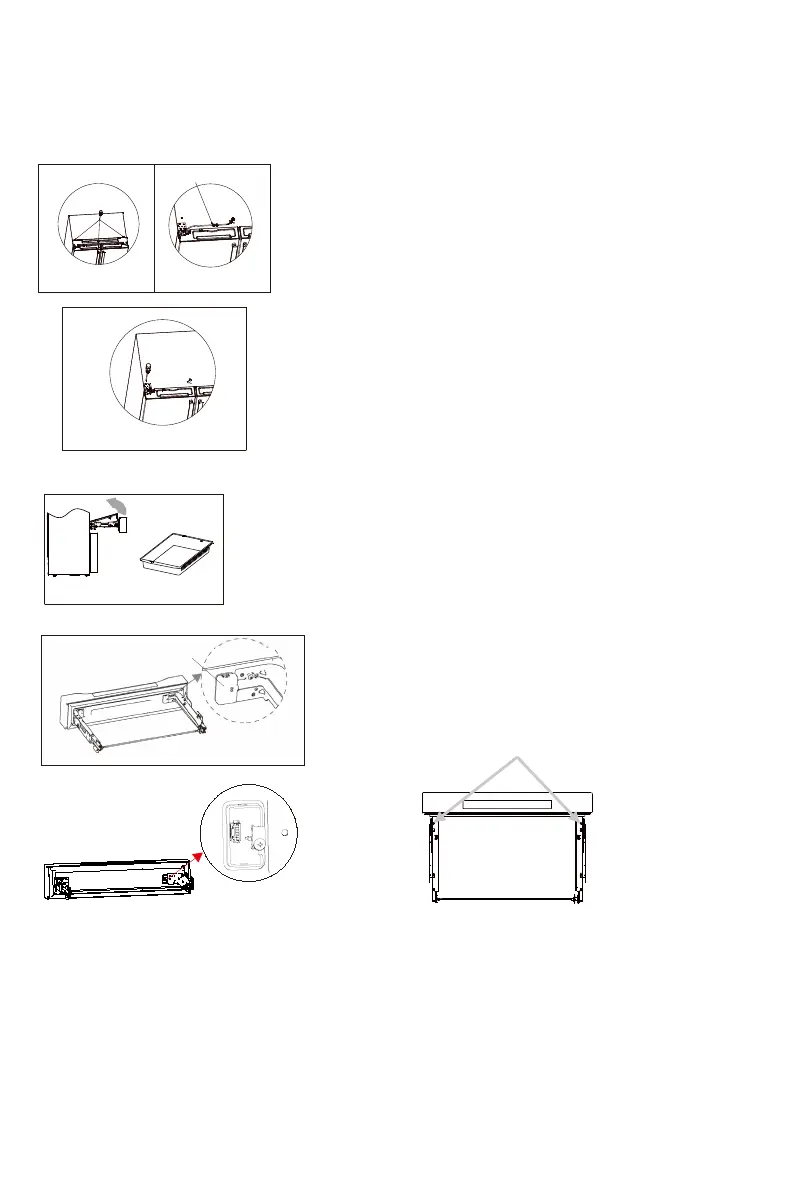

3.4 Disassembly of the refrigerator doors/drawers
Figure 1
Water line locking ring
Figure 2
In some cases you need to remove the fridge doors and drawer doors to move the refrigerator
through a doorway. The doors can be removed by the following steps.
IF NOT NECESSARY, DO NOT REMOVE THOSE DOORS/DRAWERS.
1. Use a screwdriver to remove the 3 screws, and then remove
the upper hinge cover of the left door. See Figure 1.
2. Press the water line locking ring into place, and then pull
the left door water line from the connector by hand. S
ee Figure 2.
Figure 3
3. Use the screwdriver to loosen the 3 screws and 1 earth screw
fixing the upper hinge, remove the plug terminal, and remove
the left door. See Figure 3.
4. The right door has no earth screw. Follow the rest of the steps
for the left door.
Figure 4
Harness
Cover
Figure 5
Figure 6
1. Open the Quattro Temp Zone drawer to the maximum opening.
2. Lift the tail of the tray by holding both sides with both hands.
See Figure 4.
3. Pull the whole tray toward you about 5/8" until the support claws
of the slide rails are separated from the tray.
4. Remove the tray from the side rails.
5. Remove harness cover with a screwdriver or appropriate tool.
See Figure 5.
6. Remove harness clamp with a screwdriver and unplug the
connecting terminal. See Figure 6.
7. Remove the screws on the left and right slideway suppo
rts
and have one person hold the Quattro Temp Zone drawer for support.
8. Lift and angle the Quattro Temp Zone drawer to pull with both
hands to remove.
Screws
To Next Page
