Lower freezer drawer
Open the freezing drawer to the maximum, hold the left and right sides of the lower drawer, lift the front of the drawer
to pull the whole drawer about 9/16" to the outer side of the drawer until the sliding rail support clamp is separated
from the drawer, and rotate the drawer back and up to take it out.
Upper freezer drawer
Open the freezer drawer to the maximum, lift the front of the internal upper freezer drawer, pull the slide rail,
push the drawer forward to separate the drawer from the support clamp of the slide rail. Separate the drawer
on the side from the support clamp of the slide rail with the same method.
Rotate the drawer back and up to remove it after the slide rail support is separated from the drawer.

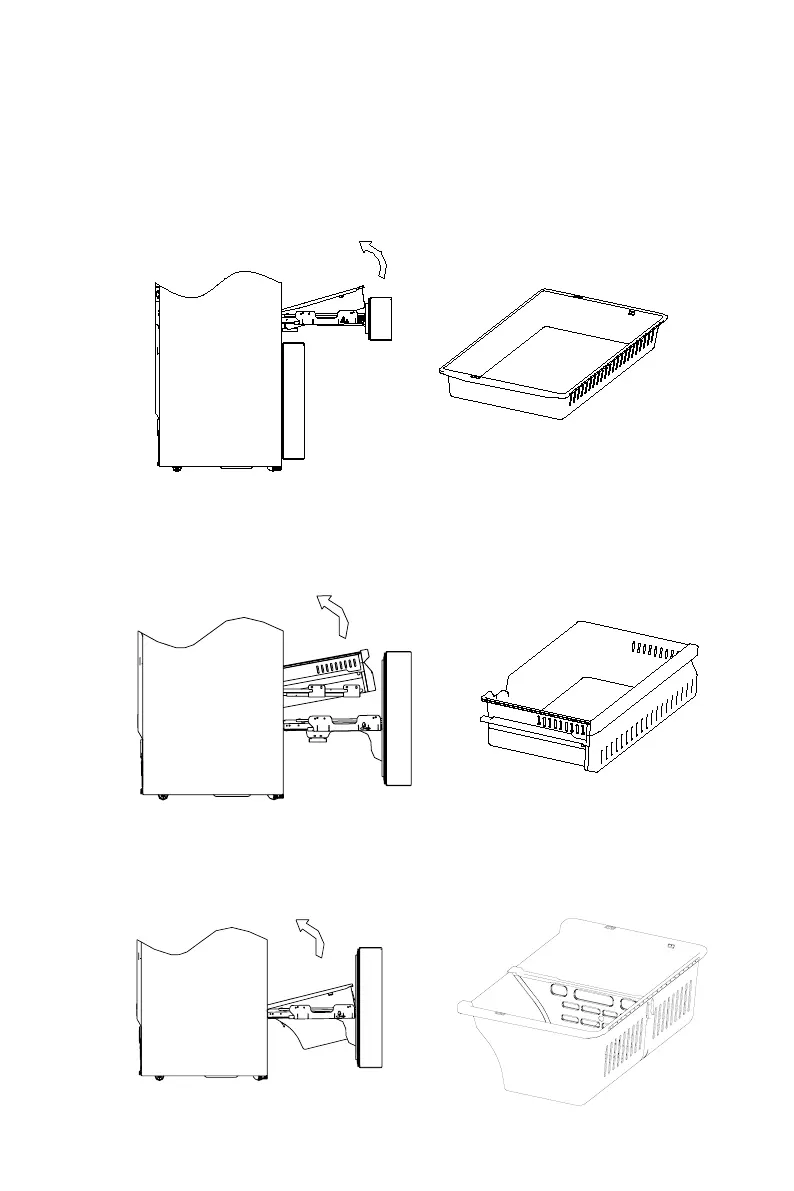

See the figure below.
.
4.3 Cleaning of drawers
Quattro Temp Zone drawer
Open the Quattro Temp Zone drawer to the maximum, hold the left and right sides of the drawer with both hands,
lift the front, exert a little force to pull down the drawer back for about 9/16" until the support claw of the slide rail is s
eparated from the drawer. Then lift the front end of the drawer, hold it and move horizontally to the inside of
the chamber, and then rotate it back and up to remove the drawer. See the figure below.
.
24
