Bestech Electronics BT-6901 - Connection

7

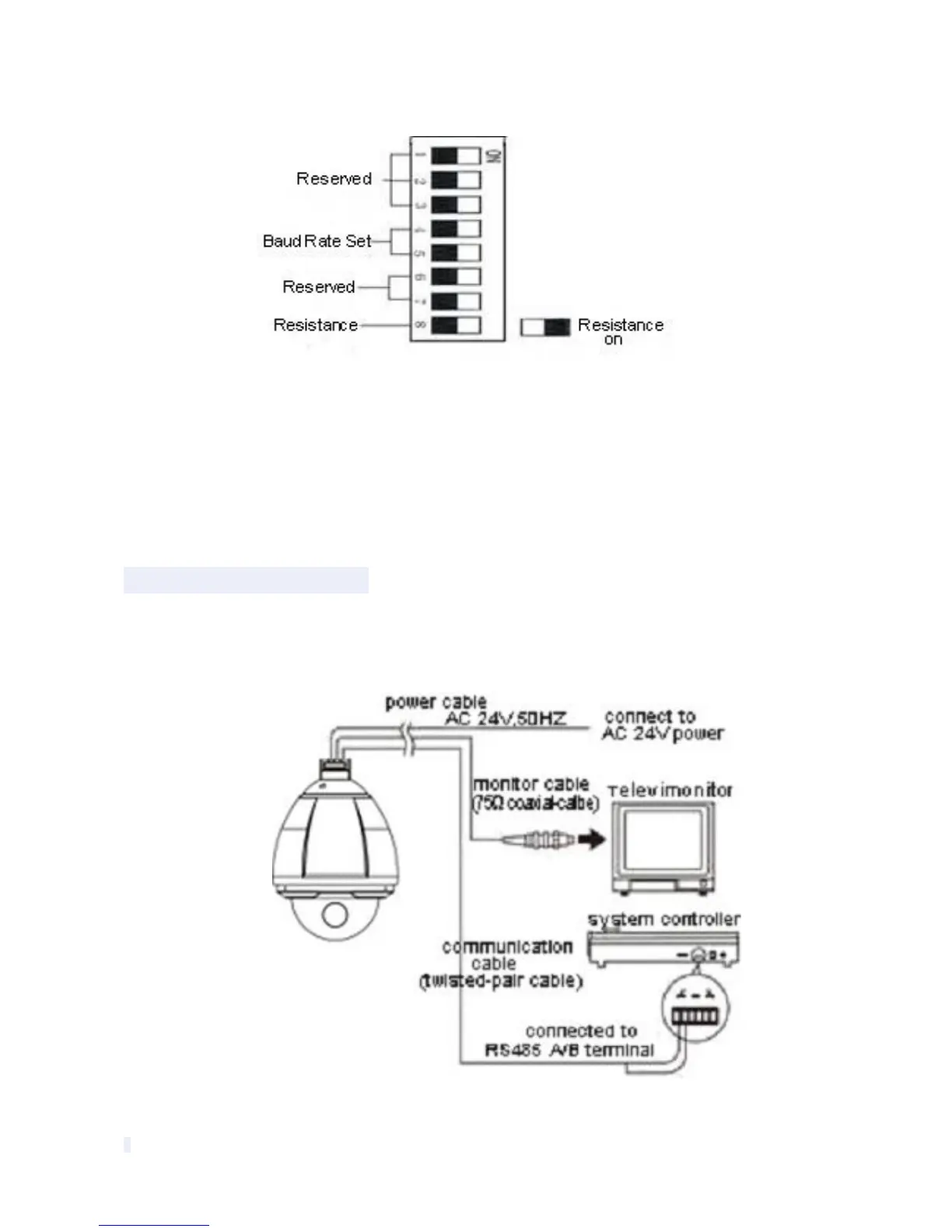

DIP switch SW2 has a control switch of matching resistor. That the 8
th
bit micro-switch turn to
the ON state (set as below) means having connected the matching electricity to RS-485 bus.
2.2 Connection
Connection of RS485
Before connecting, please turn off the power and read carefully the instructions of all connected
devices.
