TrekStep Side-Mount™ – Installation Instructions
Rev. A 0312 75407 / 75408 pg. 5
Beds with Open Rib Beds with Open Rib
Beds without Open Rib

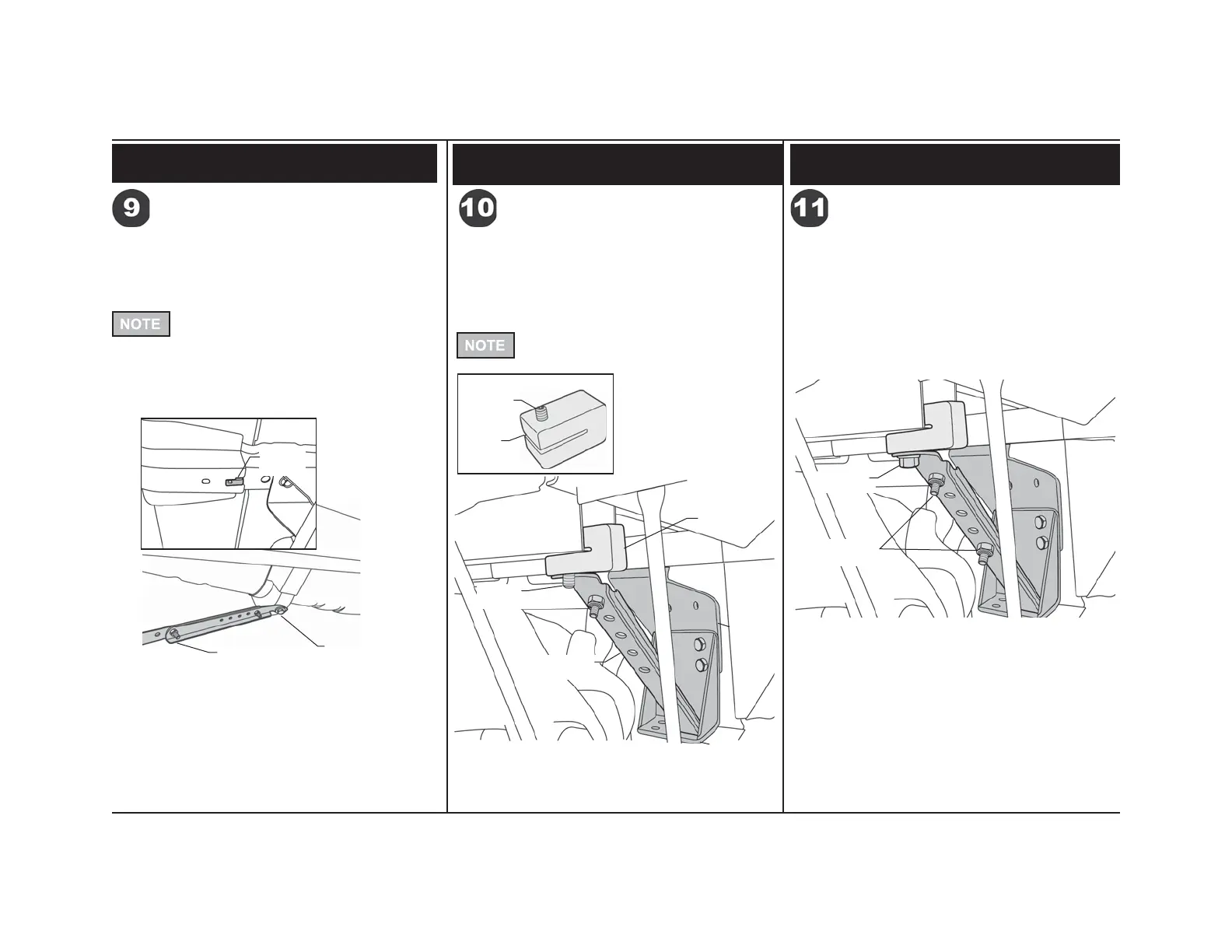

Install Locking BlockSecure Side Bracket to Rib
Put a drop of Loctite on the threads of the M8 x 30
Set Screw and thread it into the hole in the Locking
Block.
Slip the Locking Block over the end of the support
rib that is above the rear tire. Tighten the Set Screw.
Install an M8-1.25 U-Nut into the hole in the rib.
Use an M8-1.25 x 20mm Hex Head Screw and an
M8 Flat Washer to secure the Side Bracket to the
U-Nut.
Adjustable Side
Bracket
Frame
Mount
Locking
Block
Locking
Block
M8 x 30
Set Screw
M8 x 30
Set Screw
Locking Block is only installed on beds
with open ribs.
If there is no hole present in rib, skip to
Step 10.
Secure Side Bracket to
Locking Block
Adjust the Side Bracket so it fi ts over the end
of the M8 x 30mm Set Screw. Use an M8 Lock
Nut to secure the bracket to the Set Screw
and tighten.
Tighten the two (2) M8-1.25 x 20mm Hex
Head Screws and M8-1.25 Nylock Nuts on the
Adjustable Side Bracket.
M8 Hex Screws
and Nylock Nuts
M8 Nylock
Nut
Adjustable Side
Bracket
M8-1.5 x 20mm
Hex Head Screw
Frame Mount
Foot
Bed Rib
M8-1.25
U-Nut
To Next Page
