TrekStep™ – Installation Instructions

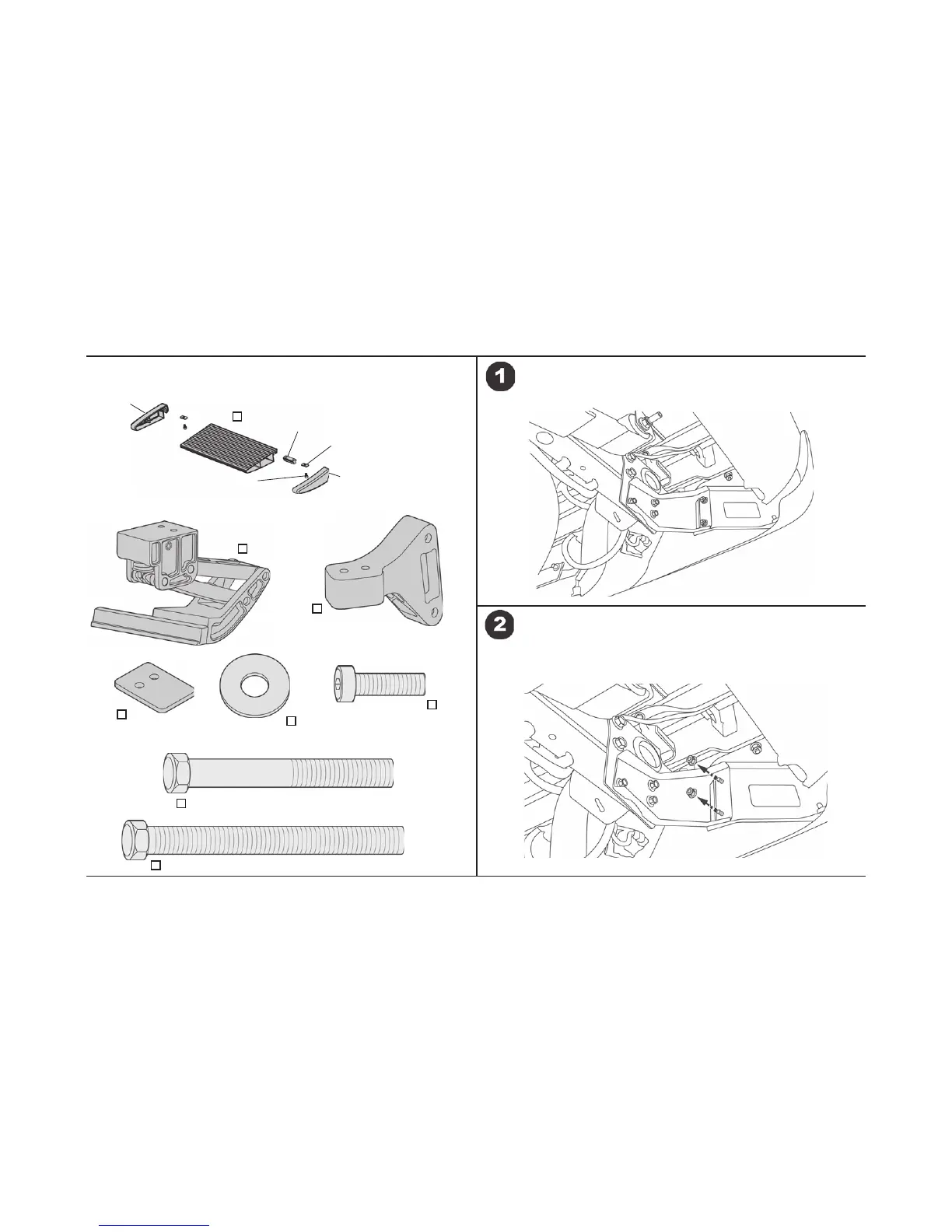

Parts List and Hardware Identifi cation
Locate Rear Bumper Attachment
Install Motor Linkage
Running Board Assembly,
Part Number 476.24, Qty - 1
Left End Cap,
Part Number
460.83, Qty - 1
Right End Cap,
Part Number
460.82, Qty - 1
T-Nut Insert, Part
Number 460.84,
Qty - 2
M6 Nut Plate,
Part Number
460.86, Qty - 2
M6-1.0 x 10mm Socket
Cap Screw, Part Number
460.85, Qty - 2
Linkage Assembly,
Part Number 476.01,
Qty - 1
M10 Washer, Part
Number 473.20, Qty - 2
Locate the rear bumper attachment point on the driver’s side of the vehicle.
Remove the bumper fasteners. Set them aside to be reused.
M6-1.0 x 20 Socket Cap
Screw, Part Number
470.00, Qty - 3
M10-1.5 x 65 Partial Thread Hex Head Screw, Part
Number 476.02, Qty - 2
Mounting Bracket, Part
Number 476.05, Qty - 1
1/4" Spacer, Part
Number 487.64,
Qty - 2
M10-1.5 x 75 Hex Head Screw, Part Number 488.20, Qty - 2
To Next Page
