BETA MARINE KEY SWITCH CONTROL PANELS
NORMAL STARTING AND STOPPING
{
150mm
90mm

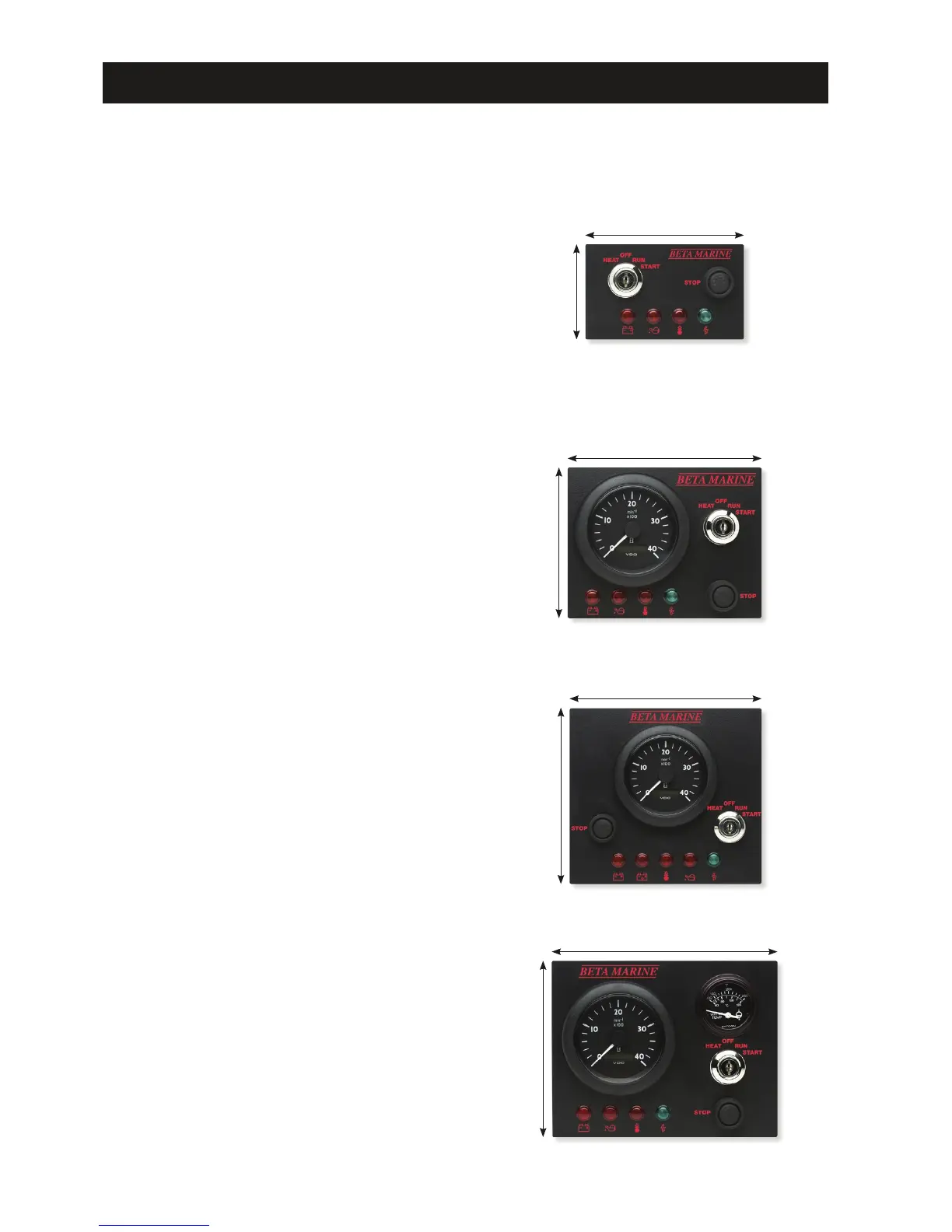

Optional Control Panel ‘A’
Is key switch controlled for engine preheat & start, push
button controlled for engine stop, has a green light
indicator for ‘power on’, red warning light indicators &
audible alarm for low oil pressure, high water temperature
and engine alternator not charging.
180mm
140mm
Standard Heat Exchanger Control Panel ‘ABV’
Is key switch controlled for engine preheat & start, push
button controlled for engine stop, has a tachometer with
running hour recorder, green light indicator for ‘power on’,
red warning light indicators & audible alarm for low oil
pressure, high water temperature and engine alternator not
charging.
Optional Control Panel ‘B’
Is key switch controlled for engine preheat & start, push
button controlled for engine stop, has a tachometer with
running hour recorder and a water temperature gauge.
Green light indicator for ‘power on’, red warning light
indicators & audible alarm for low oil pressure, high water
temperature and engine alternator not charging.
203mm
165mm
Standard Keel Cooled Control Panel ‘AB’ - Beta 14 to
Beta 38
Is key switch controlled for engine preheat & start, push
button controlled for engine stop, has a tachometer with
running hour recorder, green light indicator for ‘power on’,
red warning light indicators & audible alarm for low oil
pressure, high water temperature, domestic and or engine
alternators not charging.
150mm
165mm
