Beta Evo 80 Senior - Electrical diagram

15
1
GENERAL INFORMATION CONOSCENZA DEL VEICOLO
SCHEMA ELETTRICO
Legenda
1 Generatore
2 Bobina A.T.
3 Candela
4 Dispositivo arresto motore a strappo
5 Regolatore
6 Termostato
7 Elettroventola

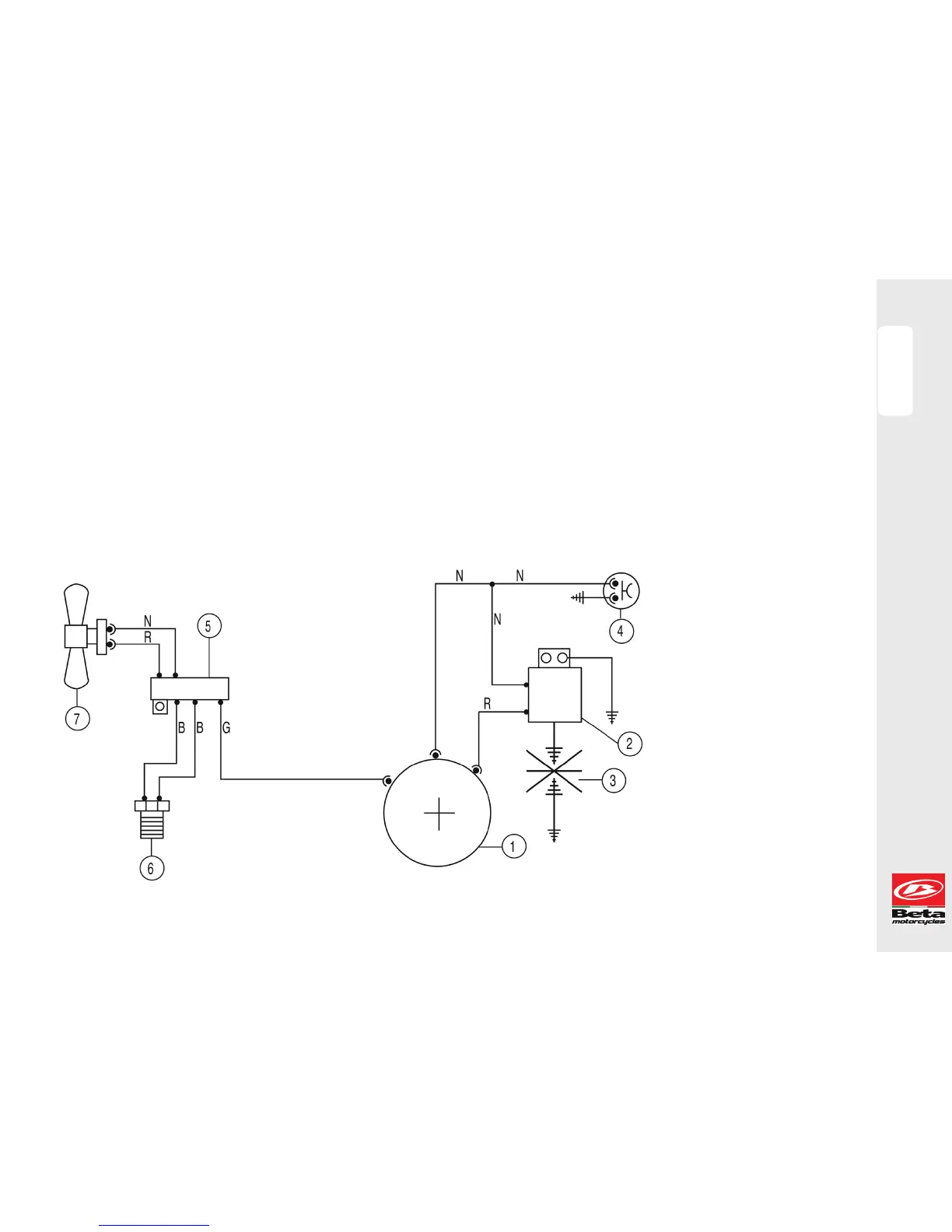

ELECTRICAL DIAGRAM
Legend
1 Generator
2 High Voltage coil
3 Spark plug
4 Tear-off stop device
5 Regulator
6 Thermostat
7 Electric fan
• Ma.....................Marrone/Brown
• N ............................... Nero/Black
• R ............................... Rosso/Red
• G ..........................Giallo/Yellow
• B .....................................Blu/Blue
