MOTARD M4 FRONT BRAKE
Follow these steps to replace the pads:

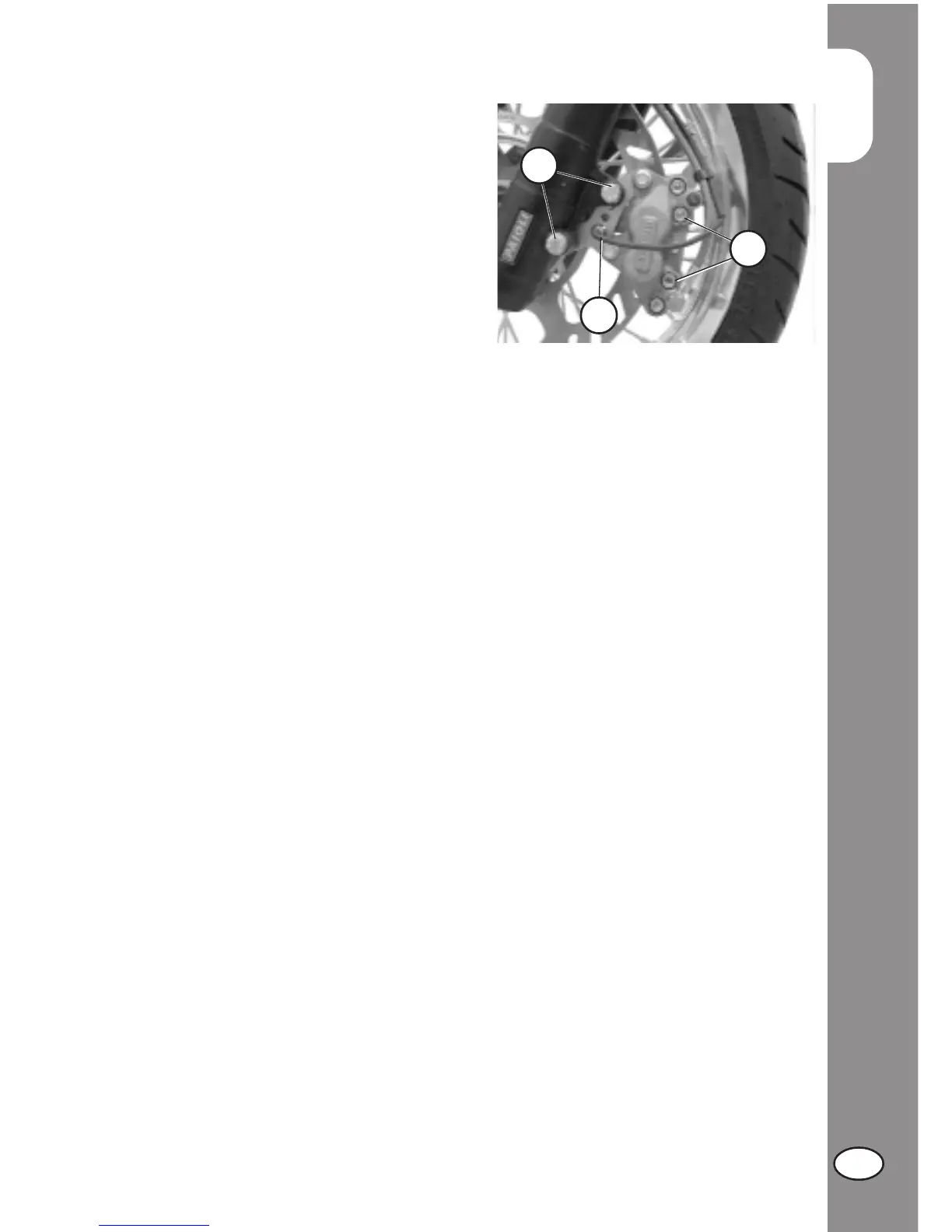

• Disassemble the pincers from the spe-
cial support C by unscrewing the two
screws A.
• Loosen the two screws B.
• Extract the brake pads.
WARNING:
When removing the front brake caliper,
take care not to damage sensor C.
• To refit the parts, follow the reverse pro-
cedure, using blockage-threads on the
screws A.
To avoid braking problems, take special
care in ensuring that the screws are refit-
ted properly.
Whenever the brake disc is removed, ap-
ply blockage-threads to the screws when
refitting.
A
B
C
