1. Place the cool unit with the glass ceramic plate down on a flat surface.

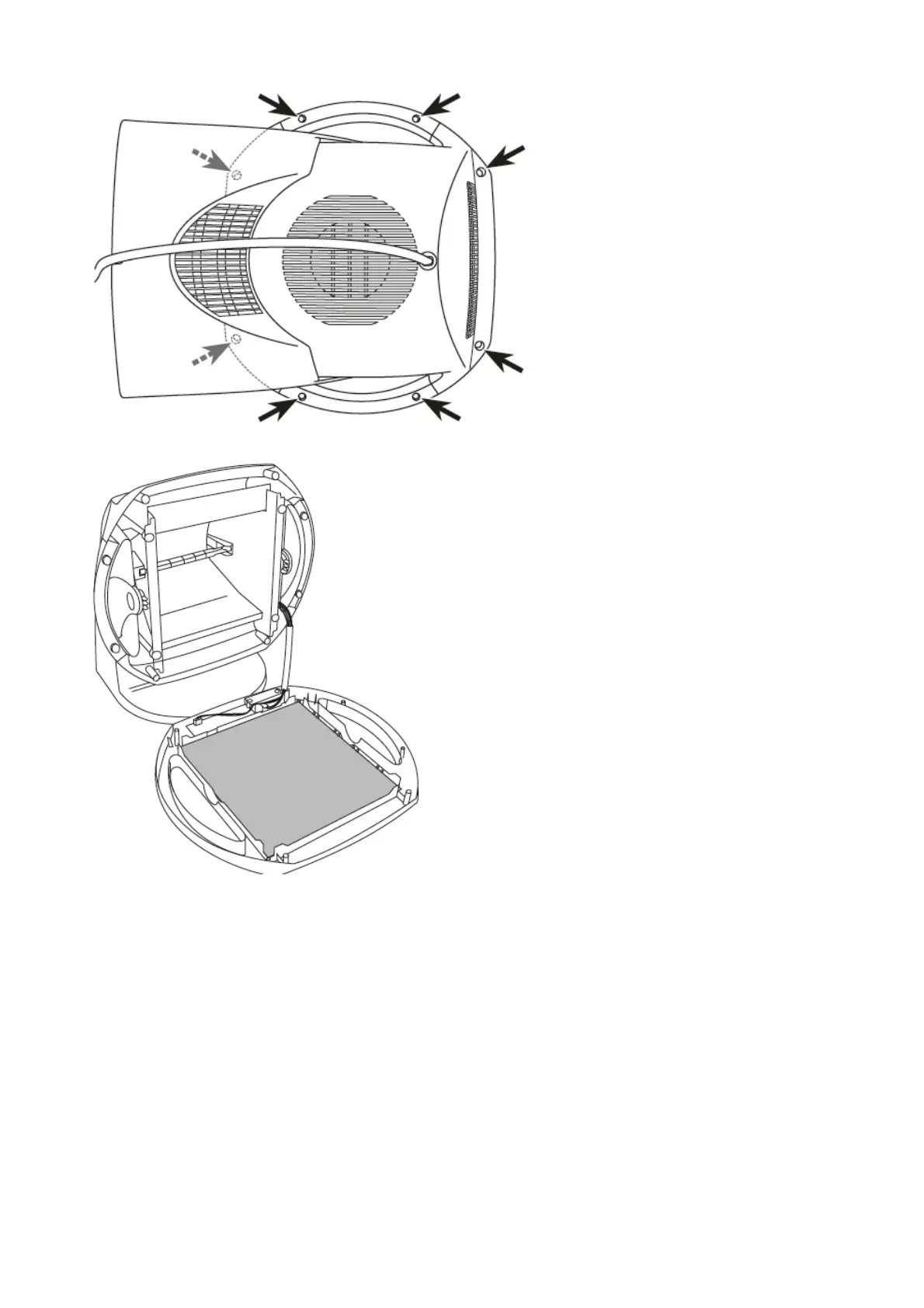

2. Using a suitable crosshead screwdriver, undo the 8 screws in the back panel.
3. Place the body so that the front ofthe glass ceramic plate is lying on the flat surface.
4. Take the cool lamp by the left or right end and press it carefully to the right or left.
5. Now lift it forwards and out of the socket.
NOTE
Use a cloth to hold the new lamp when inserting it, not bare fingers, as the grease on your skin could damage
the coating on the lamp.
6. Insert the new lamp in the socket. The new lamp is inserted in the reverse order to removal.
7. Close the unit again. The unit is closed in the reverse order to opening it.
Make sure that no foreign objects are left in the body of the unit and that nocables become trapped.
Replacement lamp
Type: Halogen lamp 110 V – 130 V / 300 W 118 mm long for R7S socket
Original Order no. 162.783
The service life of the lamp should be approximately 2000 hours
Storage
Remove the plug from the wall outlet and let the unit cool down completely before you move it or pack it away.
