Quinta – Control Unit
12

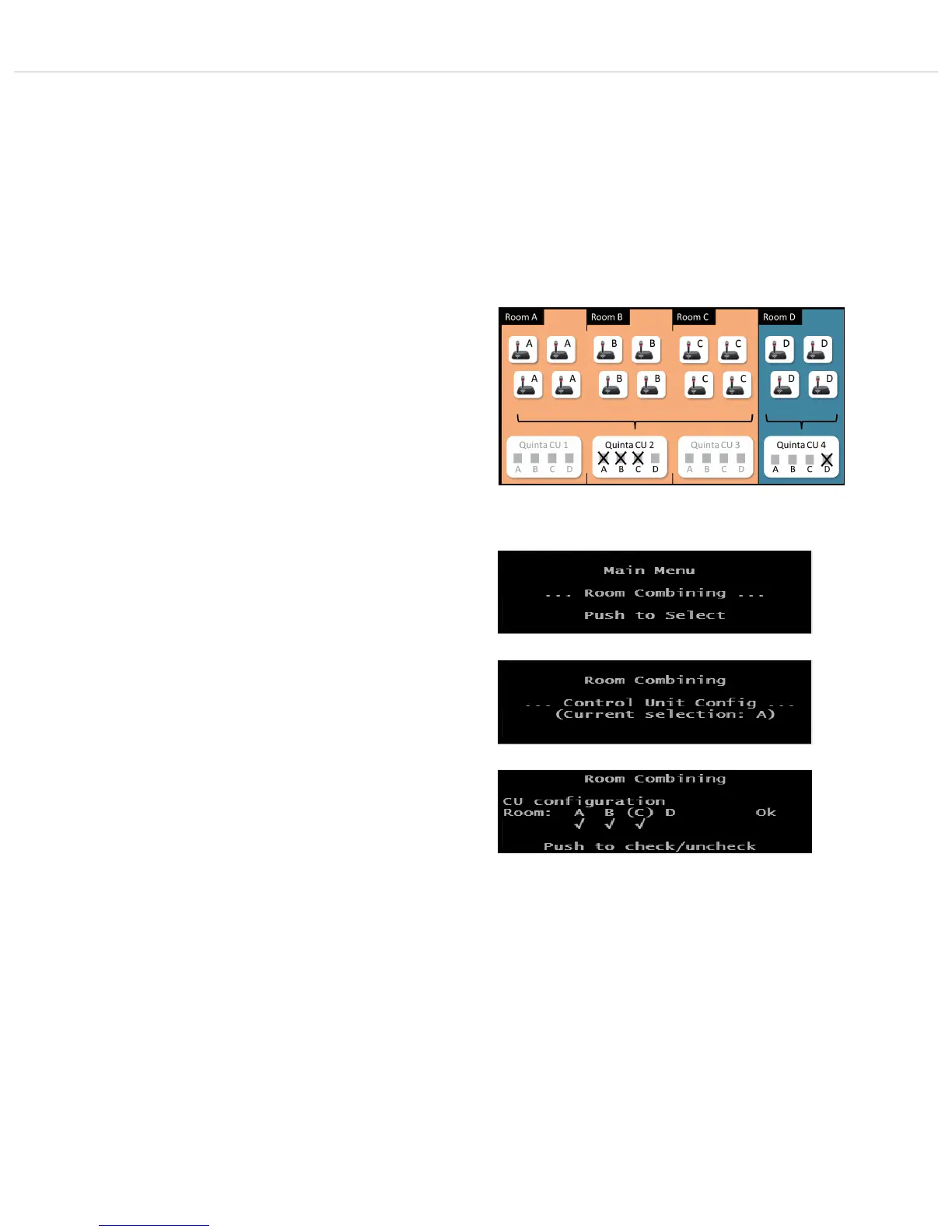

How to combine different rooms – example
• In our example the rooms A, B, C are combined.
In room D a separate system with control unit and microphone
units will be operated.
• In order to avoid interference between the systems, you must turn
off the control units in room A and C or deactive the radio
module of the control unit via the menu of the control unit or
with the Quinta Conference Software via PC by removing all ticks
under the “Room Combining” - “CU configuration” menu item.
• The microphone units which are configured for room A, B, C will
now link to the control unit in room B.
• Press the volume control  approx. 3 seconds until the Quinta CU
control unit displays “Main Menu”.
• Turn the volume control  to the right or left until “Room
Combining” is displayed.
• Press the volume control  to enter the submenu.
• Press the volume control  once again to enter the submen for
the configuration of the Quinta CU control unit. Turn the volume
control  until “(A)” is displayed and press the volume control 
to select “(A)” (a tick is displayed under the “A”). Turn the
volume control  until “(B)” is displayed and press the volume
control  to select “(B)” (a tick is displayed under the “B”). Turn
the volume control  until “(C)” is displayed and press the
volume control  to select “(C)” (a tick is displayed under the
“C”).
• Do not activate room D, as this is a separate system in a separate
room.
• In room A and C you must turn off the control units or deactive
the radio module of the control unit via the menu of the control
unit or with the Quinta Conference Software via PC by removing
all ticks under the “Room Combining” - “CU configuration”
menu item.
• The microphone units which are configured for room A, B, C will
now link to the control unit in room B.
Configuration of control units and microphone units in the
combined rooms A, B, C and in room D
• Important:
– The microphone units in the respective rooms must have a
radio link to the control unit.
– The configuration for room A, B, C or D is stored in the
appropriate microphone units.
– When you have only one Quinta system which you want to
use in one room only, you can keep the factory setting of “A”.
