Quinta – Control Unit
15

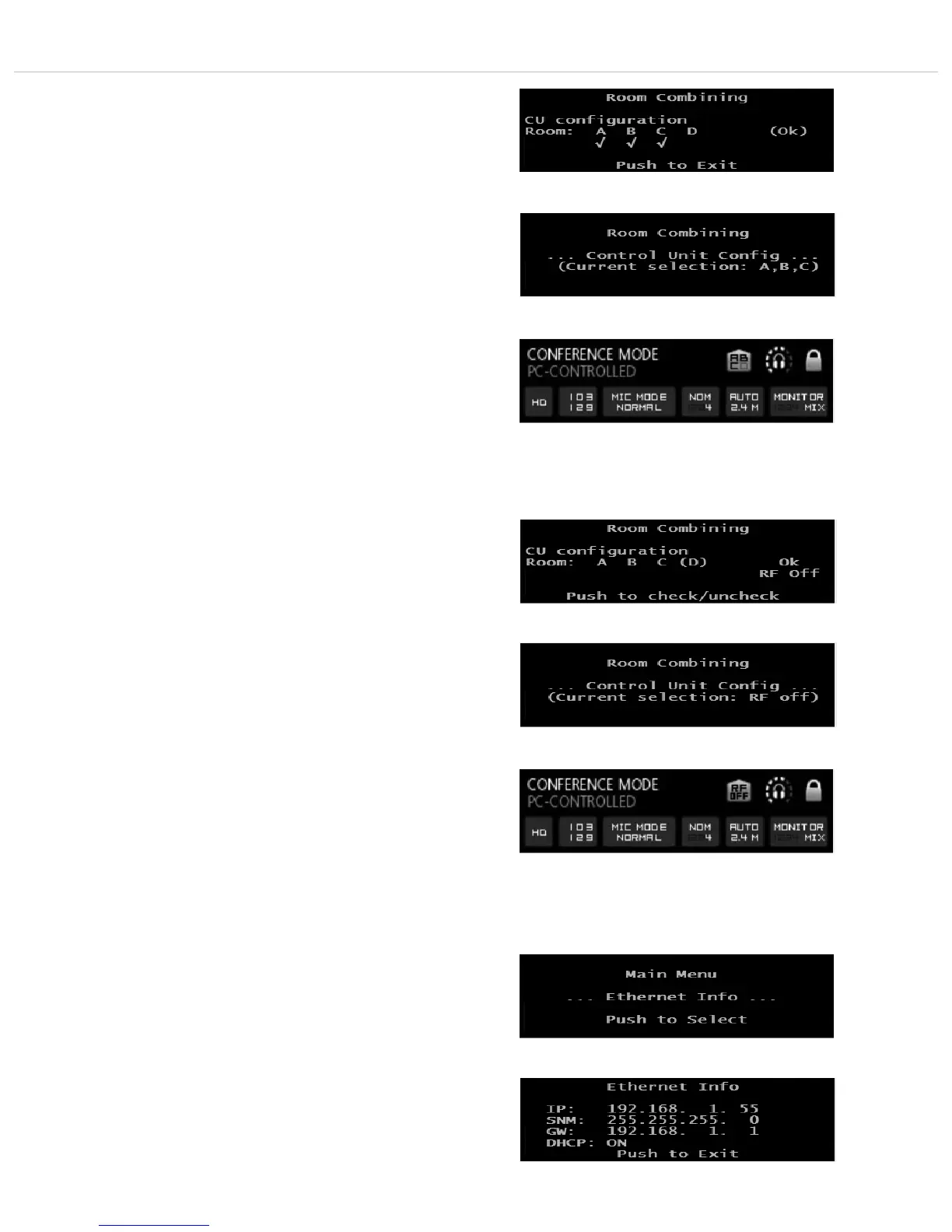

How to deactivate the radio module of the control unit
• If the radio module of the control unit is to be deactivated so
that there is no radio link between microphone units and control
unit, remove all ticks in the menu “Room Combining - CU Con-
figuration”.
• When you enter the “Room Combining” menu item, the line
“Current selection: RF off” is displayed.
• The default screen also displays “RF off”.
2.9.3 Ethernet Info
• Press the volume control  approx. 3 seconds until the
Quinta CU control unit displays “Main Menu”.
• Turn the volume control  to the right or left until “Ethernet Info”
is displayed.
• Press the volume control  to enter the submenu.
• In the display you can now read all information of the Ethernet
connection.
• Press the volume control  to leave the menu.
• The default screen is displayed.
• In order to confirm with “OK” turn the volume control  clockwise
until “(OK)” is displayed. Press the volume control  to
confirm and leave the menu.
• The default screen is displayed.
• When you now enter the “Room Combining” menu item, the line
“Current selection: A, B, C” is displayed.
• The default screen also displays A, B, C.
