Page #11 background imageLoading...
Page #11 background image
Common
3
1
2
5
Normally closed
TRANSMITTER
RECEIVER
1
2
14→
13→
←12
←11
←15
←18

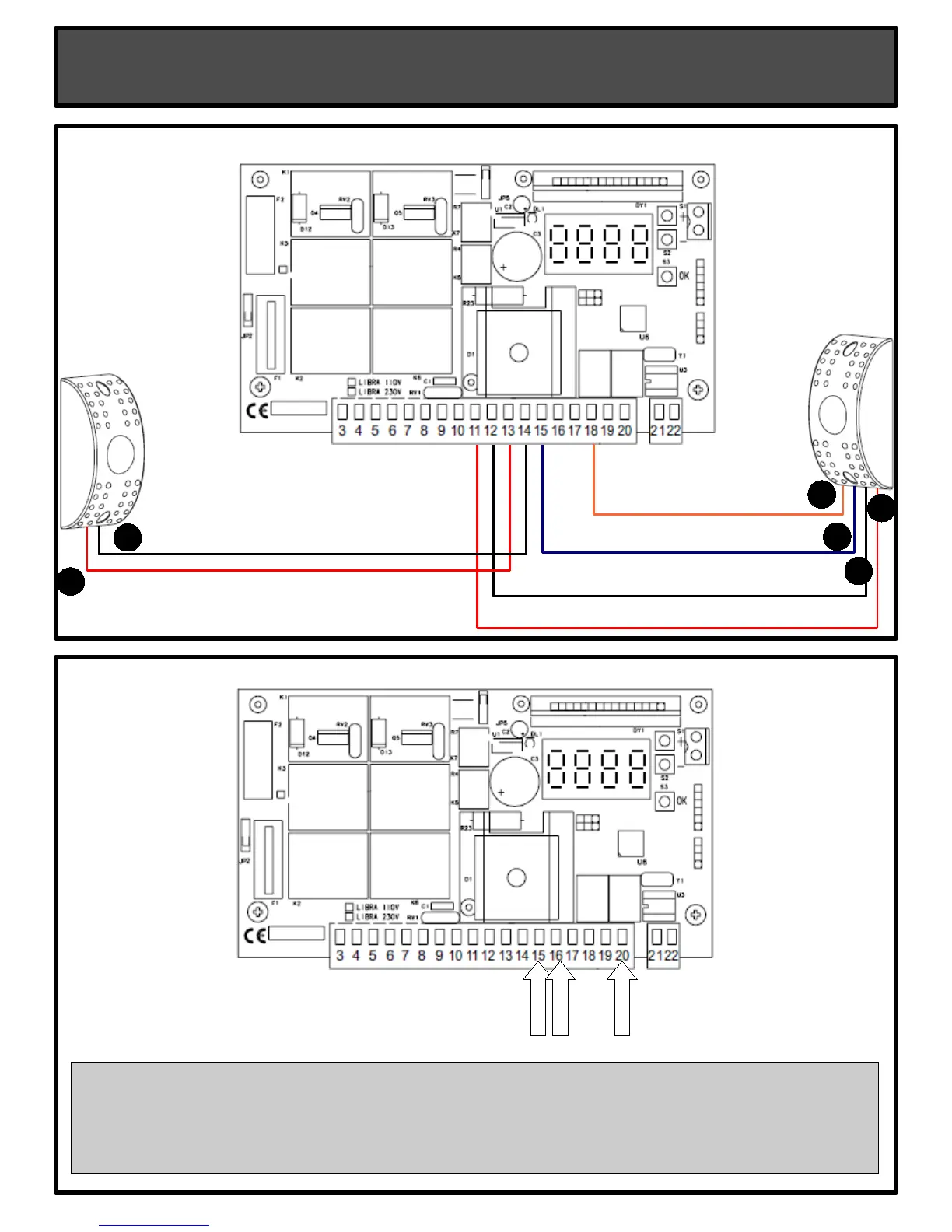

CONTROL INPUTS 11
Opening devices such as exit probes, entry keypads and phone entry systems should be connected to
terminals 15 (common) and 20 (open).
Open and close devices such as single button push-buttons and external radio receivers should be
connected to terminals 15 (common) and 16 (start)
PHOTOBEAM SENSOR WIRING
OPERATING DEVICES
COMMON
START
OPEN
Remove jumper
