BFT PHOBOS N BT Installer's Reference Guide

Normally closed (Yellow)
Common (Blue)
Positive
Negative
EXTERNAL POWER SUPPLY
FOR MAGNETIC LOCK
24V AC/DC
Double throw
Relay
Part No. KRELAY24V
+ (Red)
- (White)
OTHER CONNECTIONS12

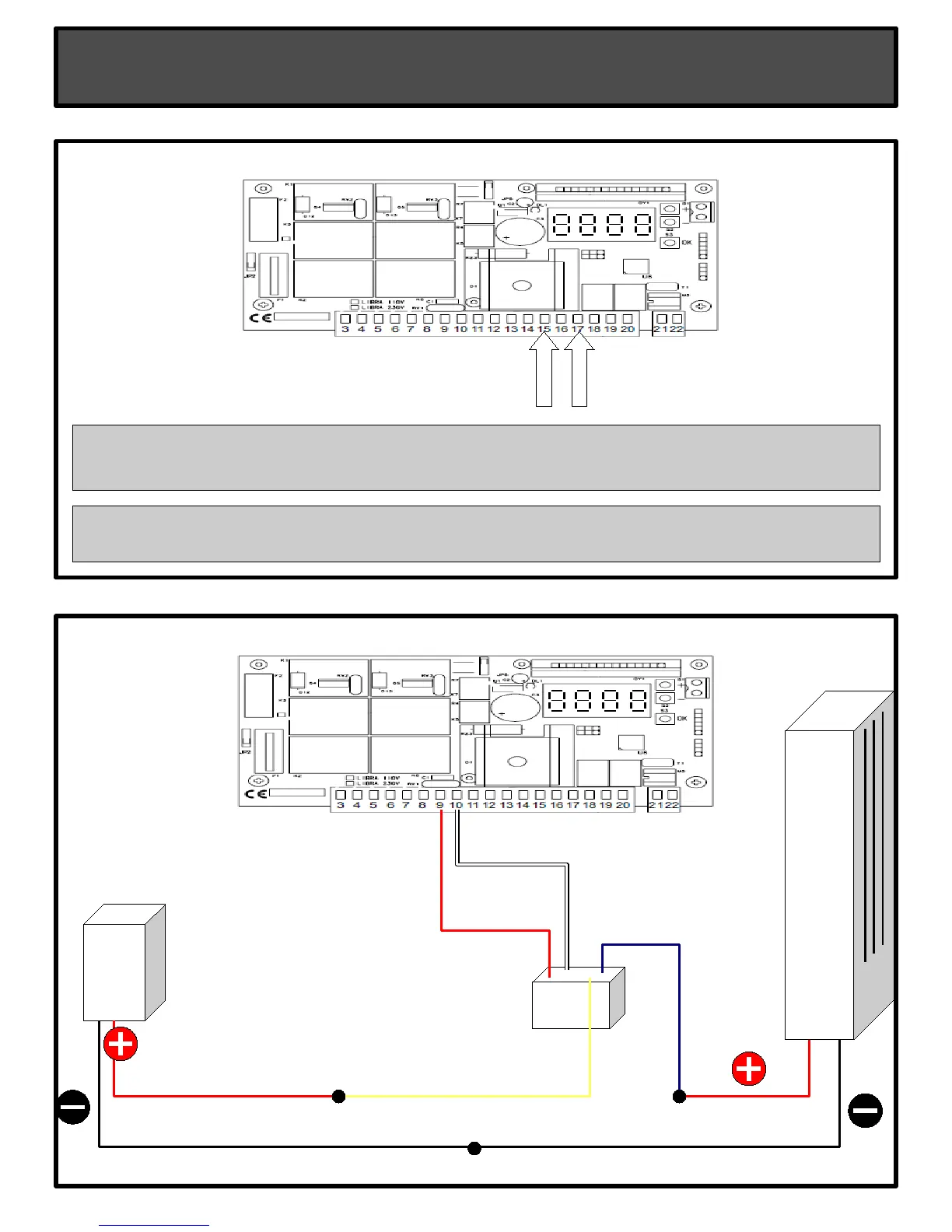

MAGNETIC LOCK WIRING (OPTIONAL)
Stop button or devices should be wired to terminals 15 (common) and 17 (stop). These must be normally
closed contact devices. The factory installed jumper on terminal 17 must be removed.
COMMON STOP
STOP / RESET BUTTON
Remove jumper
UL Block – When the system detects 2 consecutive physical obstructions, it stops the motors and ignores all
additional commands. The activation of the stop input will reset the controller and resume its normal operation.
